GIGABYTE TRX50 AERO D E-ATX sTR5 Motherboard, DDR5, PCIe 5.0

VENDOR: GIGABYTE Mfg Part#: TRX50 AERO D UPC#: 889523040560
1 5
Photo is for illustration purposes only. Actual product may be different.
$844.00
$844.00
Sale Sold out
Shipping calculated at checkout.
  • E-ATX motherboard supporting AMD Ryzen Threadripper PRO 7000 and 7000 series CPUs
  • AMD TRX50 chipset with sTR5 socket and DDR5 RAM up to 1TB
  • 2 x PCIe 5.0 x16 slots, 3 x PCIe x16 total for multi-GPU configurations
  • 4 x PCIe x4 M.2 slots for high-speed SSD storage
  • Integrated Ethernet, USB, DisplayPort, SMA antenna connectors
  • Supports advanced connectivity for performance-intensive workstations

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for AMD Ryzen Threadripper PRO 7000 series, ensuring compatibility with cutting-edge workstation CPUs
  • Supports up to 1TB DDR5 memory for extreme multitasking and computing performance
  • Includes 2 x PCIe 5.0 slots and 4 x M.2 connections for scalable GPU and storage expansion

Product Overview

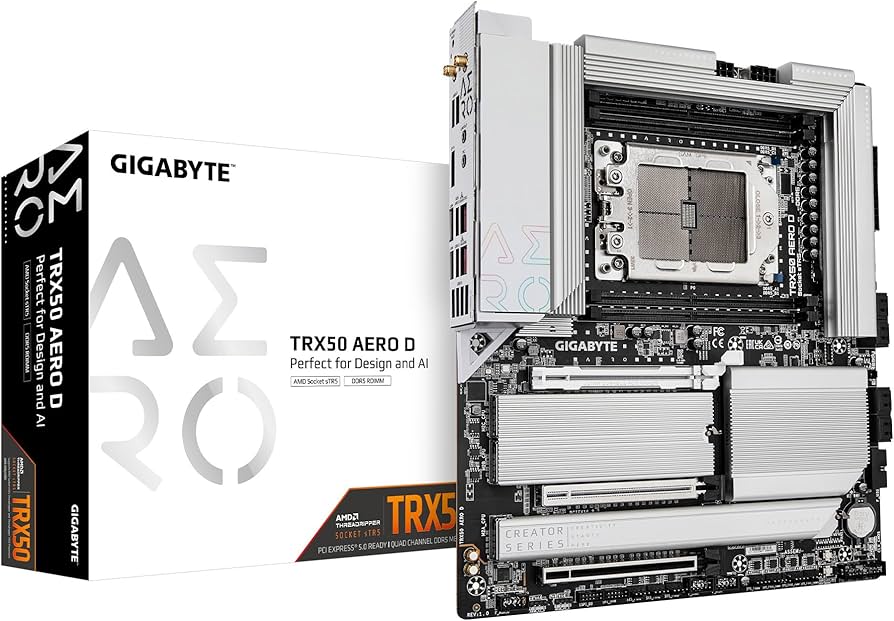

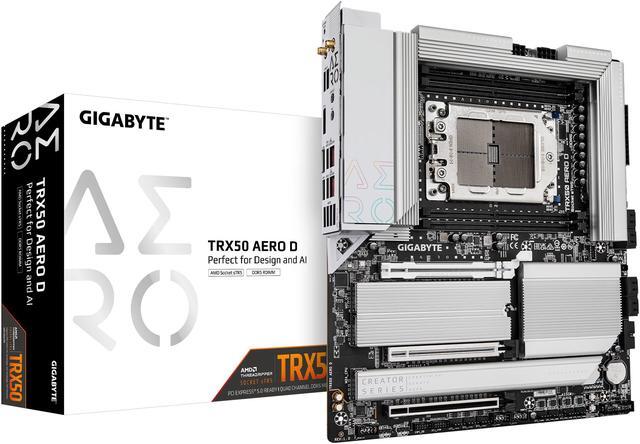

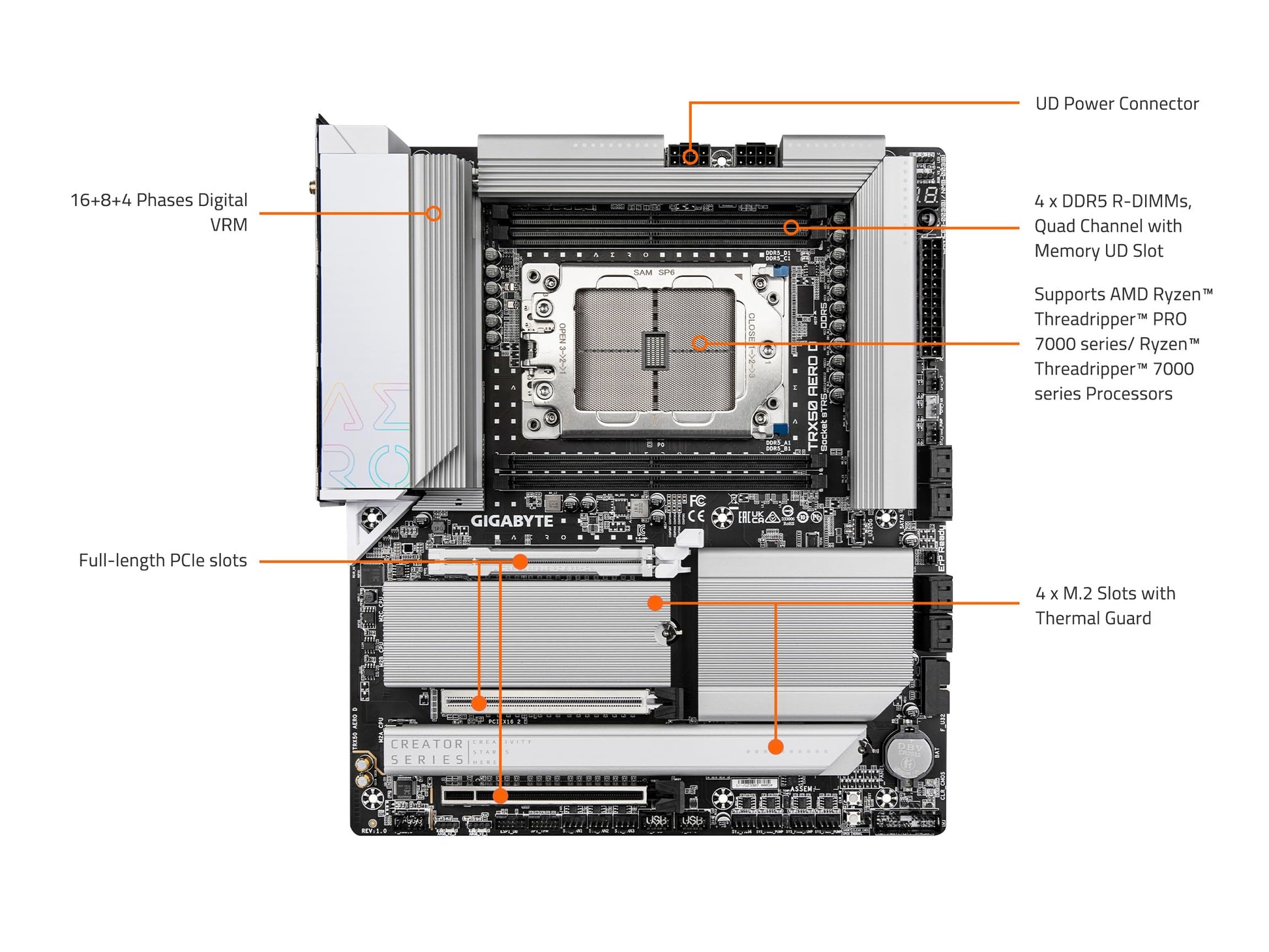

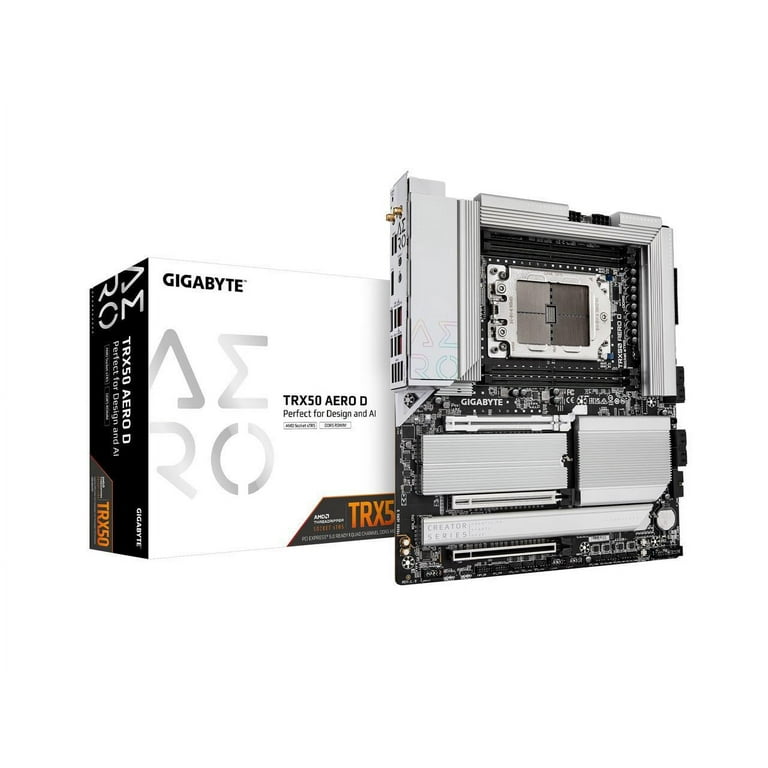

The GIGABYTE TRX50 AERO D is a workstation-class E-ATX motherboard supporting AMD Ryzen Threadripper PRO 7000 and 7000 series processors. Powered by the AMD TRX50 chipset, it features support for up to 1TB DDR5 memory and expansion via three PCIe x16 slots, with two running at PCIe 5.0 speeds. Storage flexibility includes four PCIe x4 M.2 slots, while connectivity is enhanced through Ethernet, USB, DisplayPort, and SMA antenna ports. Engineered for creators and professionals, the TRX50 AERO D delivers thermal stability and performance for high-end computing workloads.

Specifications

Product Overview
Manufacturer GIGABYTE
Model TRX50 AERO D
Product Type Workstation Motherboard
Form Factor E-ATX
Chipset AMD TRX50
Processor Socket sTR5
Compatible Processors AMD Ryzen Threadripper PRO 7000 Series / Ryzen Threadripper 7000 Series
Power Phases 16+3+3 Digital Power Phases
Power Connector 24-pin ATX, 2× 8-pin EPS
UPC 889523040560
Weight 2.82 lbs / 1.28 kg

Interfaces
PCIe x16 Slots 3 x PCIe x16 (2 x PCIe 5.0, 1 x PCIe 4.0)
M.2 Slots 4 x M.2 PCIe 4.0 x4
SATA Ports 4 x SATA III 6.0 Gb/s
USB Ports (Rear) 1 x USB-C 3.2 Gen 2x2, 2 x USB-C 3.2 Gen 2, 6 x USB-A 3.2 Gen 2, 4 x USB-A 3.2 Gen 1
USB Ports (Internal) 1 x USB-C 3.2 Gen 2x2 Header, 2 x USB 3.2 Gen 1 Headers, 2 x USB 2.0 Headers
Display Interfaces 1 x DisplayPort Input for USB-C output
Audio Jacks 5 x 3.5mm audio jacks, 1 x optical S/PDIF out
Ethernet Ports 1 x 10GbE (Marvell AQtion), 1 x 2.5GbE (Intel)

Physical & Environmental
Width 30.5 cm
Depth 26.4 cm
Operating Temperature 0°C to 50°C
Storage Temperature -40°C to 70°C
Operating Humidity 10% to 90% (non-condensing)

Cloud Management & Licensing
Remote Management GIGABYTE Control Center (GCC)
Bundled Software GIGABYTE VisionLINK, EasyTune, System Information Viewer
BIOS AMIBIOS, Dual BIOS with Q-Flash Plus support

Memory
Memory Technology DDR5
Memory Channels Quad Channel
Number of Memory Slots 8 x DIMM
Maximum Memory Supported 1 TB
ECC Support Yes (with ECC RDIMM)
Memory Speed (OC) Up to 5600 MT/s (OC)

Wireless Features
Wireless Standard Wi-Fi 6E (802.11ax)
Bluetooth Bluetooth 5.3
Wi-Fi Antennas 2 x SMA connectors (antenna included)
Frequency Bands 2.4 GHz / 5 GHz / 6 GHz

Compliance & Origin
Country of Origin China
Certifications CE, FCC, BSMI, KC, RCM, cTUVus
RoHS Compliance Yes

Advanced Security Features
TPM Support TPM Header onboard (Discrete TPM module required)
Secure Boot Yes
