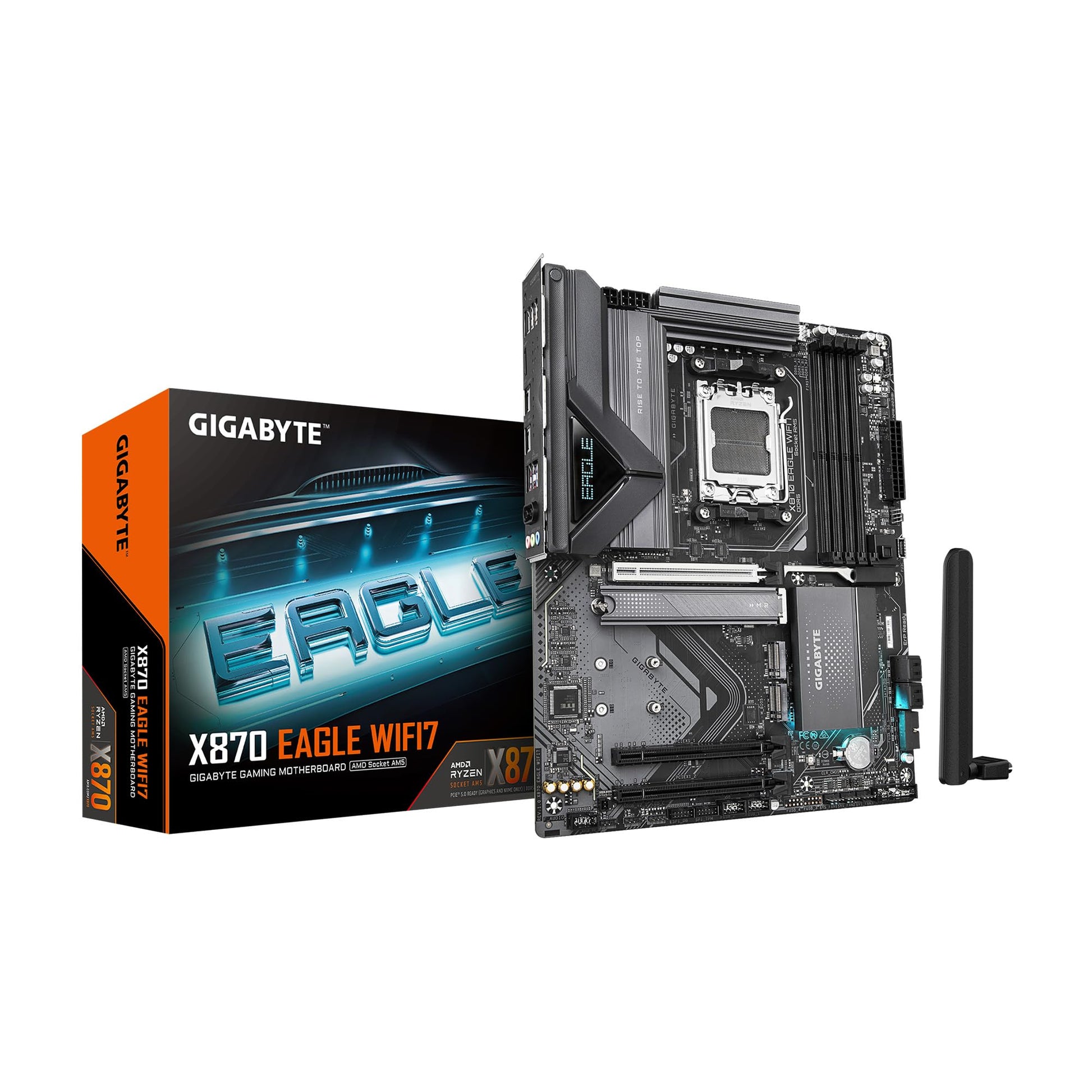

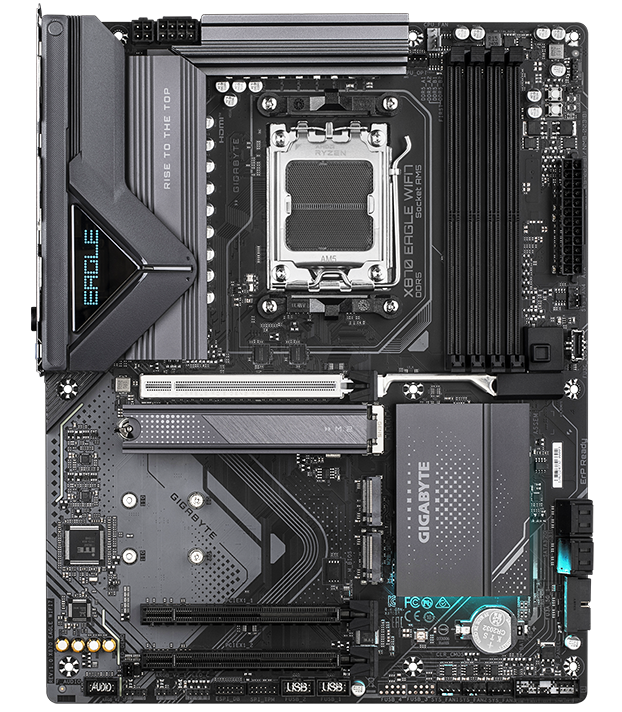

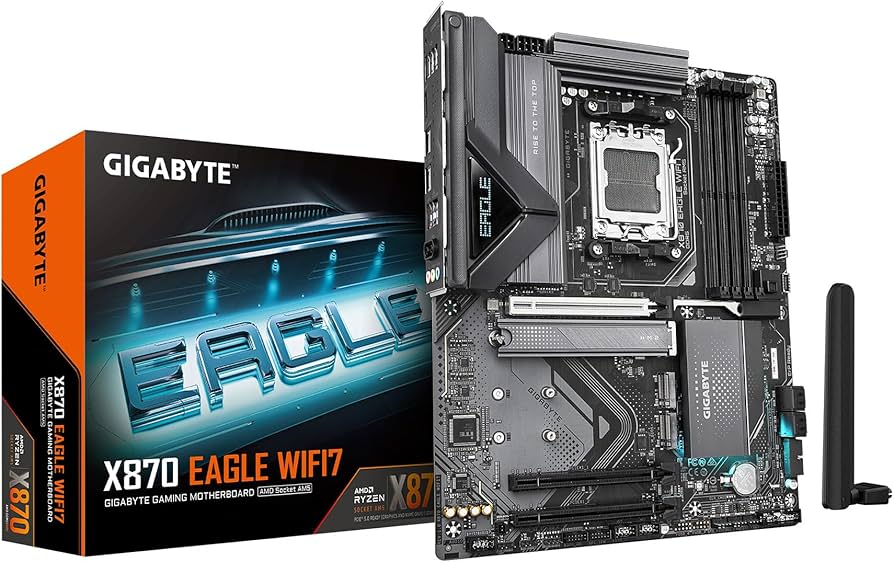

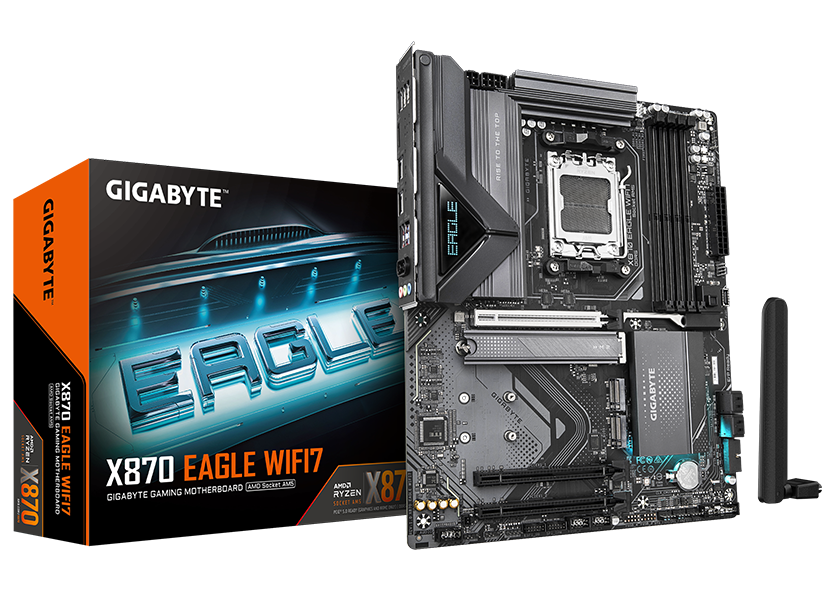

GIGABYTE X870 EAGLE WIFI7 ATX Motherboard, Socket AM5

VENDOR: GIGABYTE Mfg Part#: X870 EAGLE WIFI7 UPC#: 889523045312
1 4
Photo is for illustration purposes only. Actual product may be different.
$351.00
$351.00
Sale Sold out
MSRP: $359.00
Shipping calculated at checkout.
  • ATX form factor (30.5cm x 24.4cm) for expanded configuration
  • AMD X870 chipset with Socket AM5 support
  • Compatible with AMD Ryzen 9000, 8000, and 7000 Series CPUs
  • Integrated High Definition Audio for immersive sound
  • WIFI EZ-Plug for simplified antenna connection
  • BIOS features include multi-theme UI, AIO Fan Control, and Q-Flash Auto Scan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Fully supports the latest AMD Ryzen 9000/8000/7000 Series processors for next-gen computing power.
  • Enhanced user experience with intuitive BIOS tools like Q-Flash Auto Scan and AIO fan control.
  • Streamlined wireless antenna installation with included WIFI EZ-Plug for hassle-free setup.

Product Overview

The GIGABYTE X870 EAGLE WIFI7 ATX motherboard delivers robust features geared toward gaming and productivity users alike. Built around the AMD X870 chipset and Socket AM5, it supports AMD's latest Ryzen 9000, 8000, and 7000 Series processors. The ATX form factor (30.5cm x 24.4cm) provides ample room for expansion, enhanced by essential connectivity features including a 24-pin ATX main power connector and integrated High Definition Audio.

Engineered for ease of use, the X870 EAGLE WIFI7 includes a quick-install WIFI EZ-Plug feature for antenna setup, BIOS UI with features such as AIO Fan Control and Q-Flash Auto Scan, and a layout that complements modern builds. Aimed at users looking to leverage next-generation wireless capability and BIOS manageability, this board ensures a streamlined experience for Windows 11 64-bit systems.

Ideal for custom PC builders and power users, the X870 EAGLE WIFI7 provides a reliable foundation for gaming rigs and professional systems where performance and usability drive ROI.

Specifications

Product Overview
Product Type Motherboard
Form Factor ATX
Chipset AMD X870
Processor Socket Socket AM5
Supported Processor Series AMD Ryzen 9000 / 8000 / 7000 Series
Audio High Definition Audio
Power Connector 1 x 24-pin ATX main power connector
Operating System Support Windows 11 64-bit
Dimensions (WxD) 30.5 cm x 24.4 cm

Wireless Features
Wireless LAN Intel Wi-Fi 7
Wi-Fi Antenna Connectors 2 x screw-on SMA connectors (WIFI EZ-Plug)
Bluetooth Bluetooth 5.3

Compliance & Origin
Country of Origin China
RoHS Compliance Yes
FCC Certification Yes
CE Certification Yes
WEEE Compliance Yes

Advanced Security Features
TPM Support Discrete TPM header available (Supports 2.0)
Secure Boot Yes

Interfaces
PCI Express x16 Slots 2
PCI Express x1 Slots 1
M.2 Slots 4 x M.2 connectors (PCIe Gen4/Gen5)
SATA Ports 4 x SATA III 6Gb/s
USB 3.2 Gen 2 Type-C (Rear) 1 x USB-C 10Gb/s
USB 3.2 Gen 2 Type-A (Rear) 3 x USB-A 10Gb/s
USB 3.2 Gen 1 Ports 4
USB 2.0 Ports 4
LAN Port 1 x 2.5Gb Ethernet (RJ-45)
Audio Jacks 5 x Audio jacks + 1 x Optical S/PDIF out
HDMI Output 1 x HDMI 2.1
DisplayPort Output 1 x DisplayPort 1.4

Physical & Environmental
Motherboard Dimensions 30.5 cm x 24.4 cm
Operating Temperature Range 0°C to 50°C
Storage Temperature Range -40°C to 70°C
Operating Humidity 10% to 90% (non-condensing)

Cloud Management & Licensing
BIOS Features Q-Flash Auto Scan, graphical interface, multi-theme UI
Fan Control Software AIO Fan Control
