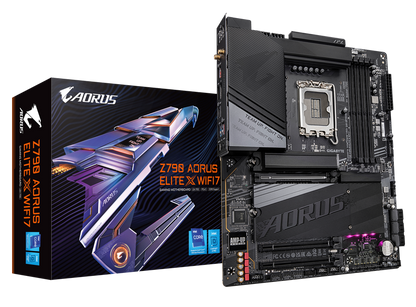

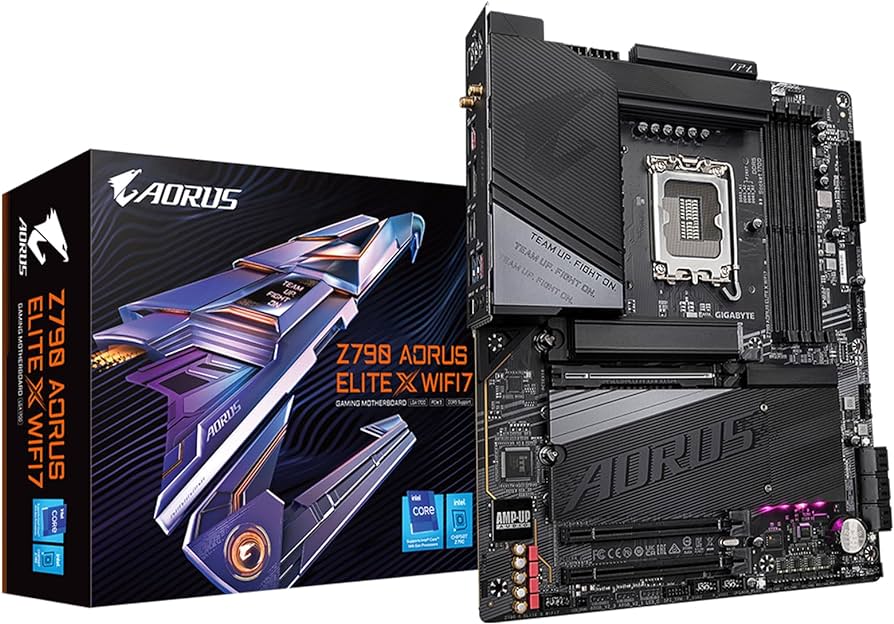

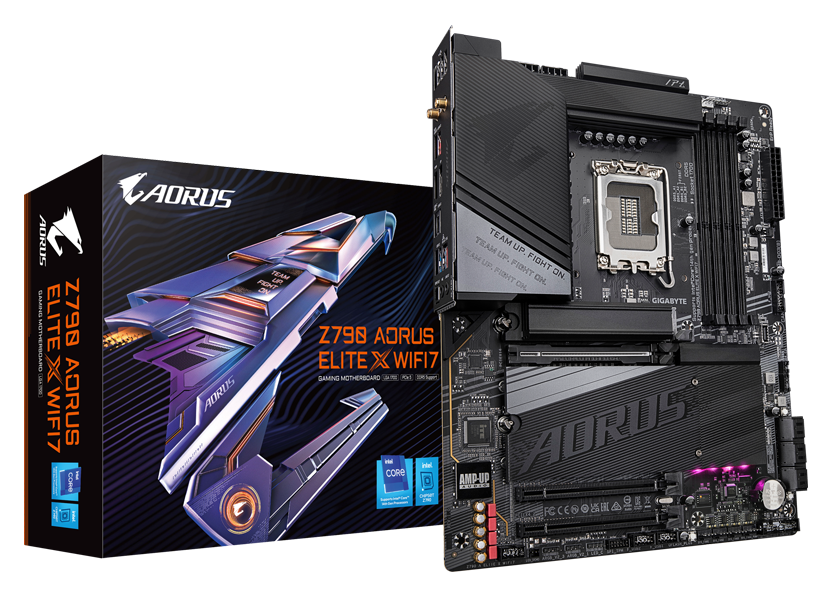

GIGABYTE Z790 AORUS ELITE X WIFI7 ATX LGA1700 DDR5 Motherboard

VENDOR: GIGABYTE Mfg Part#: Z790 AORUS ELITE X WIFI7 UPC#: 889523039298
1 4
Photo is for illustration purposes only. Actual product may be different.
$352.00
$352.00
Sale Sold out
MSRP: $393.00
Shipping calculated at checkout.
  • Supports Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors
  • Intel Z790 chipset with LGA1700 socket compatibility
  • DDR5 memory support for high-speed system performance
  • ATX form factor with dimensions 30.5 cm x 24.4 cm
  • Integrated Intel 2.5GbE LAN chip offering 2.5 Gbps Ethernet
  • USB controller interfaces for connectivity and peripheral integration

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Compatible with the latest Intel processor generations, ensuring future-proof CPU support.
  • High-speed DDR5 memory compatibility delivers fast data transfers for gaming and multitasking.
  • Built-in 2.5GbE LAN provides reliable, high-performance networking essential for modern workloads.

Product Overview

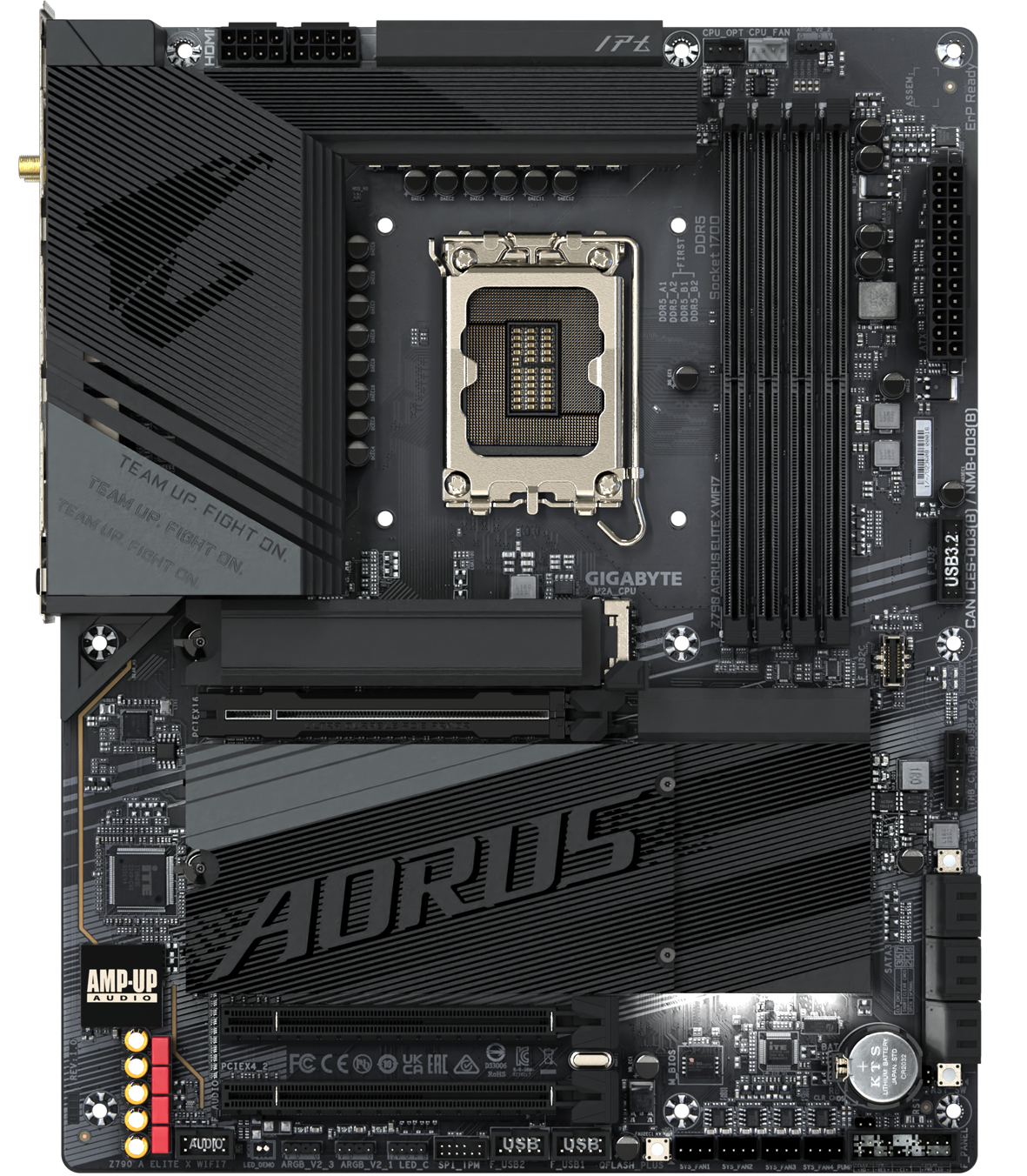

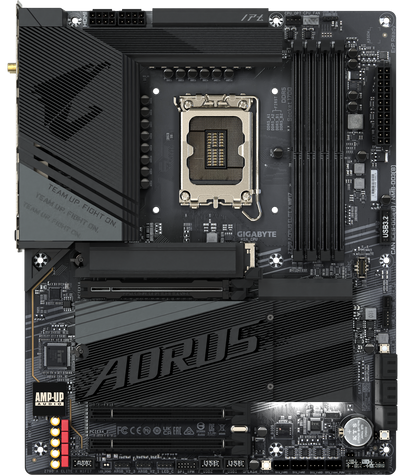

The GIGABYTE Z790 AORUS ELITE X WIFI7 is a high-performance ATX motherboard built on the Intel Z790 chipset, designed for LGA1700 socket CPUs from Intel's 14th, 13th, and 12th generations. It supports DDR5 memory and features 2.5GbE LAN connectivity via Intel's chipset for better networking speeds. The board includes multiple USB controller interfaces for peripheral support. With dimensions of 30.5 cm by 24.4 cm and manufactured in China, it fits a variety of standard desktop cases. While some detailed chipset and expansion slot specs are lacking, this board remains a strong choice for power users and performance builds.

Specifications

Product Overview
Manufacturer GIGABYTE
Model Z790 AORUS ELITE X WIFI7
Part Number Z790 AORUS ELITE X WIFI7
UPC 889523039298
Product Type Motherboard
Form Factor ATX
Chipset Intel Z790
CPU Socket Type LGA1700
Compatible Processors Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron Processors
Power Connectors 1 x 24-pin ATX, 2 x 8-pin ATX 12V
Power Requirements Standard ATX power supply

Wireless Features
Wi-Fi Standard Wi-Fi 7 (802.11be)
Bluetooth Version Bluetooth 5.3
Wireless Antennas 2 External Antennas Included
Wireless Bands 2.4 GHz, 5 GHz, 6 GHz

Compliance & Origin
Country of Origin China
Compliance Standards CE, FCC, BSMI, RCM, cTUVus
RoHS Compliant Yes

Advanced Security Features
TPM Support TPM header for discrete module
Secure Boot Yes
UEFI BIOS Security Password Protection

Interfaces
Total USB Ports 16
Rear USB Ports 1 x USB-C 3.2 Gen 2x2, 2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0
Internal USB Headers 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 1, 2 x USB 2.0
Ethernet Port Speed 2.5 Gbps
Ethernet Controller Intel 2.5GbE LAN chip
Audio Ports 5 x Analog Audio Jacks, 1 x Optical S/PDIF Out
Audio Codec Realtek ALC1220-VB
HDMI Ports 1 x HDMI 2.0
Expansion Slots 1 x PCIe 5.0 x16, 1 x PCIe 3.0 x16 (x4 mode), 2 x PCIe 3.0 x1
Storage Interfaces 4 x SATA 6Gb/s, 4 x M.2 (1 x PCIe 5.0 x4, 3 x PCIe 4.0 x4)
RAID Support RAID 0, 1, 5, and 10 for SATA; RAID 0, 1, and 5 for NVMe

Physical & Environmental
Width 30.5 cm
Depth 24.4 cm
Operating Temperature 0°C to 60°C
Storage Temperature -40°C to 70°C
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing

Cloud Management & Licensing
Firmware Update Interface Q-Flash Plus (BIOS flash without CPU or RAM)
BIOS Features Advanced UEFI DualBIOS, Q-Flash, @BIOS
RGB Software RGB Fusion
OS Compatibility Windows 11, Windows 10 64-bit
