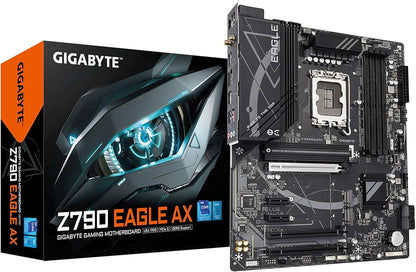

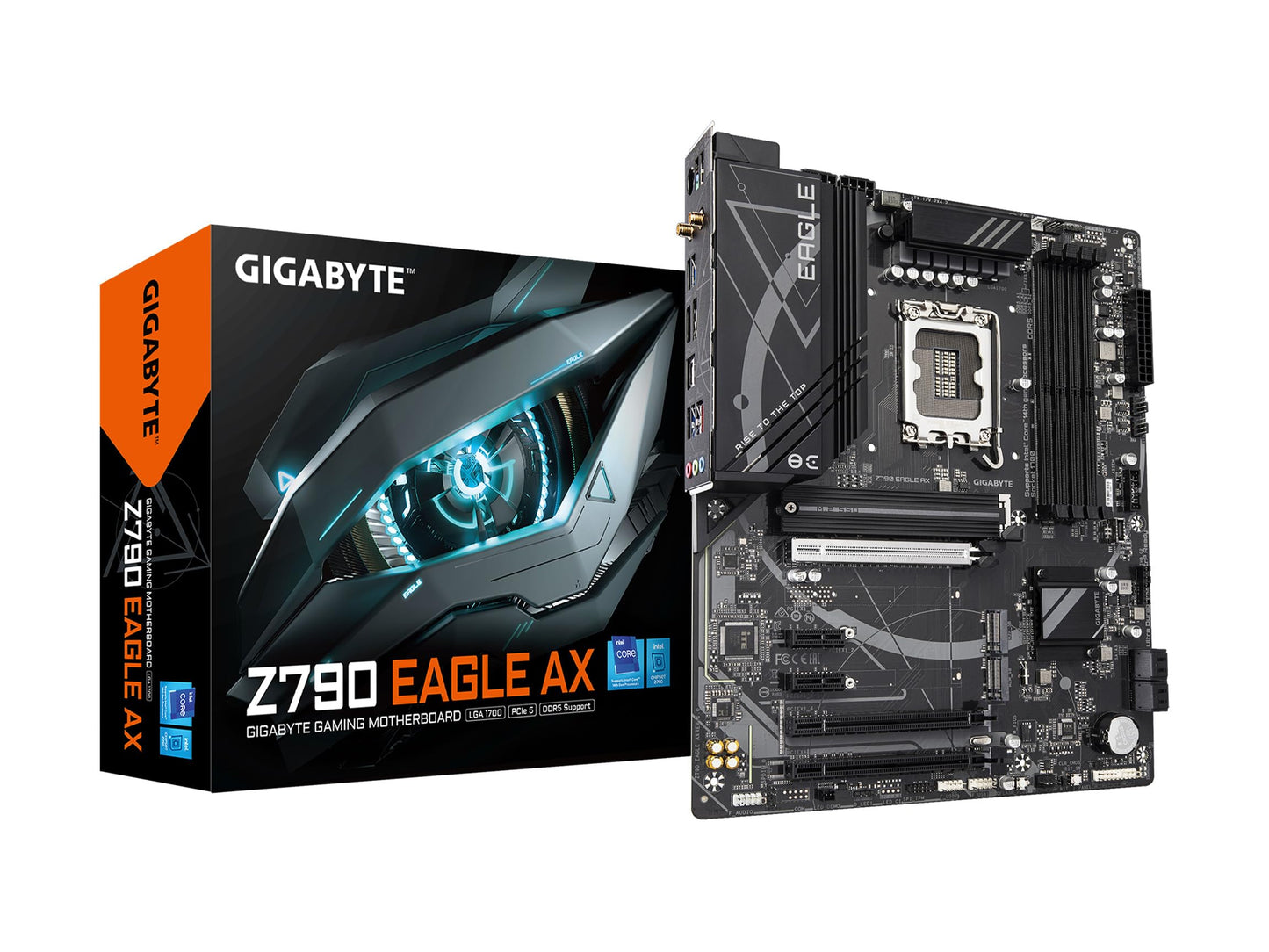

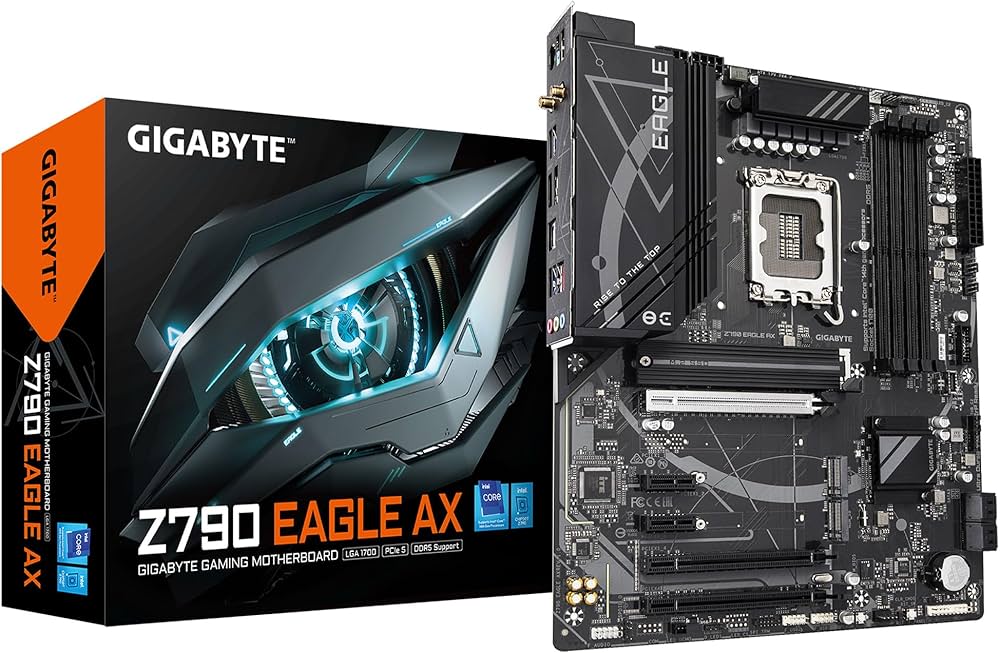

GIGABYTE Z790 EAGLE AX LGA1700 ATX Motherboard, DDR5, Wi-Fi 6E, PCIe 5.0

VENDOR: GIGABYTE Mfg Part#: Z790 EAGLE AX UPC#: 889523042120
1 5
Photo is for illustration purposes only. Actual product may be different.
$257.00
$257.00
Sale Sold out
MSRP: $295.00
Shipping calculated at checkout.
  • Intel Z790 chipset with LGA1700 socket supporting 12th, 13th, and 14th Gen Intel processors
  • Supports up to 192GB DDR5 RAM with speeds up to 7600 MHz (O.C.)
  • Three M.2 NVMe slots and four SATA-600 ports with RAID 0/1/5/10 support
  • 2.5 GbE LAN, Wi-Fi 6E, and Bluetooth 5.3 for high-speed connectivity
  • PCIe 5.0 x16 and PCIe 4.0/3.0 slots for advanced GPU/storage expansion
  • DIY-friendly features including Q-Flash Plus, EZ-Latch, VRM and M.2 heatsinks

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Future-proof builds benefit from PCIe 5.0 and DDR5 support, enabling compatibility with next-gen GPUs and high-speed memory modules
  • Integrated Intel Wi-Fi 6E and 2.5GbE Ethernet ensure seamless, lag-free networking for gaming or heavy data workloads
  • DIY install is simplified with features like Q-Flash Plus BIOS update, tool-less M.2 EZ-Latch, and thermal guards, reducing setup time and heat risk

Product Overview

The GIGABYTE Z790 EAGLE AX is a feature-rich ATX motherboard using the Intel Z790 chipset and LGA1700 socket, compatible with Intel 12th–14th Gen CPUs. It supports up to 192GB DDR5 RAM across four DIMMs and offers advanced PCIe 5.0 and 4.0 expansion. Storage is handled by three M.2 slots with RAID support and heatsinks for optimal cooling. It includes Wi-Fi 6E, Bluetooth 5.3, and 2.5 GbE LAN for comprehensive connectivity. Key I/O includes USB 3.2 Gen2x2 Type-C, 8-channel HD Audio, and HDMI. Designed for builders, it’s equipped with Q-Flash Plus, EZ-LATCH, and thermal guards to simplify installation and ensure long-term stability. Ideal for high-performance setups and expansion-heavy workstations.

Specifications

Product Overview
Product Type Motherboard - ATX
Chipset Intel Z790
CPU Socket LGA1700
Supported CPU Series Intel 12th, 13th, and 14th Gen Core / Pentium Gold / Celeron
Maximum Supported CPUs 1
Form Factor ATX
Power Connectors 24-pin main power, 2 x 8-pin ATX12V
BIOS Type AMI UEFI BIOS
BIOS Features WfM 2.0, UEFI BIOS, SMBIOS 2.7, DMI 2.7, ACPI 5.0, PnP 1.0a
Supported Technologies Intel Extreme Memory Profiles (XMP) 3.0, Dual channel memory architecture
Included Software Realtek Gaming LAN Bandwidth Control, GIGABYTE Control Center, Norton Internet Security (OEM)
Special Features Q-Flash Plus, EZ-Latch, Ultra Durable design, Smart Fan 6, VRM heatsink, M.2 Thermal Guard Ext., 6 Layer PCB, 12+1+1 Phase power
Hardware Monitoring System voltage, temperature, fan speed, fan control, fan fail warning, water cooling flow rate

Wireless Features
Wi-Fi 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Bluetooth Bluetooth 5.3
Wireless Chipset Intel AX211

Storage
SATA Ports 4 x SATA 6Gb/s (SATA-600)
M.2 Slots 3 x M.2 (2280/22110), PCIe 4.0, supports RAID 0/1/5/10
RAID Support RAID 0, 1, 5, 10 (SATA and M.2)

Compliance & Origin
Country of Origin China
TAA Compliant No

Advanced Security Features
Security Software (OEM) Norton Internet Security

Interfaces
USB Ports (Rear I/O) 1 x USB-C 3.2 Gen 2, 1 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 2 x USB 2.0
USB Ports (Internal Headers) 1 x USB-C 3.2 Gen 2 header, 2 x USB 3.2 Gen 1 headers, 4 x USB 2.0 headers
Video Output 1 x HDMI
Audio Jacks 1 x Line-in, 1 x Line-out, 1 x Microphone (mini-jack)
Audio Codec HD Audio (8-channel), High Definition Audio
Expansion Slots 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1, 2 x M.2 (2280), 1 x M.2 (2280/22110)
LAN Port 1 x 2.5GbE LAN
PS/2 Port 1 x PS/2 keyboard/mouse combo
Antenna Connectors 2 x external antenna jacks
Internal Interfaces 2 x Thunderbolt headers, SPDIF, audio, SPI headers

Memory
RAM Type DDR5
Max RAM Capacity 192 GB
Memory Slots 4 x 288-pin DIMM
Supported RAM Frequencies 4000 MHz, 4800 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7400 MHz (O.C.), 7600 MHz (O.C.)
ECC Support Non-ECC, ECC (non-ECC mode)
Buffering Support Unbuffered

Physical & Environmental
Width 12 in
Depth 9.6 in

Cloud Management & Licensing
Bundled Software GIGABYTE Control Center
