HighPoint R1120 PCIe Gen3 x16 4-Channel U.2 NVMe HBA

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: R1120 UPC#: 643653112036
1 5
Photo is for illustration purposes only. Actual product may be different.
$210.00
$210.00
Sale Sold out
Shipping calculated at checkout.
  • PCIe 3.0 x16 host interface for maximum bandwidth
  • Supports 4-channel U.2 NVMe drive connections

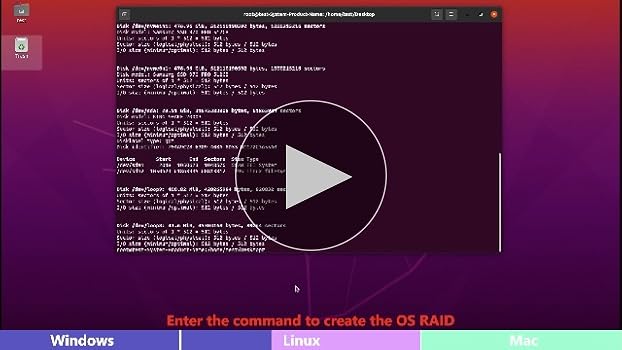

  • OS RAID-ready architecture for flexible software-based RAID
  • Compatible with Windows, Linux, macOS, and FreeBSD
  • No PCIe bifurcation required for platform integration
  • Storage controller form factor for high-speed applications

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers maximum throughput with PCIe Gen3 x16 interface, ideal for storage-intensive requirements.
  • Simplifies deployment across platforms with no need for PCIe bifurcation.
  • Supports broad operating system compatibility, enabling hybrid environment integration.

Product Overview

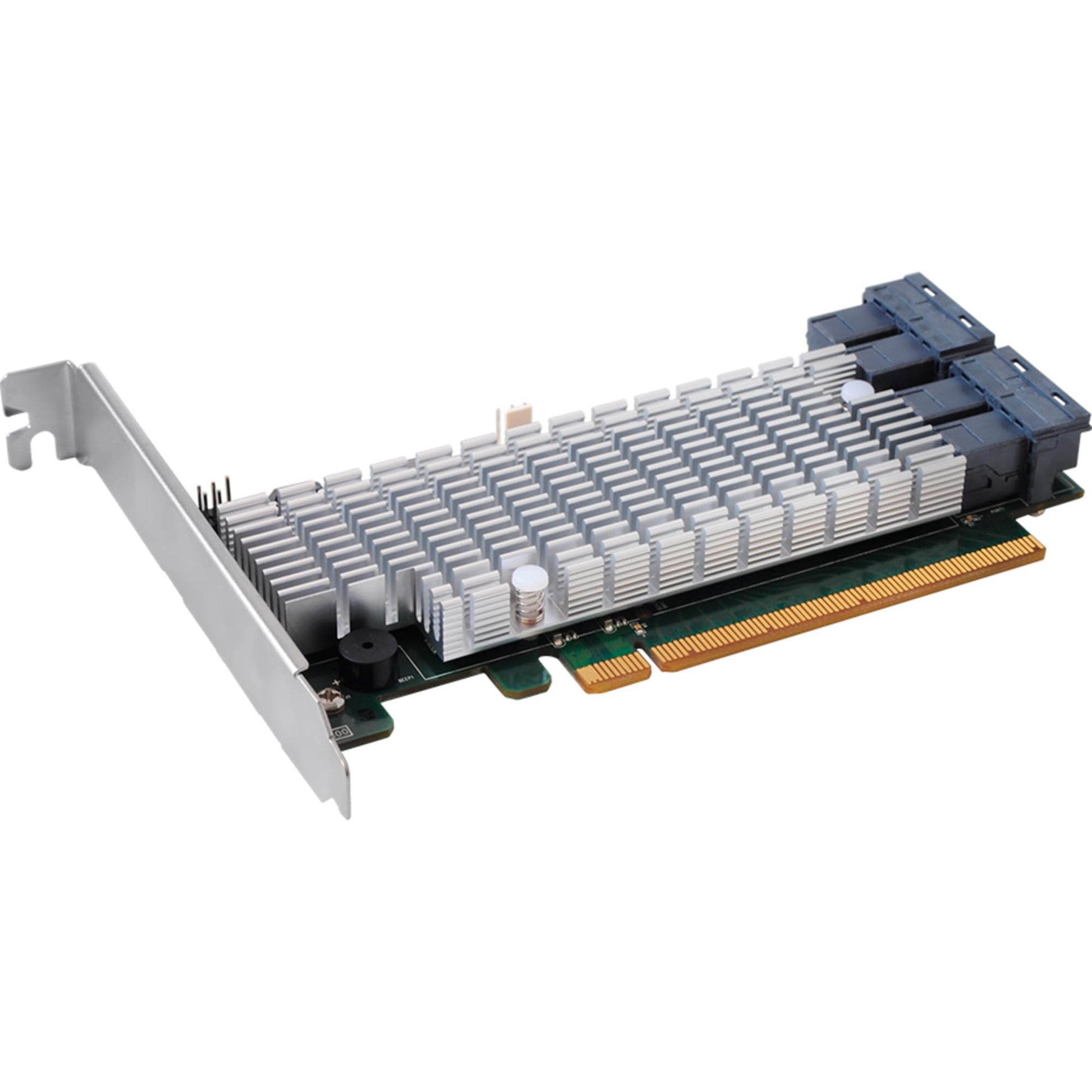

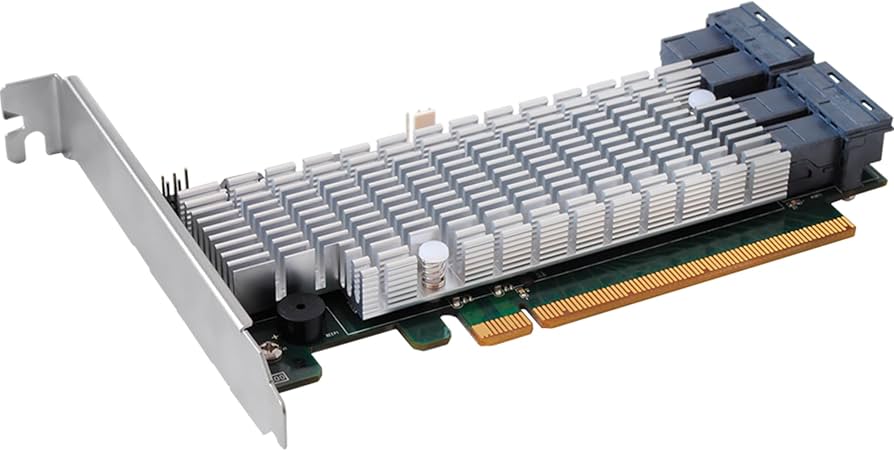

The HighPoint R1120 is a professional-grade storage controller supporting PCIe 3.0 x16 and four U.2 NVMe channels, ideal for data-intensive workflows. Compatible with Windows, Linux, macOS, and FreeBSD, it ensures broad deployment flexibility. This OS RAID-ready HBA requires no PCIe bifurcation, simplifying installation across various platforms. Built for high-speed and reliable integration, it delivers significant performance value in media production, virtualization, and HPC environments.

Specifications

Product Overview
Product Type Storage Controller
Form Factor Low-profile PCIe add-in card
Model HighPoint R1120
Host Interface PCIe 3.0 x16
Power Consumption Max 15W
Operating System Support Windows, Linux, macOS, FreeBSD
RAID Support OS-level RAID only
PCIe Bifurcation Requirement No (not required)
Weight Approximately 0.3 lbs (136g)

Wireless Features
Wi-Fi Supported

Compliance & Origin
Country of Origin CHINA
TAA Compliance No
RoHS Compliance Yes
FCC Compliance Yes
CE Certification Yes
Manufacturer Part Number R1120
UPC 643653112036

Advanced Security Features
Data Protection Features Host OS-level RAID functions
Encryption Support Depends on SSD used – controller does not provide encryption
Secure Boot Compatibility Yes (if supported by platform BIOS)

Interfaces
Interface Type PCIe 3.0 x16
Number of Channels 4
Drive Interface U.2 NVMe (SFF-8639)
Port Type Mini-SAS HD (SFF-8643)
Maximum Data Transfer Rate Up to 128Gbps
Supported Drive Form Factor 2.5” U.2 NVMe SSDs
NVMe Specification Supported NVMe 1.3

Physical & Environmental
PCB Dimensions (LxH) 6.6 x 2.71 inches (168 x 69 mm)
Operating Temperature 5°C to 55°C (41°F to 131°F)
Storage Temperature -20°C to 80°C (-4°F to 176°F)
Humidity (Non-operating) 5% to 95% non-condensing
Cooling Passive heatsink
Enclosure Open PCIe card (metal PCB bracket)

Cloud Management & Licensing
Management Interface None (OS-managed)
Driver Support Drivers available for major OS platforms
Web Management
Bundled Software None – OS RAID supported
