| Product Type | Storage Controller |
| Form Factor | Low-Profile PCIe Add-In Card |
| Interface Bus Type | PCIe 3.0 x8 |
| NVMe Support | Yes |
| RAID Support | OS-Level RAID Only |
| Operating System Support | Windows, Linux, macOS, FreeBSD |
| Software Support | Driverless Configuration (OS-managed) |
| Power Consumption | Up to 28W |
| Weight | 0.25 lbs (approx. 113g) |

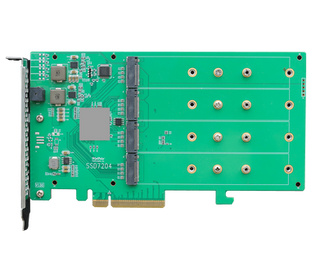

HighPoint R1204 PCIe 3.0 x8 4-Port M.2 NVMe HBA Controller
Photo is for illustration purposes only. Actual product may be different.
Regular price
$210.00
Regular price
Sale price
$210.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- - Supports PCI Express 3.0 x8 interface for high-throughput connectivity
- - Four M.2 NVMe channels for direct SSD integration
- - Compatible with Windows, Linux, macOS, and FreeBSD operating systems
- - No PCIe bifurcation required for installation
- - OS-level RAID support for flexible storage configuration
- - Designed for deployment without TAA compliance constraints
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- - Enables high-speed NVMe storage integration on non-bifurcated systems, simplifying hardware requirements
- - Offers broad OS compatibility including Windows, Linux, macOS, and FreeBSD, ensuring flexible deployment across platforms
- - Delivers four-channel NVMe support through a single PCIe 3.0 x8 slot, optimizing performance and system space
Product Overview
The HighPoint R1204 PCIe 3.0 x8 HBA Controller delivers direct-to-CPU NVMe performance with support for four M.2 NVMe SSDs in a non-bifurcated interface. Compatible with Windows, Linux, macOS, and FreeBSD, it simplifies deployment in performance-focused systems. Ideal for real-time editing, AI/ML, and data analysis, the controller offers OS-level RAID support and full PCIe Gen3 x8 bandwidth. Manufactured in China, the R1204 is compact, robust, and highly compatible across various system configurations.
Specifications
Product Overview
Physical & Environmental
| Dimensions | 6.60 in. x 2.70 in. (167mm x 69mm) |
| Form Factor Compatibility | Standard and Low-Profile Brackets Included |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -20°C to 80°C (-4°F to 176°F) |
| Operating Humidity | 5% - 85% (non-condensing) |

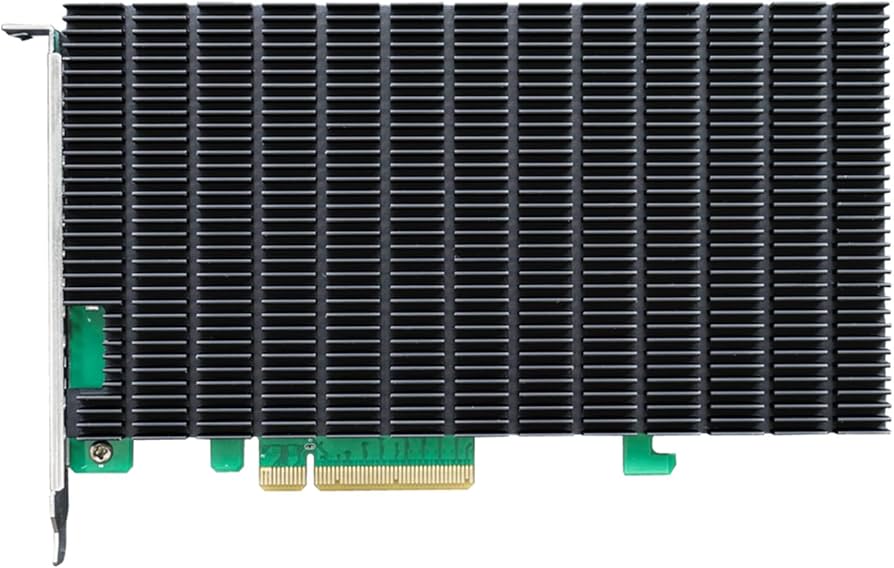

| Cooling Method | Passive Heatsink with Thermal Pads |
Cloud Management & Licensing
| Management Interface | None (OS-level Management) |
| Software Bundle | None Required |
| Firmware Upgradeable | Yes |
| Licensing Requirements | None |
Interfaces
| Host Interface | PCIe 3.0 x8 |
| Device Interface | M.2 NVMe (M-key) |
| Number of Ports | 4 x M.2 slots |
| Interface Speed | Up to 8 GT/s per PCIe lane |
| Total Bandwidth | Up to 64Gbps (PCIe 3.0 x8) |
| Supported SSD Lengths | 2280 / 22110 |
| Port Interface Type | PCIe Gen3 x4 per port |
Compliance & Origin
| Country of Origin | China |
| TAA Compliance | No |
| RoHS Compliance | Yes |
| CE Certification | Yes |
| FCC Certification | Yes |
| Environmental Compliance | RoHS, WEEE |
Advanced Security Features
| Data Security Support | Dependent on SSD used (e.g., TCG Opal) |
| Drive Isolation | Yes (Independent NVMe Channels) |
