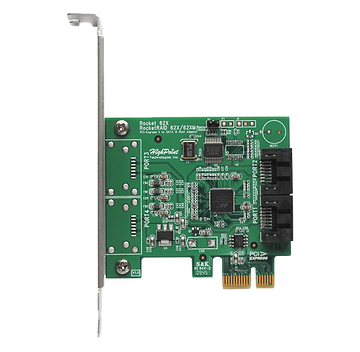

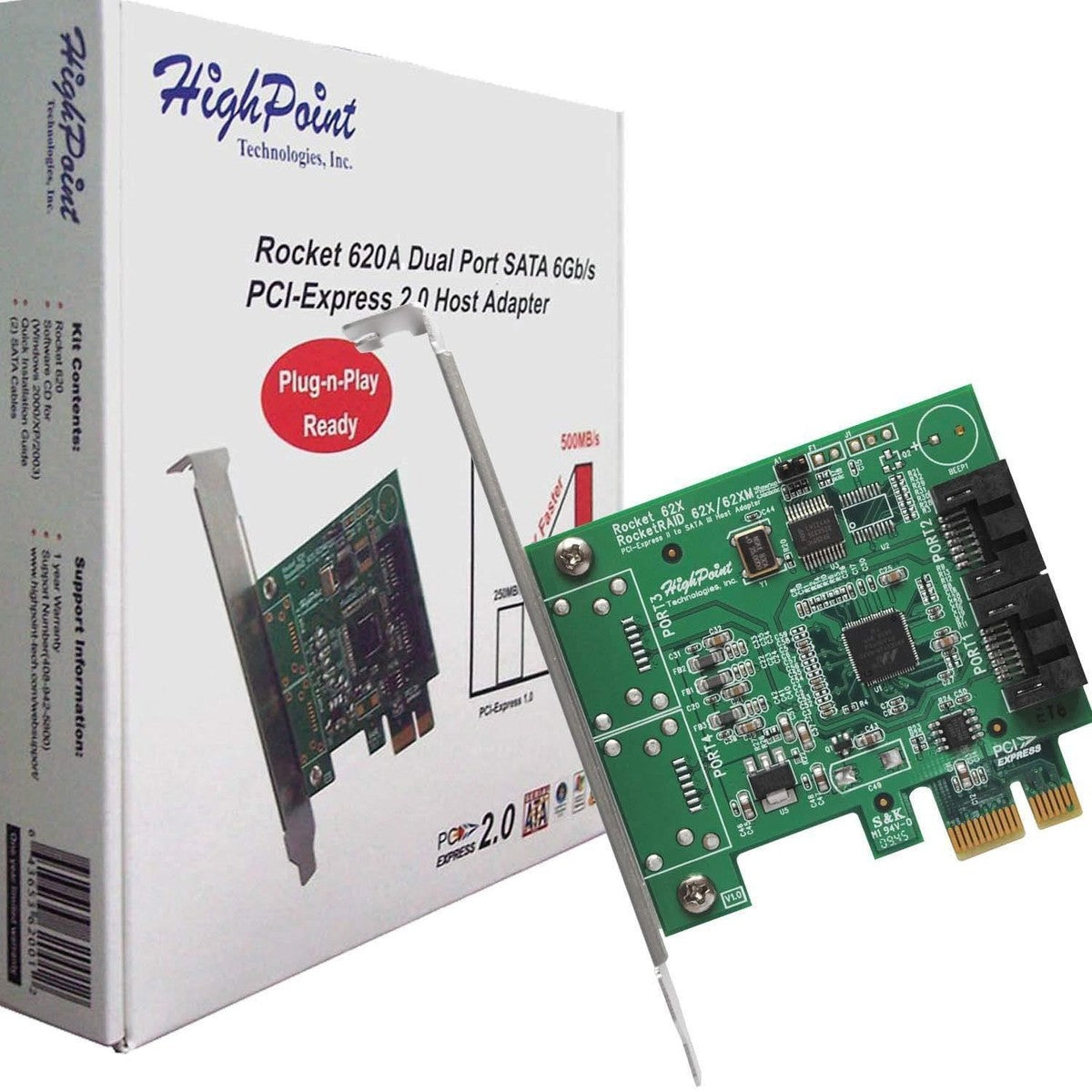

HighPoint R620A PCIe 2.0 x1 4-Channel SATA HBA

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: R620A UPC#: 643653620012
1 5
Photo is for illustration purposes only. Actual product may be different.
$20.00
$20.00
Sale Sold out
Shipping calculated at checkout.
  • PCIe 2.0 x1 interface with 6Gb/s data transfer rate
  • Supports RAID 0, 1, and JBOD configurations
  • Low-profile form factor, ideal for compact systems
  • Compatible with both Windows and Linux operating systems
  • MTBF rating of 920,585 hours for high reliability
  • Two SATA ports supporting four channels

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Flexible RAID support (0, 1, JBOD) allows users to tailor storage setups to performance or redundancy needs.
  • Low-profile and compact size supports integration into space-limited or custom system builds.
  • MTBF of over 920,000 hours ensures exceptional reliability in long-term deployments.

Product Overview

The HighPoint R620A is a 4-channel SATA Host Bus Adapter built for reliable performance through a PCIe 2.0 x1 interface with 6Gb/s data transfer rates. Its low-profile form factor fits compact systems, while the RAID 0, 1, and JBOD support makes it adaptable for performance or redundancy-focused configurations. Compatible with Windows and Linux, and engineered with a MTBF of 920,585 hours, the R620A is a stable and efficient storage solution for small to mid-sized applications.

Specifications

Product Overview
Product Type Storage Controllers
Form Factor Low Profile
Interface PCI Express 2.0 x1
RAID Level Support RAID 0, RAID 1, JBOD
Controller Interface Type Serial ATA
Total Channels 4
MTBF 920,585 hours
UPC 643653620012
Manufacturer Part Number R620A
Manufacturer HighPoint Technologies, Inc.
Product Family Storage Devices
Category Storage Adapters

Physical & Environmental
Width 2.83 inches
Height 2.68 inches
Depth 0.3 inches
Form Factor Type Low-profile bracket
Cooling Passive
Operating Temperature Range 0°C to 60°C
Storage Temperature Range -40°C to 70°C
Relative Humidity (Operating) 5% to 85% (non-condensing)
Relative Humidity (Non-operating) 5% to 95% (non-condensing)

Cloud Management & Licensing
Management Interface Web-based interface
Software License Requirement None
Driver Support Windows, Linux

Interfaces
Total SATA Ports 2
Maximum Data Transfer Rate 6 Gb/s
PCIe Version PCIe 2.0
Expansion Interface PCIe x1

Compliance & Origin
Country of Origin China
TAA Compliant No
RoHS Compliant Yes
Certification CE, FCC, RoHS

Advanced Security Features
Data Protection Features RAID 1 mirroring capability
