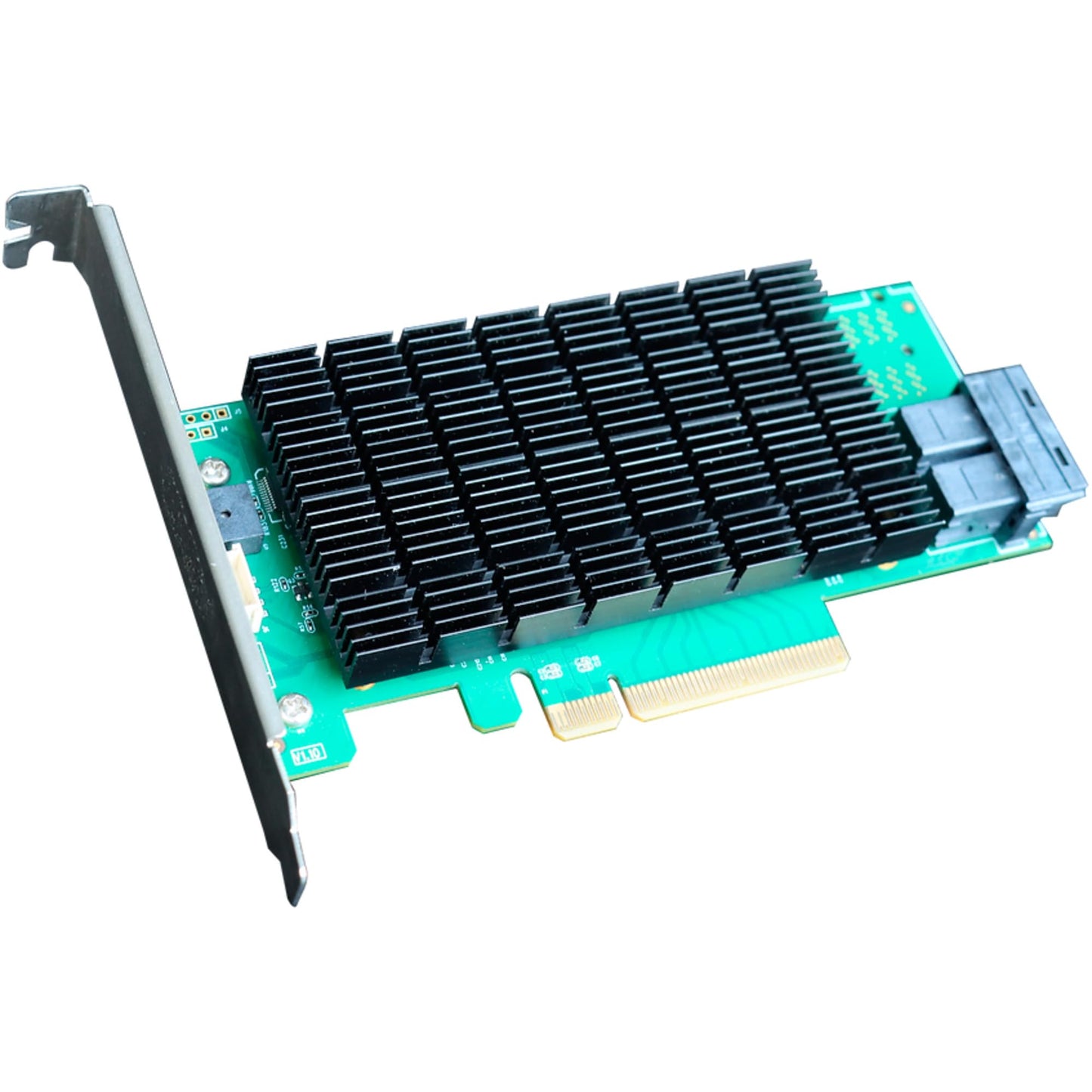

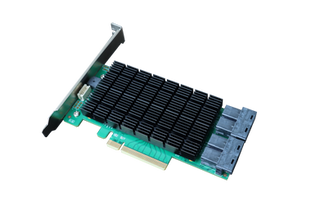

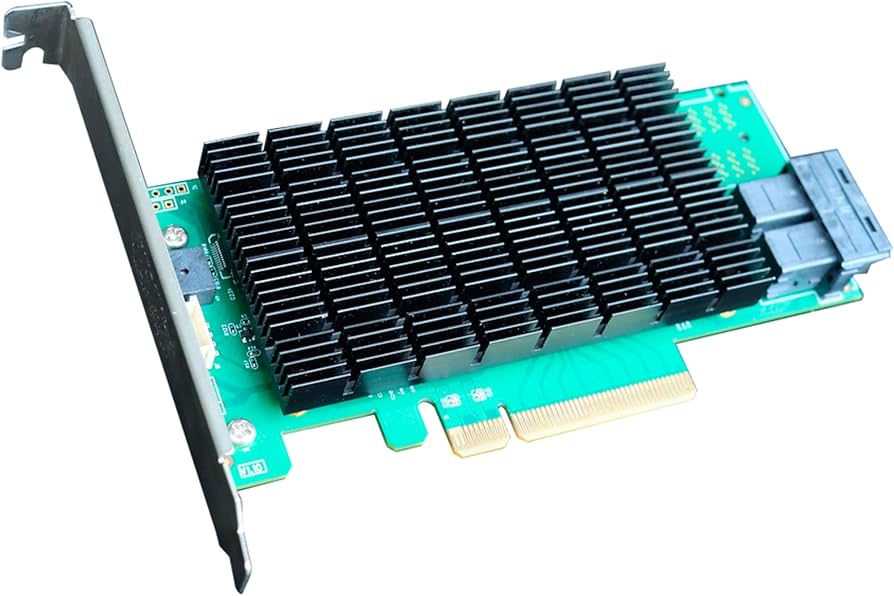

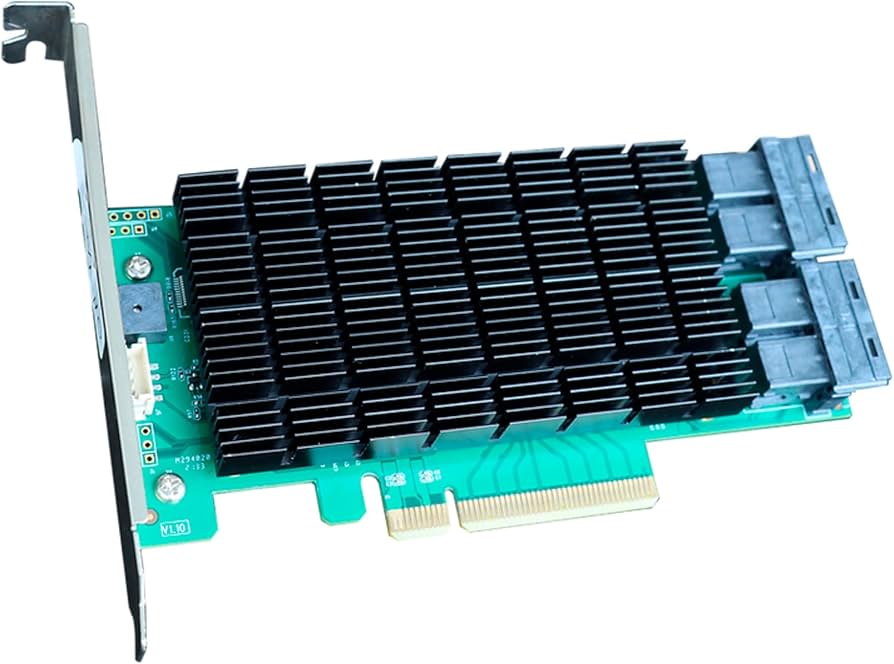

HighPoint R720L PCIe 3.0 x8 16-Channel 12G SAS/SATA HBA

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: R720L
1 5
Photo is for illustration purposes only. Actual product may be different.
$210.00
$210.00
Sale Sold out
Shipping calculated at checkout.
  • PCIe 3.0 x8 interface supporting up to 16 SAS/SATA channels
  • Low-profile form factor for compact deployments
  • 4x SFF-8643 connectors delivering 12Gbps data rate
  • Supports JBOD, RAID 0, 1, and 10 configurations
  • Compatible with Windows and Linux operating systems
  • 2-year manufacturer support warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Optimized for high-performance 12G SAS/SATA connectivity with 16 channels for enterprise storage scalability
  • Cross-platform support for both Windows and Linux systems ensures flexible integration
  • Compact low-profile design suits rackmount and space-limited installations without sacrificing capacity

Product Overview

The HighPoint R720L is a robust PCIe 3.0 x8 low-profile HBA engineered to deliver scalable 12G SAS and SATA connectivity across up to 16 channels via four SFF-8643 ports. Built for high-density and data-intensive environments, it supports JBOD, RAID 0, 1, and 10, making it suitable for diverse storage architectures. With a data transfer rate of 12Gbps per port, it ensures optimal throughput for storage expansion and high-speed data access.

This adapter is ideal for enterprises implementing storage arrays, NAS environments, or backup solutions. Compatible with both Windows and Linux operating systems, its low-profile form factor makes it perfect for space-constrained deployments. With up to 16 dedicated device channels and a 2-year support plan, it provides a high degree of reliability for professional storage infrastructure.

Specifications

Product Overview
Product Type Storage Controllers
Form Factor Low-Profile
Weight 0.12 kg
Power Requirements 15W typical
RAID Level JBOD, RAID 0, 1, 10
Supported Operating Systems Windows, Linux
Manufacturer Part Number R720L
Service & Support 2 Years

Physical & Environmental
Width 5.51 Inch
Depth 0.67 Inch
Height 2.48 Inch
Operating Temperature 0°C to 55°C
Storage Temperature -20°C to 70°C
Operating Humidity 5% to 85% non-condensing
Storage Humidity 5% to 95% non-condensing
Cooling Passive

Cloud Management & Licensing
Management Tools Web-based GUI, CLI utility
Remote Monitoring Supported via CLI or system tools
Licensing Model No subscription required

Interfaces
Interface Type PCI Express 3.0 x8
SAS Ports 4 x SFF-8643
Max Channel Count 16
Data Transfer Rate per Port 12 Gbps
Supported Drive Interfaces 12Gb/s SAS, 6Gb/s SAS, 6Gb/s SATA
Total Bandwidth 64 Gbps (theoretical, via PCIe 3.0 x8)
External Connectors None (internal only)
Port Connector Type Mini-SAS HD (SFF-8643)

Compliance & Origin
Country of Origin CHINA
TAA Compliant No
RoHS Compliance Yes
Certifications CE, FCC, REACH

Advanced Security Features
Data Protection Features RAID 1 mirroring, RAID 10 striping with mirroring
Boot Support BIOS & UEFI Bootable
SMART Support Yes
Drive Failure Notification Via system monitoring tools
