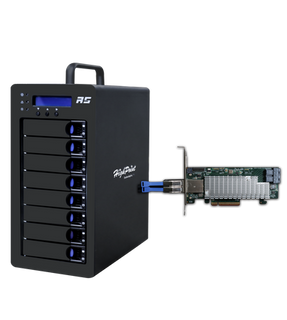

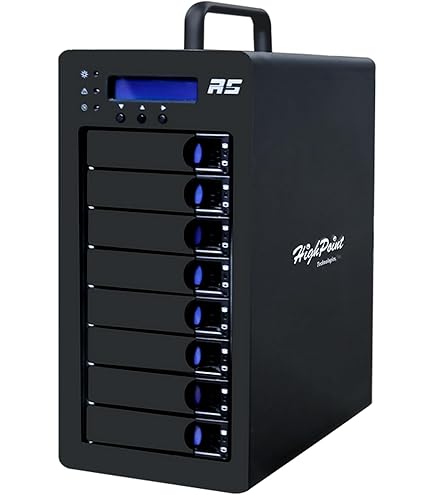

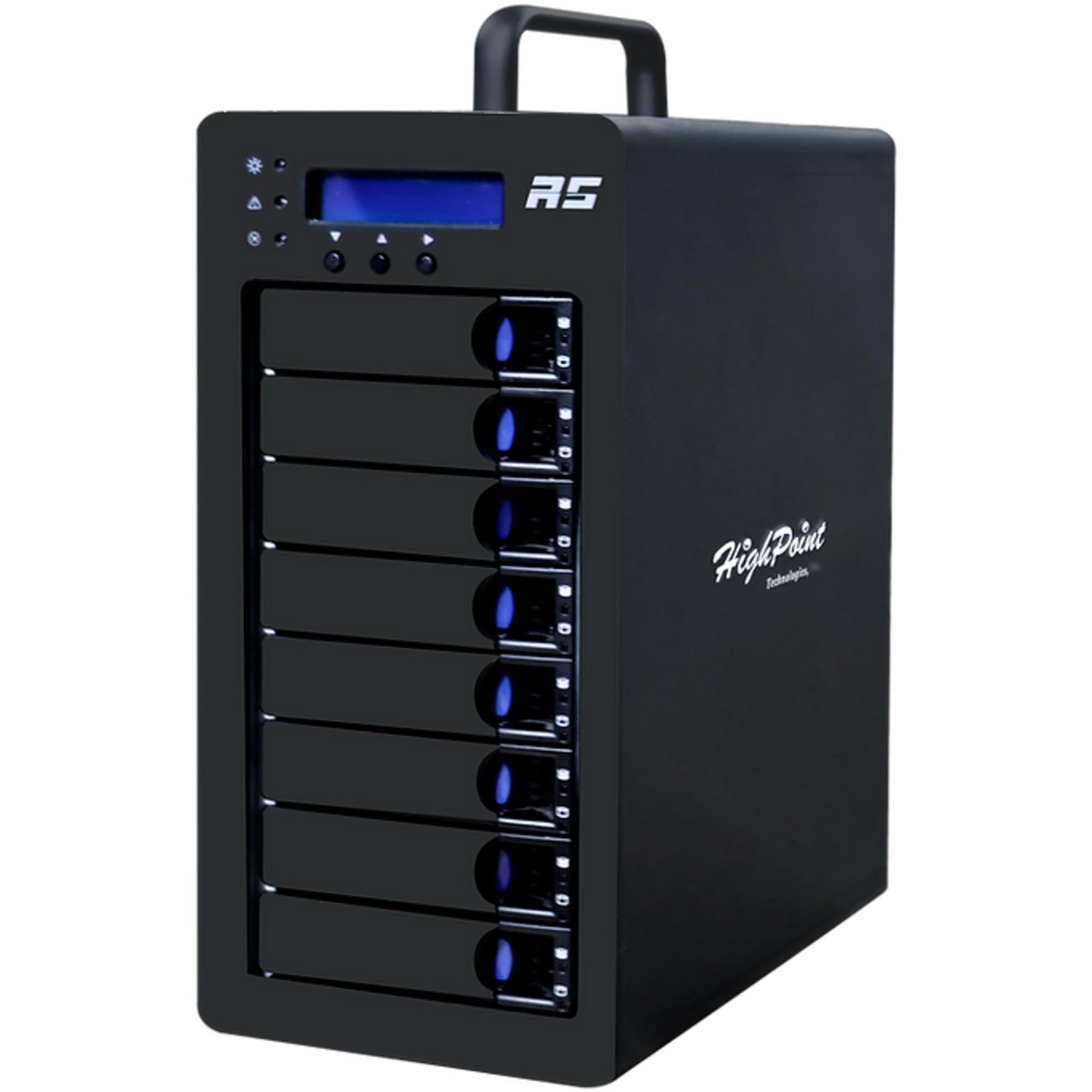

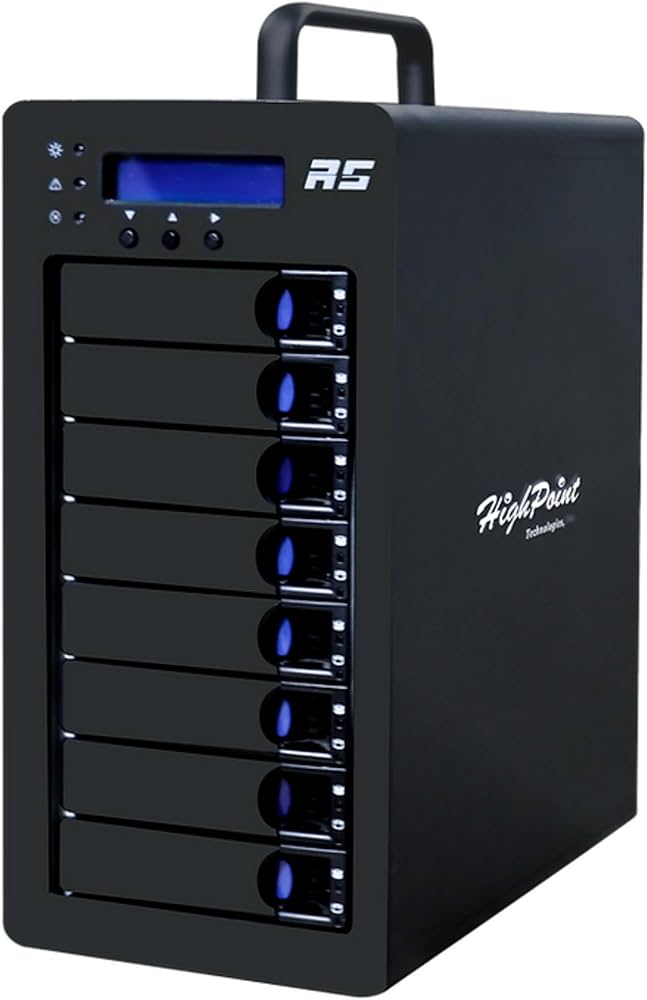

HighPoint RocketStor 6438TS 8-Bay SAS/SATA RAID Enclosure

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: RS6438TS UPC#: 643653643813
1 5
Photo is for illustration purposes only. Actual product may be different.
$842.00
$842.00
Sale Sold out
Shipping calculated at checkout.
  • 8-bay tower enclosure compatible with both 2.5" and 3.5" HDDs/SSDs
  • 16-Port SAS 12G interface via PCIe 3.0 x8 controller
  • Supports RAID 0, 1, 5, 6, 10, 50 and JBOD configurations
  • Compatible with Windows 7–11, Windows Server 2019/2022, Linux, and macOS
  • Includes 250W power supply with universal input (100–240V)
  • Offers RAID management via WebGUI, CLI, BIOS, and UEFI

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Versatile RAID support allows data redundancy and performance customization for professional use cases.
  • High-throughput performance via PCIe 3.0 x8 and 16-port SAS 12G connection enables efficient data handling.
  • Broad OS compatibility ensures quick deployment and integration across diverse IT infrastructures.

Product Overview

The HighPoint RocketStor 6438TS is a high-performance 8-bay storage enclosure built for durable and scalable data workflows. It supports both 2.5-inch and 3.5-inch HDDs/SSDs over 12G SAS and SATA interfaces, ensuring flexible and fast connectivity. The system offers comprehensive RAID support (RAID 0, 1, 5, 6, 10, 50, and JBOD) and is managed via WebGUI, CLI, BIOS, or UEFI. With a 16-port SAS 12G interface and PCIe 3.0 x8 storage controller, it delivers enterprise-level I/O performance. Compatible with Windows, macOS, and Linux, the RS6438TS is powered by a 250W universal power supply and protected by a two-year warranty.

Specifications

Product Overview
Product Type Storage Enclosure
Model RocketStor 6438TS
Form Factor Tower
Enclosure Color Black
Drive Compatibility 2.5-inch and 3.5-inch HDDs/SSDs
RAID Support RAID 0, 1, 5, 6, 10, 50, JBOD
Storage Controller Type PCIe 3.0 x8
Power Supply Type Internal Universal Power Supply
Power Supply Wattage 250W
Voltage Required 100–240V AC
Drive Bays 8
Operating System Compatibility Windows 7/8/8.1/10/11, Windows Server 2019/2022, macOS, Linux
Warranty 2 Year

Cloud Management & Licensing
Management Interface WebGUI, CLI, BIOS, UEFI
Software Features RAID Management Suite
Cloud Integration
Licensing Required No licensing required

Compliance & Origin
Country of Origin China
TAA Compliant No
RoHS Compliant Yes
Certifications CE, FCC, RoHS

Interfaces
Interface Type SAS 12Gb/s and SATA 6Gb/s
SAS Ports 16-Port SAS 12G
Data Transfer Rates Up to 12Gb/s per SAS port
External Interface Mini-SAS HD (SFF-8644)
Compatible Host Interface PCIe 3.0 x8 via host controller card

Physical & Environmental
Width 5.77 in
Depth 10.24 in
Height 13.83 in
Cooling Active cooling with internal fan
Operating Temperature 5°C to 40°C
Storage Temperature -10°C to 70°C
Operating Humidity 5% to 85% non-condensing
Storage Humidity 5% to 95% non-condensing
Weight 12.4 lbs (approx)

Advanced Security Features
Drive Security Individual drive failure redundancy (RAID 5/6/10/50)
Data Protection Features Hot swap supported, RAID rebuild support
