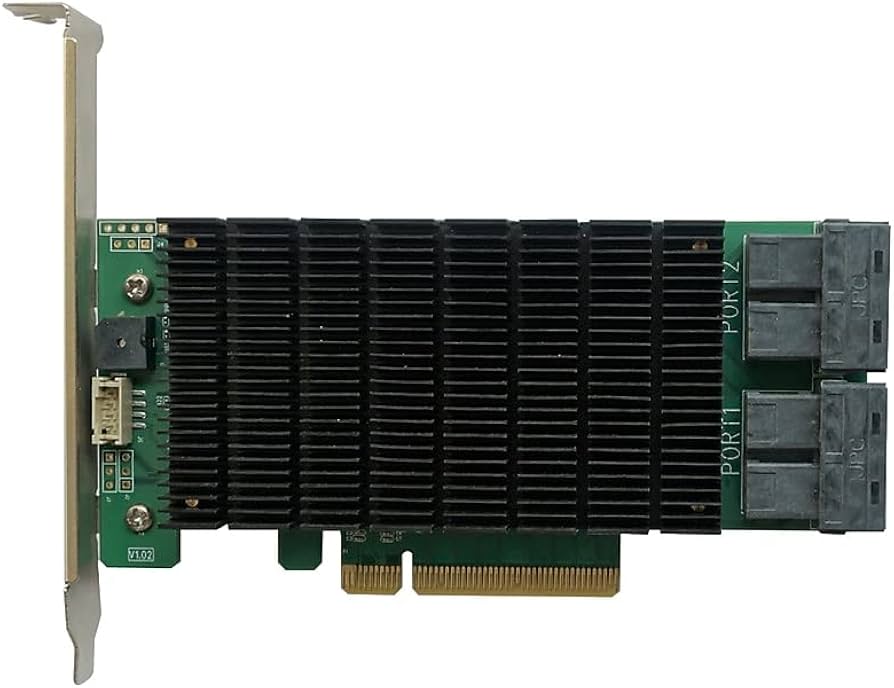

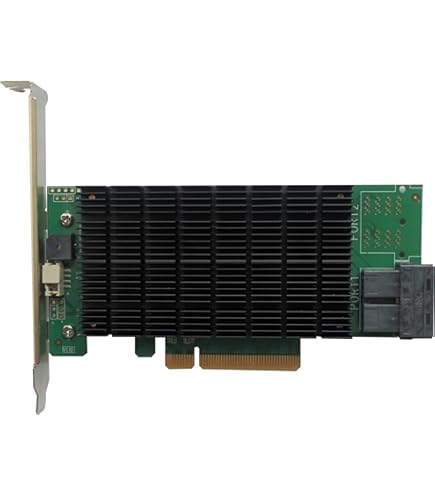

HighPoint RR2840C PCIe 3.0 x8 8-Channel 6Gb/s SAS/SATA RAID Controller

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: RR2840C UPC#: 643653284023
1 5
Photo is for illustration purposes only. Actual product may be different.
$210.00
$210.00
Sale Sold out
Shipping calculated at checkout.
  • - PCIe 3.0 x8 interface ensures high-bandwidth data transfer
  • - 8 internal channels support 6Gb/s SAS and SATA storage devices
  • - Supports a broad range of RAID levels: 0, 1, 5, 6, 10, 50, JBOD, and Non-RAID
  • - Compatible with major OS platforms: Windows, Linux, and macOS
  • - Management via WebGUI, CLI, BIOS, and UEFI interfaces
  • - TAA non-compliant and manufactured in China

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - High-performance SATA/SAS RAID controller with wide OS support ensures seamless integration into diverse IT infrastructures
  • - Flexible RAID support and multiple management interfaces deliver ease of deployment and long-term scalability
  • - PCIe 3.0 x8 connectivity and 6Gb/s throughput per channel maximize storage performance for demanding applications

Product Overview

The HighPoint RR2840C RAID Controller is engineered for enterprise and professional workloads requiring robust, scalable storage. Featuring a PCIe 3.0 x8 interface, it supports up to eight internal 6Gb/s SAS or SATA drives, offering excellent data throughput for content creation, backup, and virtualization.

This unit supports RAID 0, 1, 5, 6, 10, 50, JBOD, and non-RAID modes, making it adaptable across varied storage environments. Compatible with Windows, Linux, and macOS, the RR2840C is managed via WebGUI, CLI, BIOS, or UEFI, enabling both novice and advanced users to configure it effectively.

Its multi-platform support, broad RAID capability, and efficient management tools make it an ideal investment for organizations ready to expand or enhance their RAID-based storage.

Specifications

Product Overview
Product Type RAID Controller
Form Factor Low Profile, Half-Height
Bus Type PCI Express 3.0 x8
RAID Levels Supported 0, 1, 5, 6, 10, 50, JBOD, Non-RAID
Drive Type Supported SATA/SAS
Supported Devices HDDs and SSDs
Number of Devices Supported Up to 8
Data Transfer Rate 6 Gb/s per port
Cache Memory None (uses host system memory where applicable)
Weight 0.55 lbs (approx.)
Power Requirements Typically draws power from PCIe slot

Physical & Environmental
Dimensions 6.6 in x 2.71 in
Operating Temperature 5°C to 55°C (41°F to 131°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Relative Humidity (Operating) 5% to 60% non-condensing
Cooling Passive heatsink

Cloud Management & Licensing
Management Interfaces WebGUI, Command Line (CLI), BIOS, UEFI
Operating System Compatibility Windows, Linux, macOS
Driver Support Available for major OS platforms
Software Suite HighPoint Web RAID Management Software (WebGUI)

Interfaces
Interface Type PCI Express 3.0 x8
Internal Ports 2 x Mini-SAS SFF-8087
Port Count 8 total (4 per Mini-SAS connector)
Supported Protocols SAS 2.0, SATA III
Data Bandwidth Up to 4GB/s total throughput

Compliance & Origin
Country of Origin CHINA
TAA Compliant No
RoHS Compliant Yes
Certifications CE, FCC, RoHS

Advanced Security Features
Secure Boot Compatibility Yes
UEFI Boot Support Yes
Disk Health Monitoring SMART and LD monitoring tools
RAID Recovery Features RAID rebuild, auto-rebuild, hot-swap support
