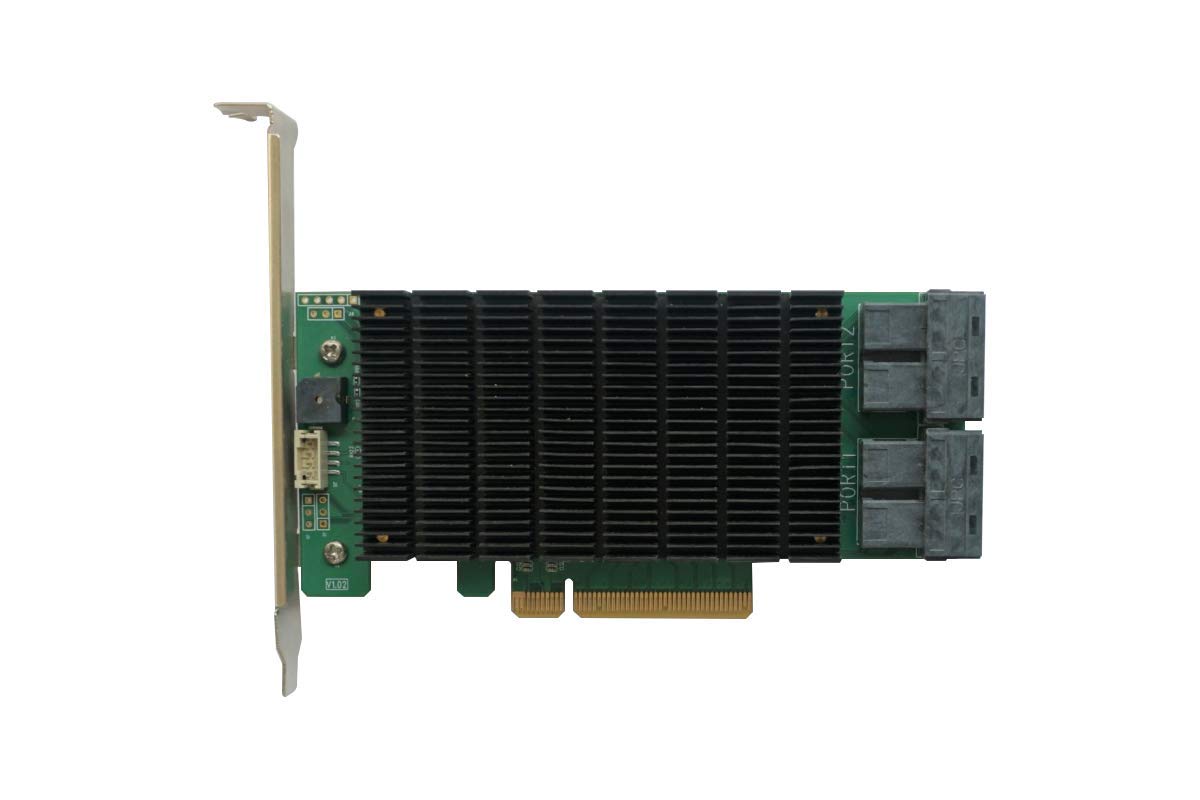

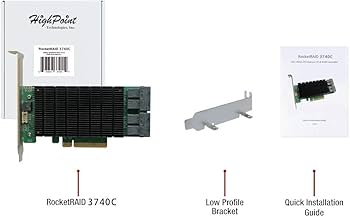

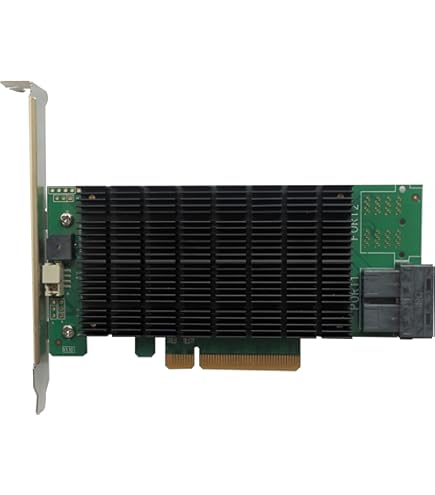

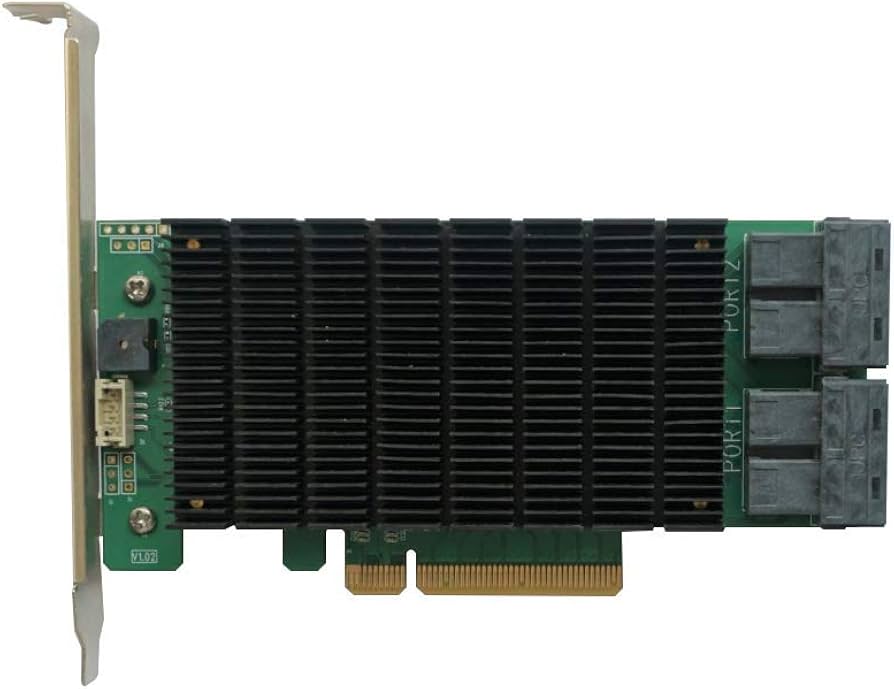

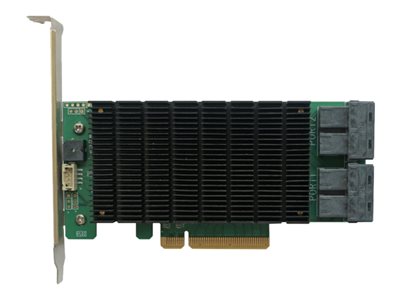

HighPoint RR3740C PCIe 3.0 x8 16-Channel 12Gb/s SAS/SATA RAID Controller

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: RR3740C UPC#: 643653374021
1 5
Photo is for illustration purposes only. Actual product may be different.
$561.00
$561.00
Sale Sold out
Shipping calculated at checkout.
  • PCI Express 3.0 x8 interface for high bandwidth performance
  • 16 internal SAS/SATA channels supporting 12Gb/s throughput
  • Supports RAID 0, 1, 5, 6, 10, 50, and JBOD/Non-RAID modes
  • Compatible with Windows, Linux, and macOS operating systems
  • Comprehensive RAID management via WebGUI, CLI, BIOS, and UEFI
  • Non-TAA compliant, country of origin: China

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Flexible RAID options including popular levels like 5, 6, and 10 allow tailored performance and redundancy.
  • PCIe 3.0 x8 interface and 12Gb/s SAS/SATA ensure high data throughput for demanding applications.
  • Multi-OS support and extensive management tools make integration and control simple in heterogeneous environments.

Product Overview

The HighPoint RR3740C RAID controller delivers high-performance connectivity for SAS and SATA storage devices, ideal for enterprise-grade servers and data-intensive workstations. With 16 internal channels and a PCIe 3.0 x8 interface, this controller supports speeds up to 12Gb/s per channel, enabling efficient throughput and reduced latency.

It supports RAID levels 0, 1, 5, 6, 10, 50, and JBOD, offering flexible configurations for performance, redundancy, or capacity. Compatibility with Windows, Linux, and macOS ensures broad deployment across diverse IT ecosystems. Management tools include WebGUI, CLI, BIOS, and UEFI interfaces for advanced configuration and control.

Though not TAA-compliant, the RR3740C is a high-value solution engineered in China for scalable, high-throughput storage architectures in applications such as media production, virtualization, or data archiving.

Specifications

Product Overview
Product Type RAID Controller
Form Factor Low-Profile PCIe Card
Host Bus Interface PCI Express 3.0 x8
RAID Levels Supported 0, 1, 5, 6, 10, 50, JBOD
Max Drive Channels 16
Data Transfer Rate 12 Gb/s per channel
Device Support SAS and SATA HDDs and SSDs
Hot-Swap Support Yes
Weight 0.72 lbs (approx. 326 g)
Power Requirements Max 13.7W (PCIe-powered)

Physical & Environmental
Dimensions 6.6 x 2.713 x 0.76 inches (167.6 x 68.9 x 19.3 mm)
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity Range (Operating) 5% to 60% (non-condensing)
Humidity Range (Non-operating) 5% to 95% (non-condensing)
Cooling Passive Heatsink
Bracket Types Included Full-height and Low-profile

Compliance & Origin
Country of Origin China
TAA Compliant No
RoHS Compliance Yes
Certifications CE, FCC, RoHS
Environmental Certification RoHS

Interfaces
Interface Type SAS 12Gb/s, SATA 6Gb/s
Host Interface PCIe 3.0 x8
Internal Connector Type 4 x SFF-8643 Mini-SAS HD
Internal Port Count 16
Data Transfer Bandwidth 8GB/s via PCIe 3.0 x8
Drive Support Up to 16 SAS/SATA drives

Cloud Management & Licensing
Management Interfaces WebGUI, Command Line Interface (CLI), BIOS, UEFI
Operating System Support Windows, Linux, macOS
Configuration Utility RAID Management Suite
Firmware Update Method WebGUI or CLI
Driver Availability Available on HighPoint support site

Advanced Security Features
Bootable RAID Support Yes
Drive Failure Notification Yes (via GUI/CLI/BIOS email reporting)
RAID Recovery Options Quick Rebuild, Automatic Rebuild
Online Capacity Expansion (OCE) Yes
Online RAID Level Migration (RLM) Yes
