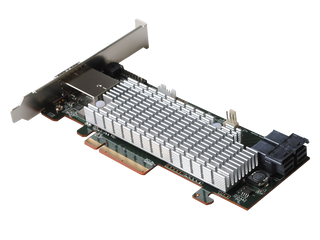

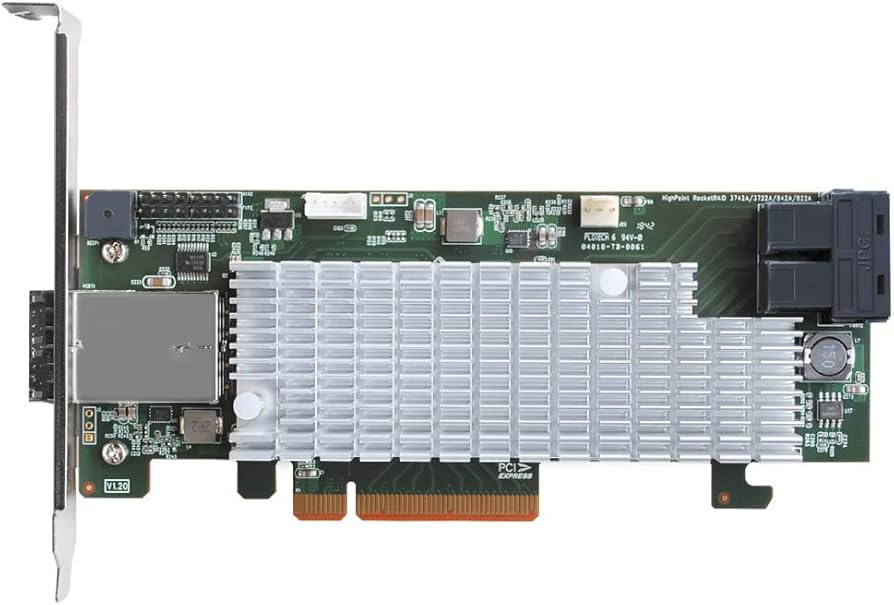

HighPoint RR3742A PCIe 3.0 x8 16-Channel 12G SAS/SATA RAID Controller

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: RR3742A UPC#: 643653374212
1 4
Photo is for illustration purposes only. Actual product may be different.
$631.00
$631.00
Sale Sold out
Shipping calculated at checkout.
  • - Supports 16-channel SAS/SATA connectivity (8 internal, 8 external)
  • - 12Gb/s data transfer rate for both SAS and SATA drives
  • - PCI Express 3.0 x8 interface for high-speed performance
  • - RAID levels 0, 1, 5, 6, 10, 50, and JBOD/non-RAID support
  • - Cross-platform OS support including Windows, Linux, and macOS
  • - Multiple RAID management interfaces: WebGUI, CLI, BIOS, UEFI

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Provides flexible enterprise storage options with 16 high-speed SAS/SATA ports.
  • Supports a wide range of RAID levels and operating systems, suitable for diverse deployment environments.
  • Includes versatile management interfaces, making setup and maintenance straightforward for IT administrators.

Product Overview

The HighPoint RR3742A is a RAID controller built for high-demand storage solutions, offering PCIe 3.0 x8 bandwidth and combining 16 total SAS/SATA 12Gb/s ports—eight internal and eight external—for flexible connectivity. It supports an array of RAID levels (0, 1, 5, 6, 10, 50) and JBOD, ensuring data protection and system performance. Compatible with Windows, Linux, and macOS, the unit can be managed through WebGUI, CLI, BIOS, or UEFI. Built in China, the controller is an effective enterprise-ready tool for data-intensive environments.

Specifications

Product Overview
Product Type RAID Controller
Form Factor Low-profile PCIe add-in card
RAID Levels Supported 0, 1, 5, 6, 10, 50, JBOD
Processor RAID-on-Chip 12Gb/s SAS controller
Cache Memory 1GB DDR3 ECC memory
Power Consumption 22.8W typical
Card Dimensions 6.6 x 2.54 inches (16.76 x 6.45 cm)
Power Requirements Powered via PCIe slot
Operating System Support Windows, Linux, macOS

Wireless Features

Compliance & Origin
Country of Origin China
TAA Compliant No
RoHS Compliant Yes
Certifications FCC, CE

Advanced Security Features
Drive Protection RAID with automatic rebuild, hot spare
RAID Management Security Password-protected WebGUI
Data Integrity Check Yes with CRC and ECC Protection
Bad Sector Management Automatic sector remapping

Interfaces
Host Bus Interface PCI Express 3.0 x8
Drive Interface SAS 12Gb/s, SATA 6Gb/s
Number of Channels 16
Port Configuration 8 internal, 8 external
Connector Type Mini-SAS HD (SFF-8643/8644)
Max Data Transfer Rate Up to 12Gb/s per port
PCIe Lane Width x8 lanes
PCIe Revision PCIe 3.0

Physical & Environmental
Card Height Low-profile
Operating Temperature 5°C to 60°C (41°F to 140°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Operating Humidity 5% to 60% non-condensing
Storage Humidity 5% to 95% non-condensing
Cooling Passive Heatsink

Cloud Management & Licensing
Management Interface WebGUI, CLI, BIOS, UEFI
Remote Monitoring Support Yes (via WebGUI)
Driver Support Cross-platform (Windows, Linux, macOS)
Firmware Update Method Via WebGUI or CLI
Licensing Requirements No additional licenses required
