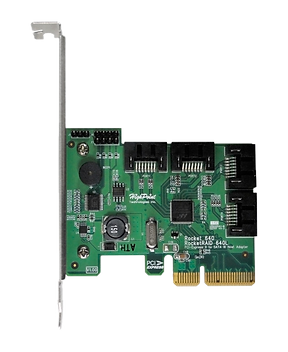

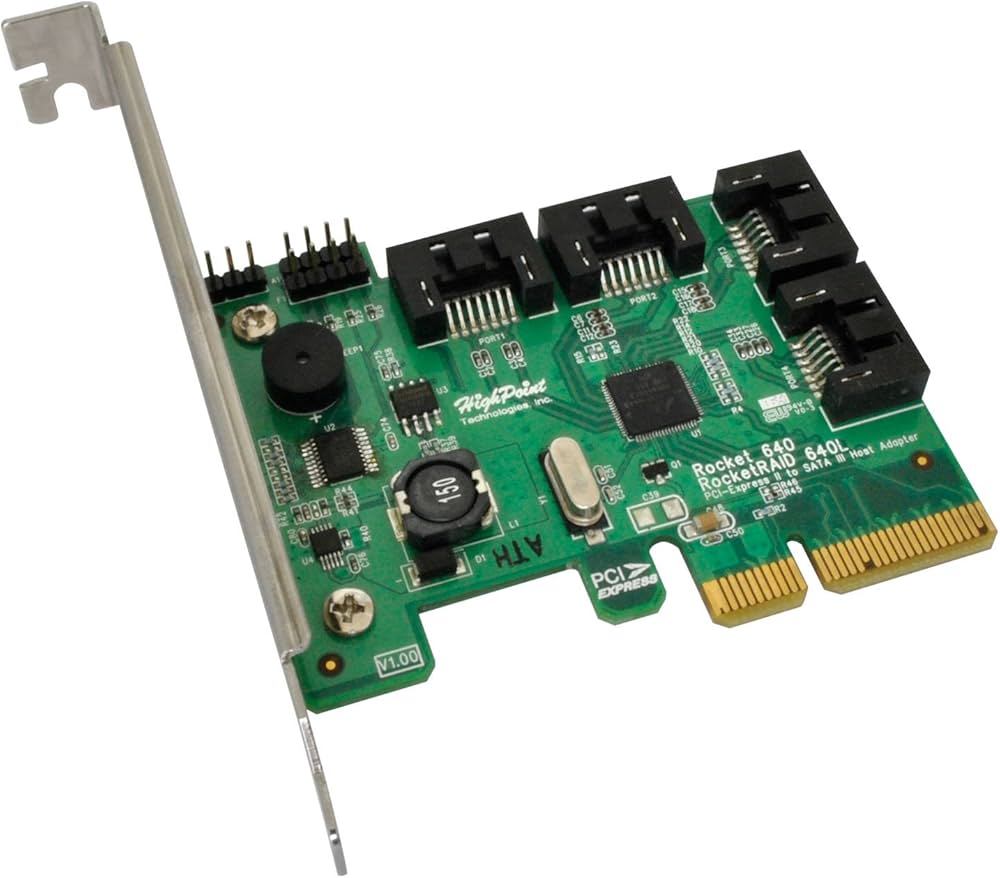

HighPoint RR640L PCIe 2.0 x4 4-Port 6Gb/s SATA RAID Controller

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: RR640L UPC#: 643653640034
1 5
Photo is for illustration purposes only. Actual product may be different.
$154.00
$154.00
Sale Sold out
Shipping calculated at checkout.
  • PCI Express 2.0 x4 interface for high-bandwidth connectivity
  • Supports 4-channel internal 6Gb/s SATA connections
  • Compatible with RAID levels 0, 1, 5, 6, 10, 50 and JBOD
  • Multi-platform OS support: Windows, Linux, and macOS
  • RAID management via WebGUI, CLI, BIOS, and UEFI
  • Manufactured in China, non-TAA compliant

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Flexible RAID level support makes it suitable for performance and redundancy applications.
  • Multiplatform compatibility (Windows, Linux, macOS) ensures seamless system integration.
  • Extensive management options increase administrative efficiency and control.

Product Overview

The HighPoint RR640L RAID Controller provides reliable and high-speed internal storage expansion with a PCI Express 2.0 x4 interface and four 6Gb/s SATA ports. It supports a wide range of RAID levels (0, 1, 5, 6, 10, 50) and JBOD mode. Designed for Windows, Linux, and macOS systems, it includes management via WebGUI, CLI, BIOS, and UEFI. Ideal for performance-driven applications like media workflows, backups, and surveillance systems, the RR640L offers flexibility and robust data reliability in one package.

Specifications

Product Overview
Product Type RAID Controller
Form Factor Low Profile (Half-Height)
Interface Bus Type PCI Express 2.0 x4
Supported RAID Levels 0, 1, 5, 6, 10, 50, JBOD
Operating System Support Windows, Linux, macOS
Cache Memory None (Host Based RAID)
Controller Chipset Marvell 88SE9230
Data Transfer Speed 6 Gb/s per port
Number of Supported Drives Up to 4
Power Requirements 3.3V via PCIe slot
Low-Profile Bracket Included Yes

Cloud Management & Licensing
Management Interface WebGUI, CLI, BIOS, UEFI
Remote Management Yes, via WebGUI and CLI
Software Included HighPoint RAID Management Software
License Requirement No additional licensing required

Physical & Environmental
Card Dimensions 6.6 in. x 2.7 in. (167 mm x 68 mm)
Weight 120 g (approx.)
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 60% non-condensing

Interfaces
Host Interface PCIe 2.0 x4
Internal Ports 4 x SATA 6Gb/s
Connector Type 2 x Mini-SAS (SFF-8087)
Maximum Data Transfer Rate (Aggregate) 24 Gb/s
Port Multiplier Support Yes
Hot-Swap Support Yes

Advanced Security Features
Drive Failure Notification Yes (via email alerts and WebGUI)
RAID Management Alerts Yes

Compliance & Origin
Country of Origin CHINA
TAA Compliant No
RoHS Compliant Yes
Certifications CE, FCC, RoHS
UPC 643653640034
