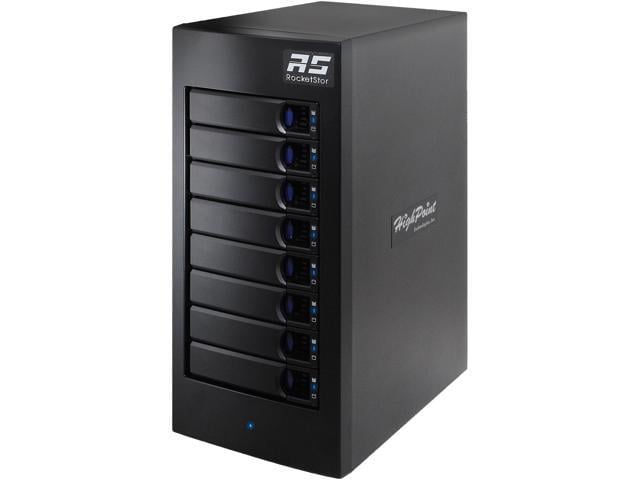

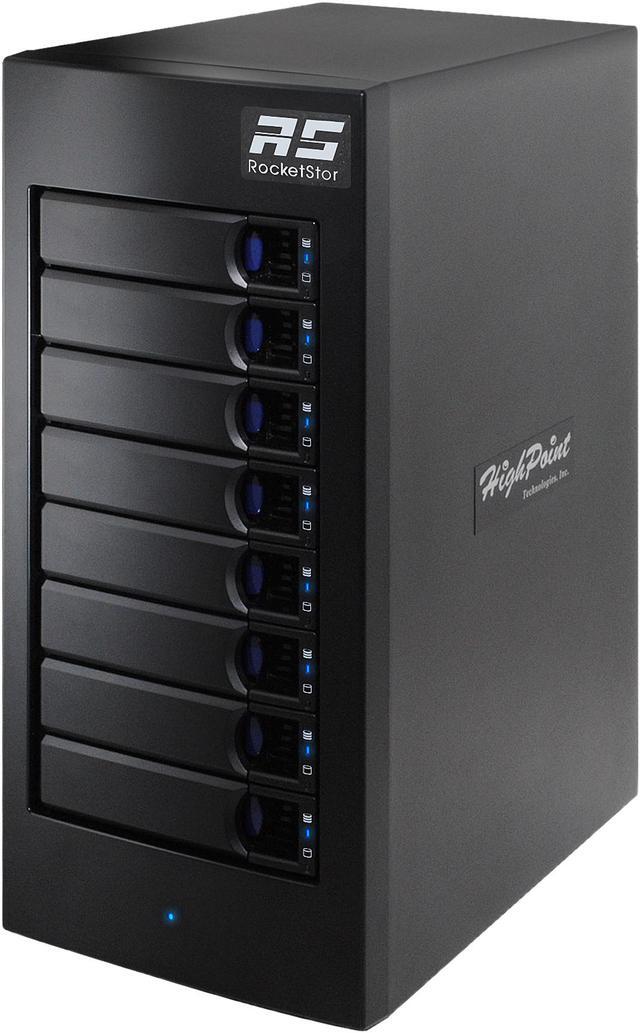

HighPoint RS6628A 8-Bay TB3 Hardware RAID Enclosure

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: RS6628A UPC#: 643653311170
1 5
Photo is for illustration purposes only. Actual product may be different.
$1,264.00
$1,264.00
Sale Sold out
Shipping calculated at checkout.
  • Supports 2.5" and 3.5" SAS/SATA drives for versatile storage configurations
  • Hardware RAID levels 0, 1, 5, 6, 10, 50 and JBOD for flexible data management
  • Dual Thunderbolt 3 ports enable high-speed transfer and daisy chaining of up to 6 devices
  • Compatible with macOS and Linux operating systems
  • 250W power supply with wide 100–240V input for global usability
  • Three-year manufacturer warranty for long-term support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • High-performance Thunderbolt 3 connectivity ensures rapid data transfer for media professionals.
  • Comprehensive RAID level support provides scalable protection and performance options for critical data.
  • Multi-OS compatibility and daisy-chaining expand integration flexibility in professional environments.

Product Overview

The HighPoint RS6628A is a robust 8-bay storage enclosure engineered for demanding data environments. Supporting both 2.5" and 3.5" SAS and SATA drives, this enclosure offers broad compatibility and high-capacity scalability. Equipped with two Thunderbolt 3 ports, it allows blazing-fast data transfer while supporting daisy-chaining of up to six devices. The inclusion of hardware RAID capabilities across multiple levels (RAID 0, 1, 5, 6, 10, 50) and JBOD ensures users can optimize for speed, redundancy, or storage efficiency based on their application needs. This makes it suitable for professional workflows such as video editing, data backup, and enterprise storage expansion across Windows and macOS operating systems.

Powering the RS6628A is a 250W power supply with auto-switching input (100–240V, 50/60Hz), ensuring stable operation across global locations. Its compact yet sturdy build measures 13 x 5.67 x 10.12 inches, providing flexibility in rack or desktop deployments. Backed by a 3-year manufacturer warranty, this enclosure is designed for long-term use in mission-critical environments. While TAA compliance is not available, the device offers exceptional functionality with a reliable design—from high-speed Thunderbolt interfaces to multi-OS compatibility.

Specifications

Product Overview
Type Storage Enclosure
Form Factor Desktop Tower
Drive Bays 8 x 2.5"/3.5" SATA/SAS
Power Supply Internal 250W Auto-Switching (100–240V, 50/60Hz)
RAID Support RAID 0, 1, 5, 6, 10, 50, JBOD
Operating Systems Supported Windows, macOS, Linux
Warranty 3 Years Limited

Physical & Environmental
Dimensions (W x D x H) 13 x 5.67 x 10.12 inches
Weight Approx. 14.5 lbs (6.6 kg) without drives
Cooling Dual Smart Cooling Fans
Material Aluminum Chassis
Operating Temperature 5°C to 40°C (41°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity (Operating) 5% to 95% (non-condensing)

Cloud Management & Licensing
RAID Management Interface Web GUI & CLI via HighPoint RAID Management Suite
Included Software RAID Management Utility, Monitoring Tools
Remote Monitoring Capability Yes (via Software)
Licensing Requirement None (Software Included)

Interfaces
Interface Type Thunderbolt 3
Number of Thunderbolt Ports 2
Daisy Chain Support Yes, up to 6 devices
Drive Interface Compatibility SATA 6 Gb/s, SAS 12 Gb/s
Max Data Transfer Rate 40 Gbps (Thunderbolt 3)

Compliance & Origin
Country of Origin China
RoHS Compliant Yes
TAA Compliant No
Certifications CE, FCC, VCCI, BSMI

Advanced Security Features
Data Protection Features RAID Fault Tolerance, Hot-Swap Drive Support

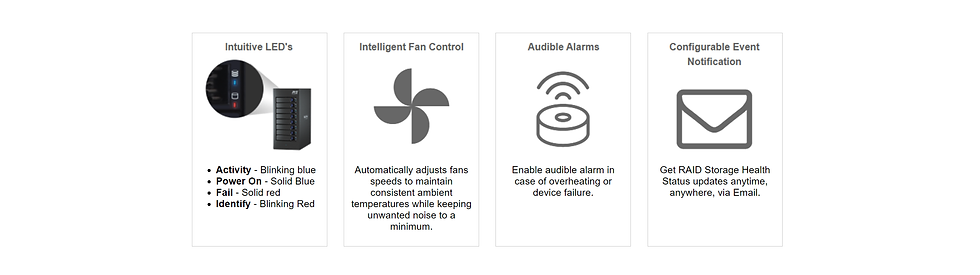

Drive Failure Notification Yes, via LED & Management Software
Rebuild Support Online RAID Rebuild
Drive Access Control Software-based Access Permissions
