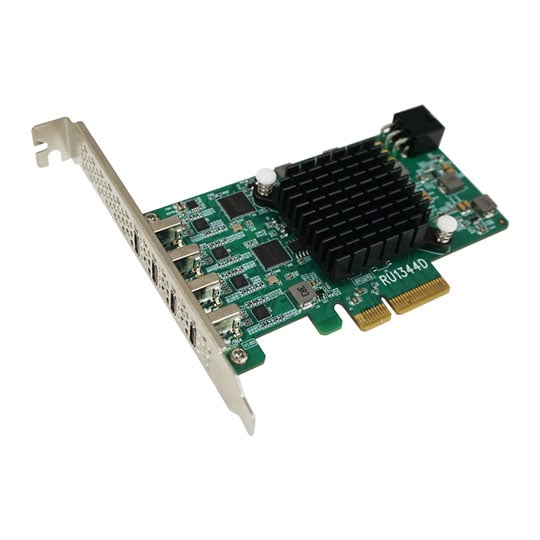

HighPoint RU1344D PCIe 3.0 x4 USB-C 3.2 10Gbps Host Controller

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: RU1344D UPC#: 643653134441
1 3
Photo is for illustration purposes only. Actual product may be different.
$113.00
$113.00
Sale Sold out
Shipping calculated at checkout.
  • Four independent USB-C 3.2 ports supporting 10 Gbps per port
  • Low-profile form factor for space-constrained environments
  • PCI Express 3.0 x4 interface ensures high-bandwidth performance
  • Driverless installation with native xHCI support for Windows, Linux, and VMware
  • Compact dimensions: 4.52 x 2.72 x 0.69 inches
  • Includes 1-year service and support plan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Enable high-speed connectivity with four 10Gbps USB-C 3.2 ports for demanding data applications
  • Simplifies deployment with driverless installation across major operating systems
  • Optimized for professional and compact systems with low-profile PCIe 3.0 x4 design

Product Overview

The HighPoint RU1344D USB-C 3.2 Host Controller delivers four dedicated 10Gbps USB-C ports via a PCIe 3.0 x4 interface. Its low-profile design ensures compatibility with compact systems, and native xHCI support offers driverless setup on Windows, Linux, and VMware. With support for high-bandwidth peripherals and a 1-year service plan, this controller is ideal for professional and industrial applications needing reliable USB-C expansion.

Specifications

Product Overview
Product Type Host Controller
Form Factor Low-Profile
Interface Type PCI Express 3.0 x4
Chipset ASMedia ASM3142
Power Consumption Up to 15W
Host Interface Bandwidth Up to 32Gbps
Warranty 1 Year Service Plan

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin China
TAA Compliant No
RoHS Compliant Yes
EMC Certifications CE, FCC, BSMI
REACH Compliance Yes
Environmental Standards Halogen Free

Advanced Security Features
Secure Boot Compatibility Yes
Hardware-Level Access Control No

Interfaces
Ports 4 x USB Type-C
Maximum Transfer Rate 10 Gbps per port
USB Standard USB 3.2 Gen2
USB Controller xHCI (Extensible Host Controller Interface)
Hot Plug Support Yes
Port Power Output 5V / 900mA per port
Data Transfer Mode SuperSpeed+
Number of Host Channels 4 Independent USB 3.2 Gen2 Channels

Physical & Environmental
Width 4.52 Inch
Depth 2.72 Inch
Height 0.69 Inch
Operating Temperature 0°C to 60°C
Storage Temperature -20°C to 70°C
Humidity Range (Operating) 5% to 85% (non-condensing)
Cooling Passive
Bracket Type Low-Profile and Full-Height Brackets Included

Cloud Management & Licensing
Software Driver Support Native xHCI driver (no driver needed)
Supported Operating Systems Windows, Linux, VMware
