Products Memory, Storage and Components HighPoint RU1411C USB-C 3.2...

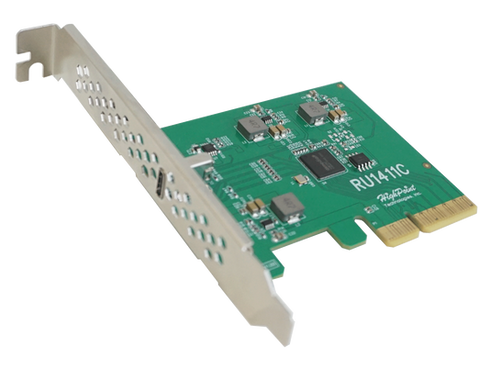

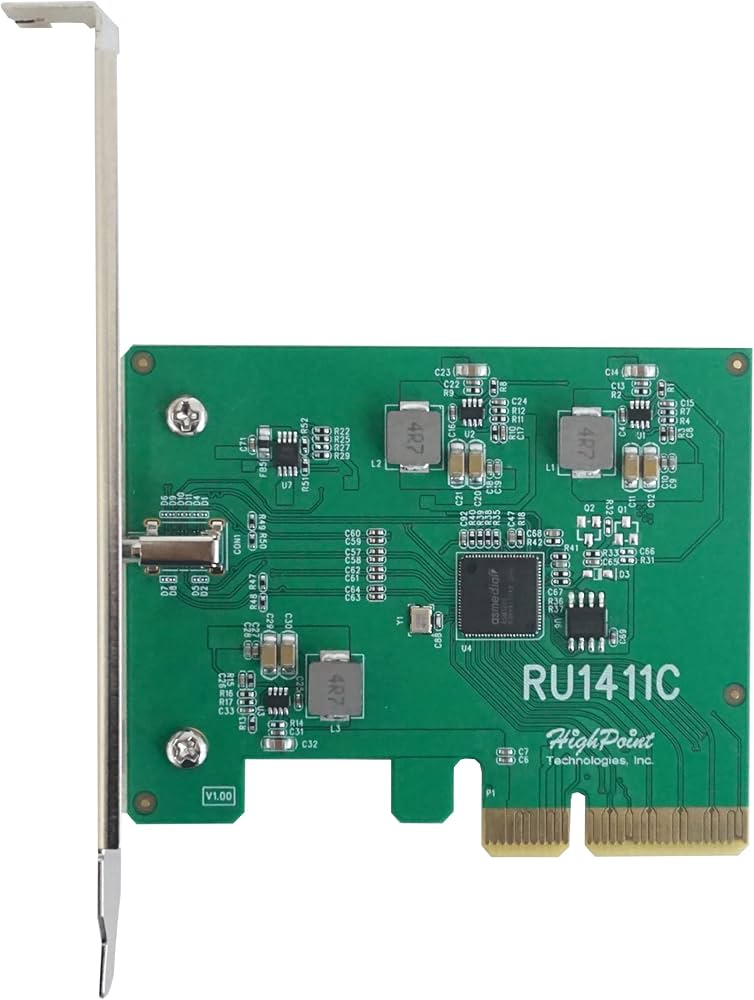

HighPoint RU1411C USB-C 3.2 20Gbps PCIe 3.0 x16 Host Controller

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: RU1411C UPC#: 643653144419
1 5
Photo is for illustration purposes only. Actual product may be different.
$41.00
$41.00
Sale Sold out
Shipping calculated at checkout.
  • - USB-C 3.2 Gen 2x2 host controller with a 20 Gbps data transfer rate
  • - PCIe 3.0 x16 interface for high-bandwidth system integration
  • - Native xHCI support enabling driverless installation
  • - Compatible with Windows and Linux operating systems
  • - One USB-C port with per-port dedicated performance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Enables ultra-fast 20Gbps connectivity for next-gen peripherals via USB-C 3.2
  • - Streamlined setup with native support for Windows and Linux – no drivers required
  • - PCIe 3.0 x16 interface maximizes throughput, reducing bottlenecks in data-intensive workflows

Product Overview

The HighPoint RU1411C is a high-performance USB-C 3.2 host controller offering 20Gbps dedicated data transfer via a single port. With a PCIe 3.0 x16 interface, it supports high-bandwidth applications and is natively compatible with Windows and Linux through xHCI, enabling driverless installation. It is designed for advanced peripheral integration where speed and efficiency matter, though it is non-TAA compliant.

Specifications

Product Overview
Product Type Host Controller
Form Factor Add-in Card
Interface Type PCI Express 3.0 x16
Power Requirements PCIe bus-powered (no external power required)
Operating System Support Windows & Linux
Chipset ASMedia ASM3242
Device Support USB-C 3.2 Gen 2x2 devices
Bus Type PCIe 3.0

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin China
TAA Compliant No
RoHS Compliant Yes
CE Certified Yes
FCC Certified Yes
Reach Compliant Yes

Advanced Security Features
Encryption Support Dependent on connected device
Secure Boot Support Yes, compatible with secure OS environments

Interfaces
External Ports 1 x USB-C 3.2 Gen 2x2 (20Gbps)
Internal Connector None
Number of USB Ports 1
USB Standard Supported USB 3.2 Gen 2x2
Max Data Transfer Rate 20 Gbps
Interface Bandwidth 16GT/s per lane (128Gbps total theoretical maximum for x16)

Physical & Environmental
Card Dimensions 6.55 x 2.16 x 0.72 in (166.5 x 55 x 18.4 mm)
Weight 0.3 lb (136 g)
Operating Temperature 5°C to 40°C (41°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity (Operating) 15% to 85% (non-condensing)
Form Factor Type Low-profile / Full-height bracket included
Cooling Passive heatsink
Mounting Hardware Standard and low-profile bracket included

Cloud Management & Licensing
Software Management Interface None required – driverless installation via xHCI
Licensing Required No
Included Software None
