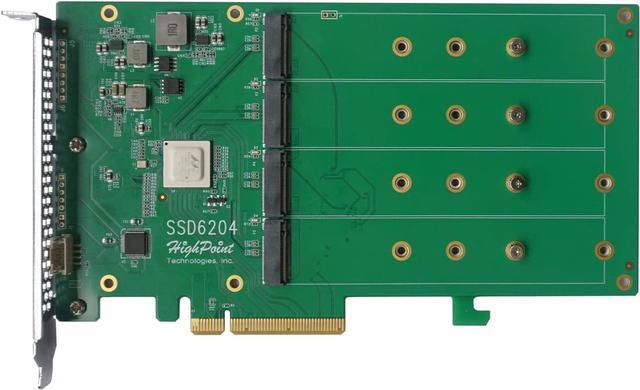

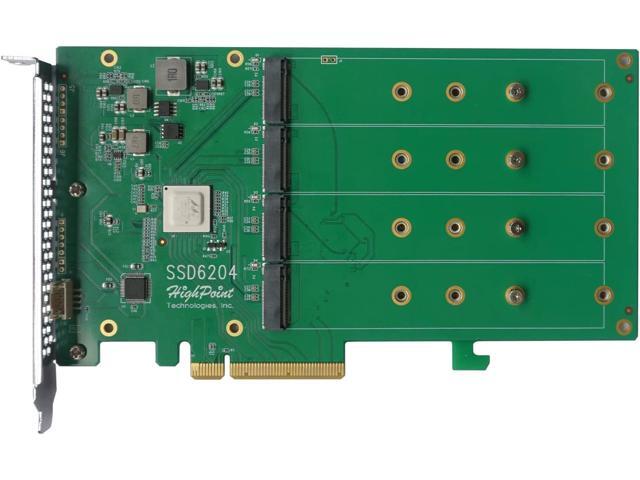

HighPoint SSD6204A PCIe 3.0 x8 4x M.2 NVMe RAID Controller

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: SSD6204A UPC#: 643653620432
1 5
Photo is for illustration purposes only. Actual product may be different.
$224.00
$224.00
Sale Sold out
Shipping calculated at checkout.
  • PCI Express 3.0 x8 interface for high data throughput
  • Supports 4x M.2 NVMe SSDs in RAID 0, RAID 1, and JBOD modes
  • Driverless and bootable RAID functionality
  • Multi-platform RAID management via WebGUI, CLI, BIOS, and UEFI
  • Compatible with Windows, Linux, and macOS systems
  • Full-height form factor with compact design (7.68" x 4.38" x 0.73")

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for professionals needing high-speed NVMe RAID configurations on Windows, Linux, or macOS systems
  • Streamlined integration thanks to driverless and bootable support for fast deployment
  • Flexible RAID management through multiple interfaces including WebGUI, CLI, BIOS, and UEFI

Product Overview

The HighPoint SSD6204A is an advanced RAID controller built for professional-grade storage applications requiring high-speed NVMe performance. Featuring a PCIe 3.0 x8 interface, it supports up to four M.2 NVMe SSDs in full-height form factor. It enables driverless, bootable configurations with support for RAID 0, RAID 1, and JBOD arrays, making it suitable for a broad range of data-intensive and performance-critical environments. The integrated RAID management suite provides multi-platform control through WebGUI, CLI, BIOS, and UEFI interfaces.

Compatibility across Windows, Linux, and macOS operating systems ensures broad deployment versatility. Measuring 7.68 inches wide, 4.38 inches deep, and 0.73 inches high, the SSD6204A fits standard server and workstation builds while offering robust NVMe storage functionality. This controller is manufactured in China and is not TAA compliant, which may be a consideration for government or compliance-sensitive installations.

Ideal for demanding applications such as media production, scientific computation, or large-scale data processing, the HighPoint SSD6204A delivers exceptional throughput and flexible storage management without requiring additional drivers. It is a highly efficient solution for professionals who value high performance and streamlined RAID operation.

Specifications

Product Overview
Product Type RAID Controller
Form Factor Full-Height
Weight 0.85 lbs
Power Requirements Typical: 9.8W, Max: 14.8W
Boot Support UEFI/BIOS Bootable RAID Support

Cloud Management & Licensing
Management Interface WebGUI, CLI, BIOS, UEFI
Operating System Support Windows 10/11, Windows Server, Linux, macOS
License Requirements None (Driverless Operation)
Storage Management Suite HighPoint RAID Management Suite

Physical & Environmental
Width 7.68 Inch
Depth 4.38 Inch
Height 0.73 Inch
Operating Temperature 0°C to 55°C
Storage Temperature -20°C to 80°C
Relative Humidity (Operating) 5% to 60% (non-condensing)

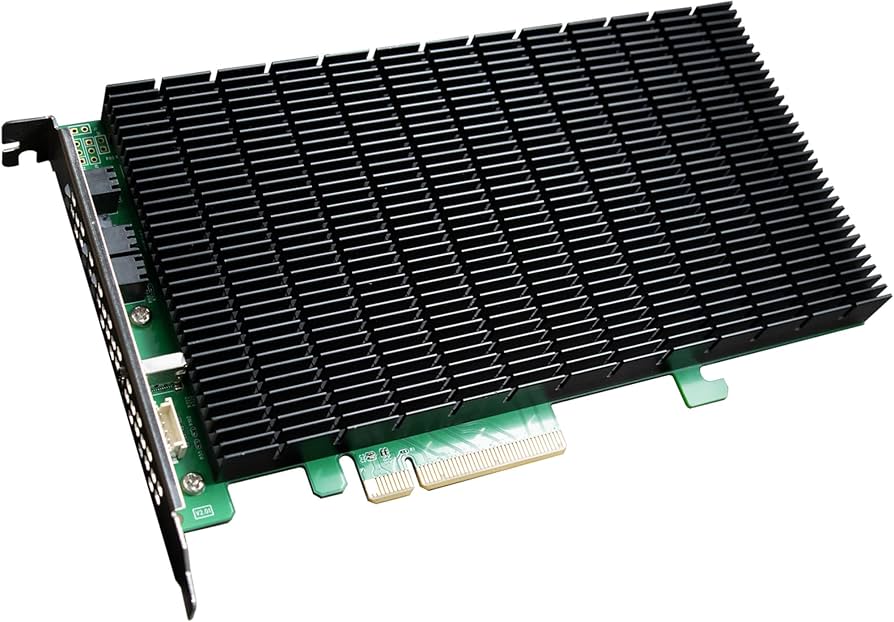

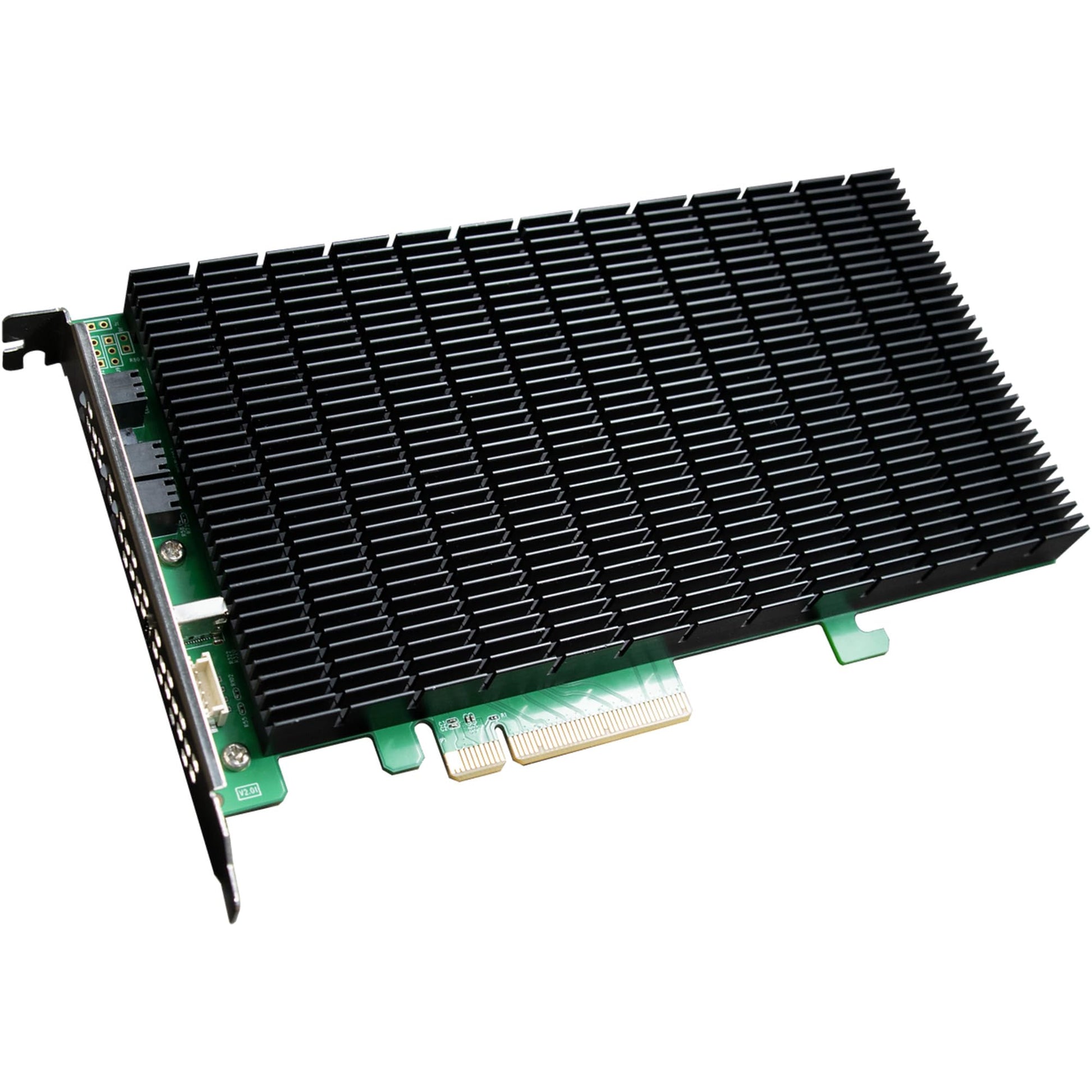

Cooling Passive heatsinks included

Wireless Features

Interfaces
Host Interface PCI Express 3.0 x8
Drive Interface 4x M.2 NVMe
Supported M.2 Interface PCIe Gen3 x4 (NVMe SSDs)
Data Transfer Rate Up to 14,000MB/s
Connector Type M-Key M.2 2280/22110 Slots
Supported RAID Levels RAID 0, RAID 1, JBOD
Number of M.2 Ports 4
NVMe Port Bandwidth Up to 4 GB/s per port

Advanced Security Features
Bootable RAID Support Yes
UEFI Secure Boot Support Yes
Drive Isolation & Encryption Support Dependent on SSD Capabilities

Compliance & Origin
Country of Origin China
TAA Compliance No
RoHS Compliance Yes
CE Certification Yes
FCC Certification Yes
WEEE Compliance Yes
REACH Compliance Yes
