| Product Type | External PCIe NVMe RAID Storage Enclosure |
| Model | HighPoint SSD6540 |
| Form Factor | Tower |
| Number of Bays | 4 |
| Supported Drive Types | 2.5" U.2 NVMe SSDs |
| RAID Levels Supported | RAID 0, 1, 10 |
| Weight | 6.6 lbs (3.0 kg) |
| Power Supply | 250W Internal PSU |
| Voltage Required | 100–240V AC, 50/60Hz |
| Cooling | 2 x 80mm Smart Cooling Fans |

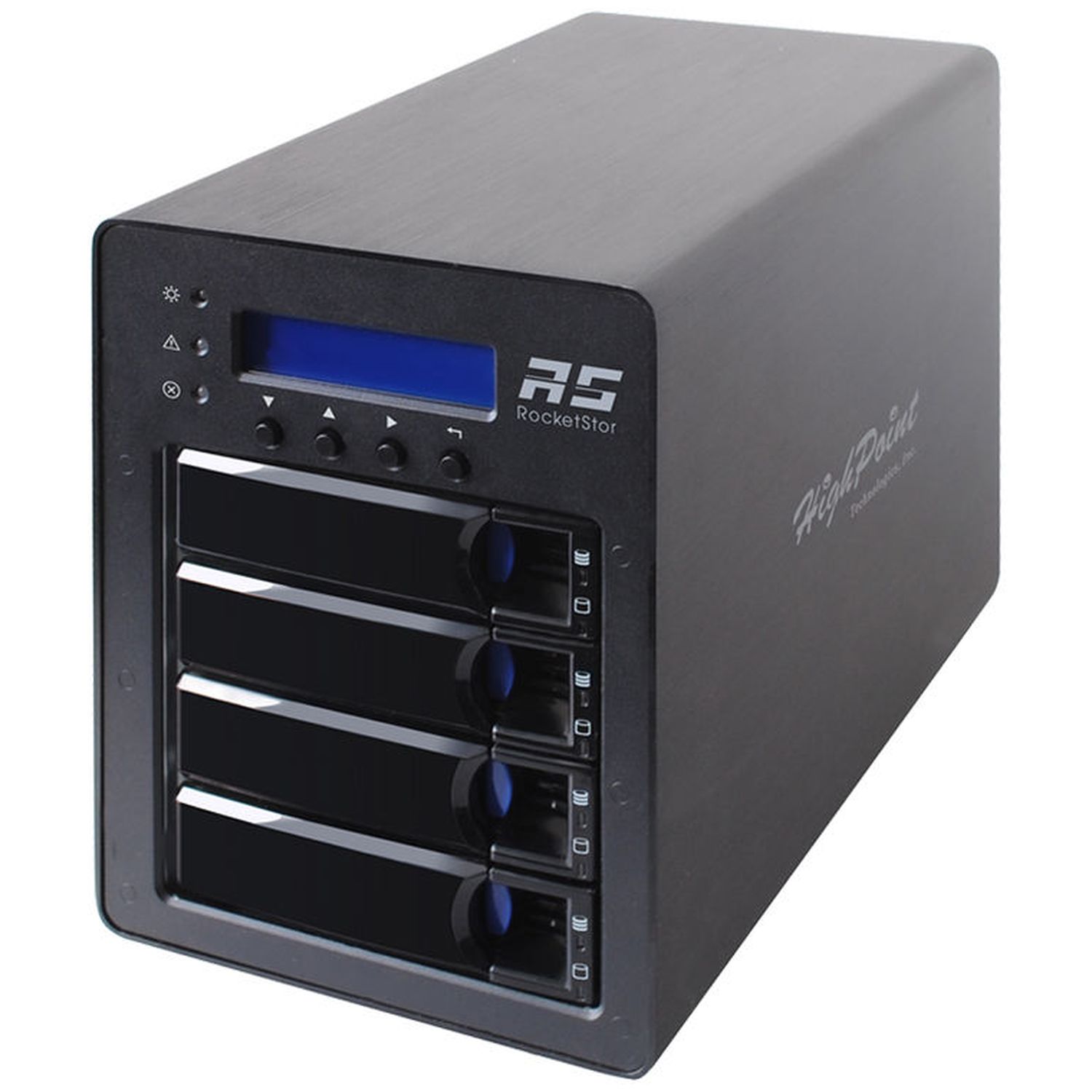

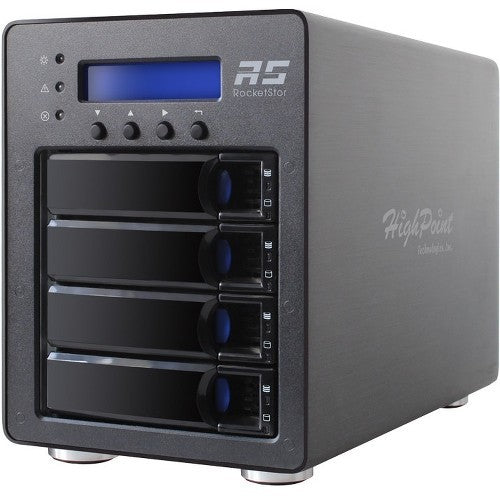

HighPoint SSD6540 PCIe 3.0 x16 4-Bay U.2 NVMe RAID Enclosure
Photo is for illustration purposes only. Actual product may be different.
Regular price
$1,194.00
Regular price
Sale price
$1,194.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- 4-bay U.2 NVMe RAID enclosure with PCIe 3.0 x8 interface
- Supports RAID levels 0, 1, and 10 for performance or data redundancy
- Compatible with Windows 11, macOS, and Linux operating systems
- 250W integrated power supply with 100–240V input support
- Includes WebGUI and CLI tools for RAID management
- Front LCD panel and LED indicators for system monitoring
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Offers high-speed PCIe 3.0 x8 throughput for low-latency NVMe storage applications
- Cross-platform support enables seamless integration into diverse IT ecosystems
- User-friendly management features enhance administrative control and reduce downtime
Product Overview

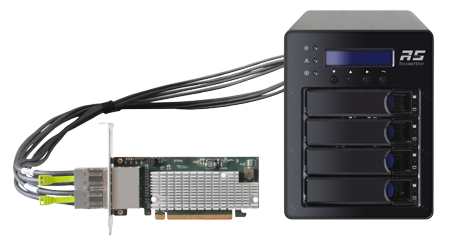

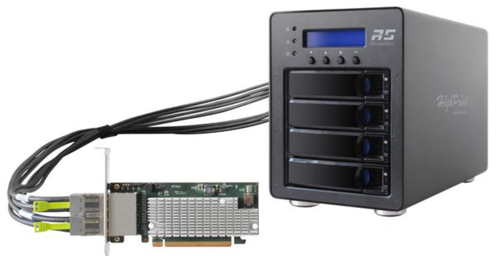

The HighPoint SSD6540 is a high-performance PCIe 3.0 RAID storage enclosure featuring four U.2 NVMe bays and a dedicated PCIe 3.0 x16 controller card. With support for RAID 0, 1, and 10, it enables both high-speed and redundant data configurations. The system is cross-platform compatible with Windows, macOS, and Linux, and offers comprehensive RAID management via WebGUI and CLI. A 250W power supply and LCD/LED indicators enhance reliability and usability, making it ideal for professional data workflows.
Specifications
Product Overview
Cloud Management & Licensing
| RAID Management Interface | WebGUI, CLI |
| OS Compatibility | Windows, macOS, Linux |
| Software License Included | Yes, management utilities included |
Physical & Environmental
| Width | 5.79 in (147 mm) |
| Depth | 10.24 in (260 mm) |
| Height | 7.68 in (195 mm) |
| LED Indicators | Power, Activity, Warning |
| LCD Display | Front Panel LCD Status Display |
| Operating Temperature | 5°C to 35°C (41°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 5% – 85% (non-condensing) |
| Storage Humidity | 5% – 95% (non-condensing) |
| Cooling Type | Active Cooling |
Service & Support
| Warranty | 2 Years Limited Manufacturer Warranty |
| Support Type | Tech Support via Web, Phone, Email |
Interfaces
| Host Interface | PCIe 3.0 x16 |
| Drive Interface | PCIe 3.0 x4 per bay |
| Number of Drive Interfaces | 4 x U.2 NVMe |
| Data Transfer Rate | Up to 128Gbps total |
| External Connectivity | Mini-SAS HD (SFF-8644) |
Advanced Security Features
| Drive Health Monitoring | Yes |
| Secure RAID Recovery | Yes |
| RAID Status Alerts | Yes, via email and GUI |
Compliance & Origin
| Certifications | CE, FCC, RoHS |
| TAA Compliant | No |
| Country of Origin | China |
