HighPoint SSD7101A-1 PCIe 3.0 x16 4x M.2 NVMe RAID Controller

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: SSD7101A-1 UPC#: 643653710119
1 4

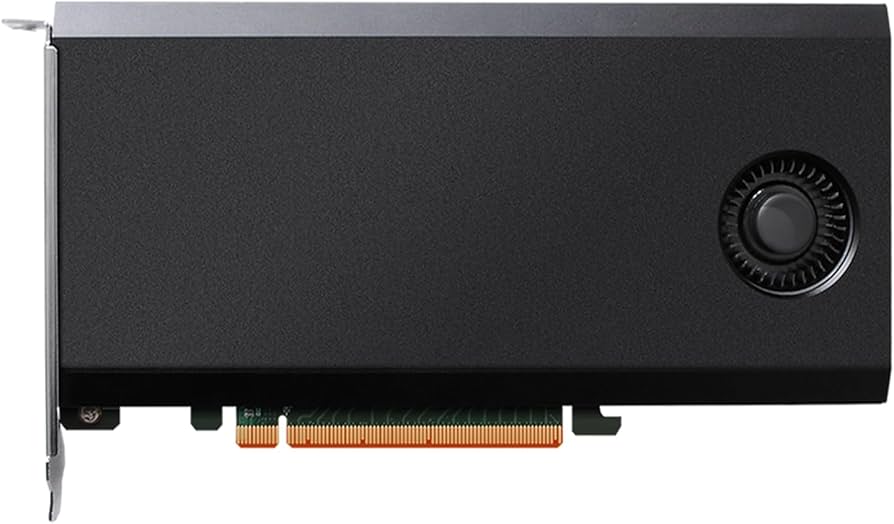

Photo is for illustration purposes only. Actual product may be different.
$597.00
$597.00
Sale Sold out
Shipping calculated at checkout.
  • PCIe 3.0 x16 interface for maximum bandwidth
  • Supports 4x M.2 NVMe SSDs in full-height form factor
  • RAID levels 0, 1, 10, and single disk configurations
  • Cross-platform OS support: Windows, Linux, macOS
  • Multiple RAID management options: WebGUI, CLI, BIOS/UEFI
  • Compact dimensions: 8.31" x 4.37" x 0.67"

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-speed NVMe storage via PCIe 3.0 x16 for performance-intensive workflows
  • Supports multiple RAID levels and OS platforms, providing flexible deployment in heterogeneous environments
  • Professional-grade manageability through WebGUI, CLI, and BIOS/UEFI simplifies system administration

Product Overview

The HighPoint SSD7101A-1 PCIe 3.0 x16 RAID controller is engineered to deliver elite-level storage performance for workstation and server applications. It supports up to four M.2 NVMe SSDs and leverages a full x16 PCI Express Gen 3.0 interface to maximize throughput. Designed in a full-height form factor, the controller integrates seamlessly into compatible systems and is built for mission-critical applications requiring consistent, high-speed data transactions.

This unit supports RAID levels 0, 1, 10, and single-disk configurations, allowing it to cater to various performance and redundancy needs. It offers versatile management through WebGUI, Command Line Interface (CLI), and BIOS/UEFI controls. The controller is OS agnostic, supporting Windows, Linux, and macOS environments, making it an excellent choice for enterprise, content creation, or scientific computing workflows across diverse platforms.

Manufactured in China and not TAA compliant, this controller measures 8.31 inches in width, 4.37 inches in depth, and 0.67 inches in height. Its industrial-grade build and cross-platform RAID support make it a robust solution where speed, flexibility, and scalability are key priorities.

Specifications

Product Overview
Product Type RAID Controller
Model Name SSD7101A-1
Form Factor Full-Height
Supported RAID Levels RAID 0, 1, 10, Single Disk
Weight 0.99 lbs (approximate)
Power Requirements PCIe Slot Power (Max 14.8W)
Designed For Workstations, Servers
Operating System Support Windows, Linux, macOS

Cloud Management & Licensing
Management Interfaces WebGUI, CLI, BIOS/UEFI
Driver/Software Compatibility Cross-platform RAID driver support
Monitoring Features Temperature Monitoring, Drive Health
RAID Management Utility HighPoint Web RAID Management Interface

Compliance & Origin
Country of Origin China
TAA Compliant No
Certifications CE, FCC, RoHS
Environmental Compliance RoHS Compliant
UPC 643653710119
Manufacturer HighPoint Technologies, Inc.

Interfaces
Host Interface PCI Express 3.0 x16
Device Interface 4x M.2 NVMe
M.2 Interface Type PCIe Gen3 x4 per slot
Number of M.2 Ports 4
Supported M.2 Lengths 2242/2260/2280/22110
Total Transfer Bandwidth Up to 128Gbps
NVMe SSD Support M.2 NVMe SSDs only
Drive Interface Standard NVMe 1.2 or newer

Physical & Environmental
Width 8.31 Inch
Depth 4.37 Inch
Height 0.67 Inch
Cooling Active Cooling (Aluminum heatsink and fan)
Operating Temperature 0°C to 65°C (32°F to 149°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Relative Humidity (Operating) 5% to 85% (non-condensing)

Advanced Security Features
RAID Data Redundancy Yes (RAID 1 & 10 offer mirroring support)
Bootable RAID Support Yes
Secure Boot Support Yes (via BIOS/UEFI integration)
