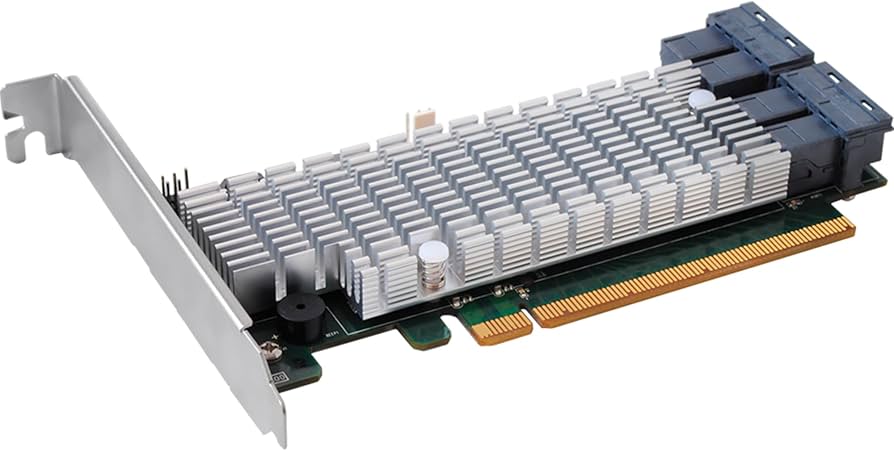

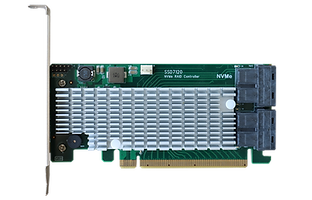

HighPoint SSD7120 PCIe 3.0 x16 4-Channel U.2 NVMe RAID Controller

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: SSD7120 UPC#: 643653712014
1 5
Photo is for illustration purposes only. Actual product may be different.
$589.00
$589.00
Sale Sold out
Shipping calculated at checkout.
  • PCIe 3.0 x16 interface for high-speed data throughput
  • Supports up to 4x Internal U.2/U.3 or M.2 NVMe ports
  • RAID levels 0, 1, 10, and Single supported
  • Low-profile form factor (5.72" x 2.72" x 0.67")
  • RAID management via WebGUI, CLI, BIOS, and UEFI
  • OS compatibility includes Windows, Linux, and macOS

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • High-speed PCIe 3.0 x16 interface enables rapid data access and transfer for demanding workloads
  • Multi-platform support across Windows, Linux, and macOS broadens deployment flexibility
  • Compact, low-profile design fits space-constrained systems without sacrificing performance

Product Overview

The HighPoint SSD7120 is a versatile and high-performance RAID controller built for professionals and enterprises seeking robust NVMe storage solutions. Utilizing a PCIe Gen3 x16 interface, it delivers exceptional data throughput for intensive workloads including content creation and data analytics. With support for up to four internal U.2, U.3, or M.2 NVMe SSDs, it offers deployment flexibility across applications.

This low-profile RAID card supports RAID levels 0, 1, 10, and Single, and is compatible with Windows, Linux, and macOS. Management is streamlined via WebGUI, CLI, BIOS, and UEFI interfaces. Compact dimensions make it ideal for tight chassis environments, and while it's not TAA-compliant, it’s well-suited for commercial deployments. For compact, high-performance NVMe RAID capabilities, the SSD7120 delivers performance and flexibility.

Specifications

Product Overview
Product Type RAID Controller
Form Factor Low profile
Model SSD7120
Interface PCIe 3.0 x16
RAID Levels Supported RAID 0, 1, 10, Single
Compatible Operating Systems Windows 10, Windows Server 2012 R2 or later, Linux, macOS
Power Requirements Max 18.6W
Weight Approximately 0.72 lbs (325g)

Wireless Features
Wireless Connectivity

Compliance & Origin
Country of Origin China
TAA Compliance No
RoHS Compliance Yes
Certifications CE, FCC, RoHS

Advanced Security Features
Secure Boot Support Yes (UEFI integration)
Drive Health Monitoring Yes (via SMART, temperature sensors)
Data Recovery Mode RAID rebuild available via management tools
Password Protection No hardware-based security

Interfaces
Host Interface PCIe 3.0 x16
Drive Interface U.2 (SFF-8639), compatible with U.3 and M.2 via adapter
Number of Channels 4
NVMe Ports 4 x U.2 connectors
Data Transfer Rate Up to 14,000 MB/s aggregate throughput
Supported Devices NVMe SSDs (U.2, U.3, M.2 via adapter)

Physical & Environmental
Width 5.72 inch (145.3 mm)
Depth 2.72 inch (69.2 mm)
Height 0.67 inch (17 mm)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Relative Humidity (Operating) 5% to 85% non-condensing
Relative Humidity (Storage) 5% to 95% non-condensing
Cooling Passive heatsink

Cloud Management & Licensing
Management Interface WebGUI, Command Line Interface (CLI), BIOS, UEFI
Driver Support Windows, Linux, macOS
Monitoring Features Temperature monitoring, SMART status
Licensing Requirements None; hardware RAID supported natively
Firmware Upgrade Upgradable via WebGUI or CLI tools
