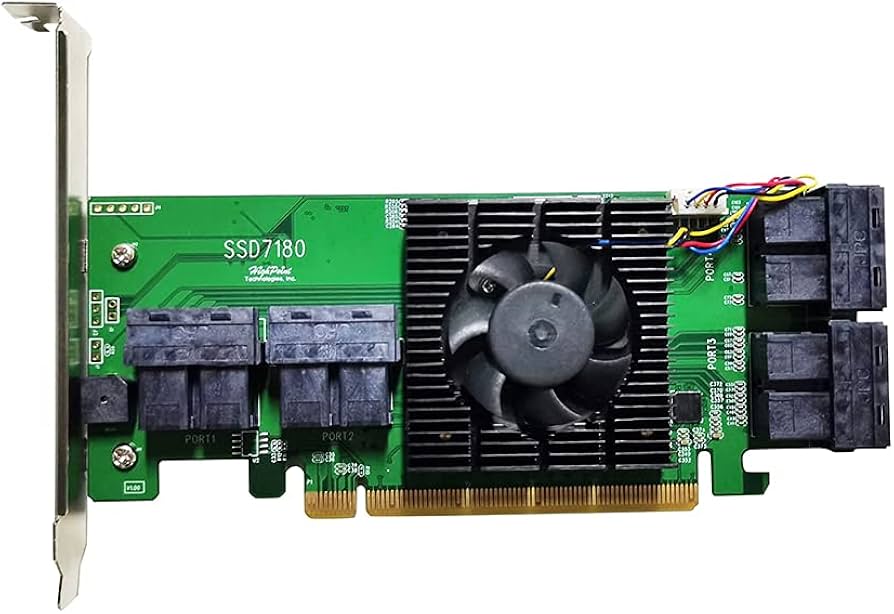

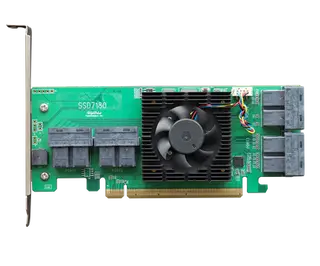

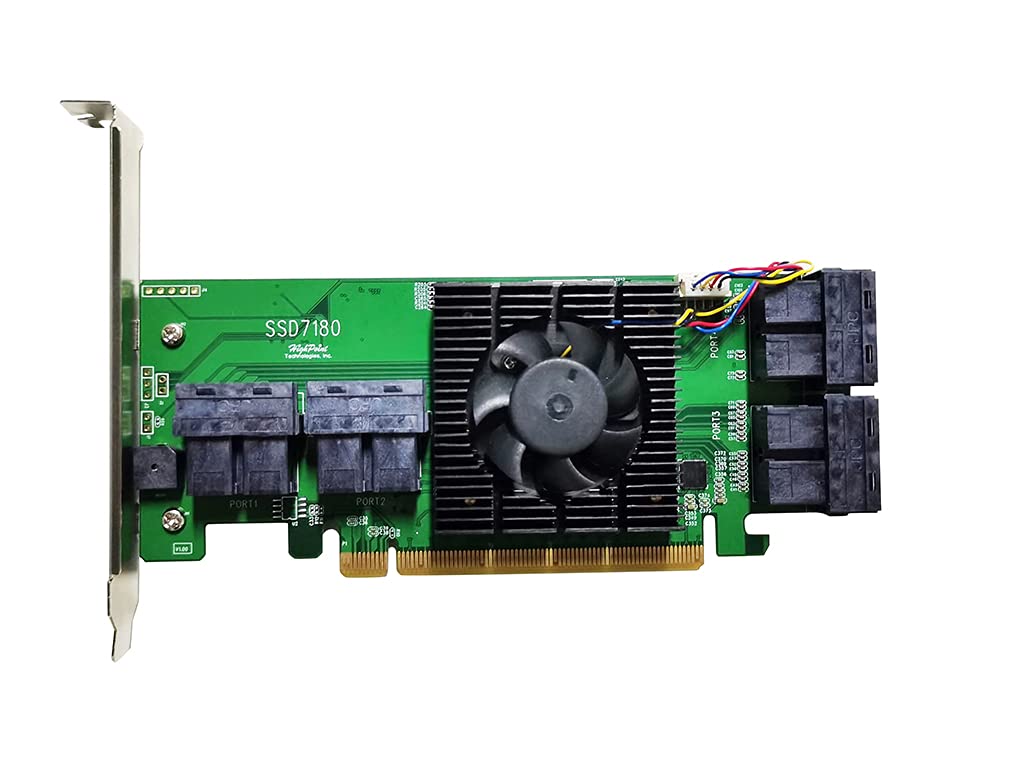

HighPoint SSD7180 PCIe Gen3 x16 8-Channel U.2 NVMe RAID Controller

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: SSD7180 UPC#: 643653718016
1 5
Photo is for illustration purposes only. Actual product may be different.
$884.00
$884.00
Sale Sold out
Shipping calculated at checkout.
  • PCI Express 3.0 x16 interface for high data throughput
  • Supports 8 internal U.2/U.3 or M.2 NVMe ports
  • RAID levels 0, 1, 10, and Single supported
  • Compatible with Windows and Linux operating systems
  • Multiple RAID management methods: WebGUI, CLI, BIOS, and UEFI
  • Low-profile form factor for compact system integration

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports up to eight NVMe drives, enabling high-capacity, high-speed storage arrays for data-intensive applications
  • Versatile RAID management options (WebGUI, CLI, BIOS, UEFI) streamline system administration and integration
  • Cross-platform OS support enhances deployment flexibility across diverse IT infrastructures

Product Overview

The HighPoint SSD7180 is an advanced RAID controller with 8 internal U.2/U.3 or M.2 NVMe ports supported via PCIe 3.0 x16 interface. Offering RAID 0, 1, 10, and Single options, it delivers flexible performance and redundancy. Its low-profile form factor fits compact systems, and it supports both Windows and Linux OS. Configuration is streamlined via WebGUI, CLI, BIOS, and UEFI, making it ideal for modern enterprise environments. Designed for high-performance storage clusters, its hardware is built to integrate seamlessly despite its non-TAA status.

Specifications

Product Overview
Product Type RAID Controller
Model Name HighPoint SSD7180
Manufacturer HIGHPOINT TECHNOLOGIES, INC.
Manufacturer Part Number SSD7180
UPC 643653718016
Form Factor Low profile
Interface Type PCIe 3.0 x16
RAID Levels Supported RAID 0, 1, 10, Single
Operating System Support Windows, Linux
Power Consumption Maximum 8.6W
Controller Chipset Broadcom SAS3416 NVMe RAID Processor
Cache Memory No onboard cache (host-based RAID)

Physical & Environmental
Width 6.55 Inch
Depth 2.71 Inch
Height 0.83 Inch
Operating Temperature 0°C to 65°C (32°F to 149°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 5% to 90% (non-condensing)

Cloud Management & Licensing
Management Interfaces WebGUI, Command Line Interface (CLI), BIOS & UEFI Tool
Firmware Update Method Via WebGUI or CLI utility
Licensing Requirements No additional licensing required
Remote Management Support Yes, browser-based WebGUI

Interfaces
Internal Device Ports 8 x U.2/U.3 NVMe
Connector Type SlimSAS (SFF-8654)
Max Devices Supported 8 NVMe SSDs
PCIe Lane Support x16 lanes with direct-to-CPU architecture
Data Transfer Rate Up to 14,000 MB/s (read), 13,000 MB/s (write)
Hot-Plug Support Yes
NVMe Protocol Version NVMe 1.3 compliant

Compliance & Origin
Country of Origin CHINA
TAA Compliance No
RoHS Compliance Yes
Certification Standards CE, FCC, RoHS

Advanced Security Features
Bootable RAID Support Yes
Secure Boot Compatibility Yes
Disk Health Monitoring SMART Monitoring supported
RAID Recovery Features Auto-rebuild, Email Notification, RAID Roaming
