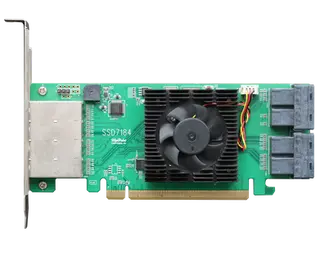

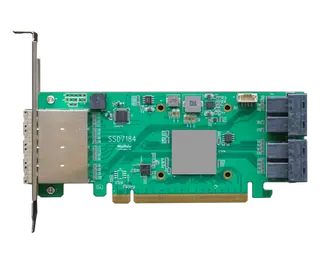

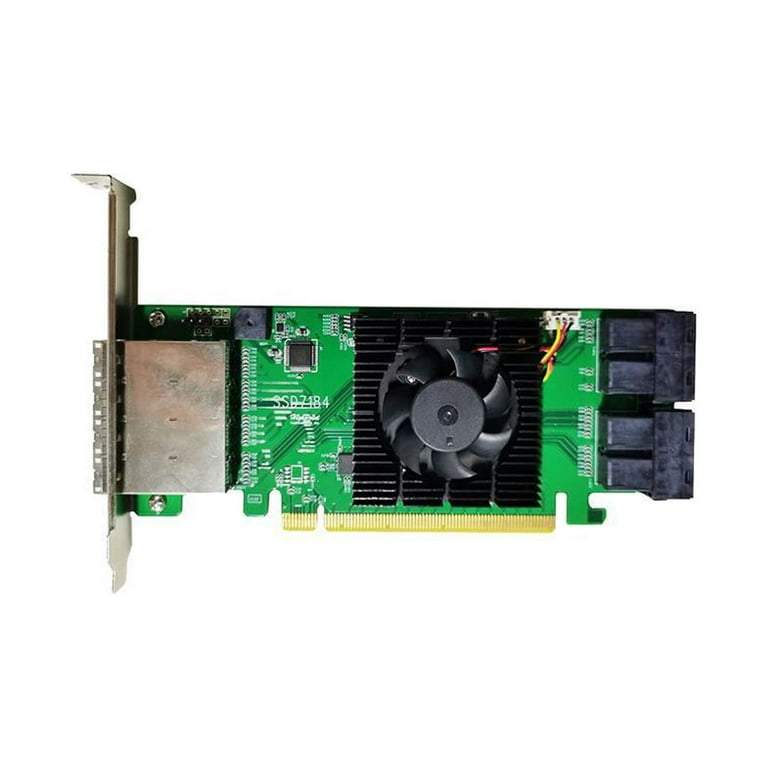

HighPoint SSD7184 PCIe Gen3 x16 8-Channel NVMe RAID Controller

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: SSD7184 UPC#: 643653718412
1 5
Photo is for illustration purposes only. Actual product may be different.
$884.00
$884.00
Sale Sold out
Shipping calculated at checkout.
  • RAID controller with low-profile form factor for space-constrained installations
  • 8-channel support for internal and external U.2/U.3 or M.2 NVMe devices
  • PCI Express 3.0 x16 interface for high-bandwidth data throughput
  • Supports RAID levels 0, 1, 10, and Single mode
  • RAID configuration and monitoring via WebGUI, CLI, BIOS, and UEFI
  • Compatible with both Windows and Linux operating systems

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal choice for professionals seeking high-throughput NVMe RAID with PCIe Gen3 x16 bandwidth.
  • Versatile RAID level support and OS compatibility ensure deployment flexibility across platforms.
  • Low-profile form factor enables easy integration into rackmount and compact systems.

Product Overview

The HighPoint SSD7184 PCIe Gen3 x16 RAID controller is engineered for high-performance NVMe storage in professional environments. Supporting 8 U.2/U.3 or M.2 devices through internal and external ports, and leveraging a PCIe 3.0 x16 interface, it is ideal for data-intensive applications. RAID levels 0, 1, 10, and Single offer performance and redundancy options, with management supported via WebGUI, CLI, BIOS, and UEFI for both Windows and Linux systems. Its low-profile form factor facilitates easy integration into workstations or server enclosures.

Specifications

Product Overview
Product Type RAID Controller
Form Factor Low profile
Weight 0.63 lbs (approximately 285g)
Power Requirements PCIe bus-powered; typical 22.5W

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin CHINA
TAA Compliance No
RoHS Compliance Yes
CE Certification Yes
FCC Certification Yes
UL Certification Yes

Advanced Security Features
TRIM Support Yes
SMART Monitoring Yes
Data Protection Features RAID 1, RAID 10 redundancy

Interfaces
Host Interface PCIe 3.0 x16
Device Interfaces 8x U.2/U.3 or M.2 NVMe connections
Port Count 8
Data Transfer Rate Up to 14,000 MB/s
Supported Devices NVMe SSDs (U.2/U.3 or M.2 via adapters)
Supported RAID Levels RAID 0, 1, 10, JBOD (Single)
Connector Type MiniSAS HD (SFF-8643)
Internal Ports 4x SFF-8643
External Ports 0 (all internal via breakout cables)

Physical & Environmental
Width 6.55 Inch
Depth 2.71 Inch
Height 0.83 Inch
Operating Temperature 0°C to 65°C (32°F to 149°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 5% to 60% (non-condensing)
MTBF Over 1,500,000 hours

Cloud Management & Licensing
Management Interfaces WebGUI, CLI, BIOS, UEFI
Operating System Support Windows and Linux
Hot Plug Support Yes
Bootable RAID Support Yes
Driver Support Windows 11/10, Windows Server, RHEL, CentOS, Ubuntu
RAID Management Software HighPoint WebGUI, CLI
