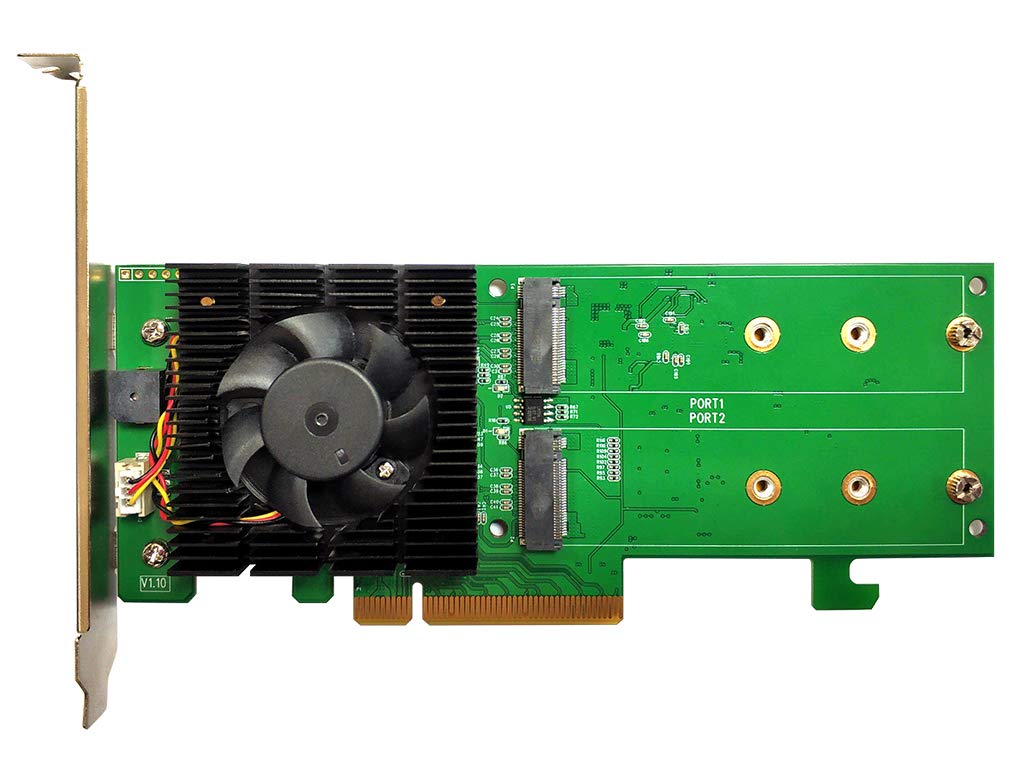

HighPoint SSD7202 PCIe 3.0 x8 Dual M.2 NVMe RAID Controller

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: SSD7202 UPC#: 643653720217
1 5
Photo is for illustration purposes only. Actual product may be different.
$421.00
$421.00
Sale Sold out
Shipping calculated at checkout.
  • Supports PCIe 3.0 x8 interface for high bandwidth throughput

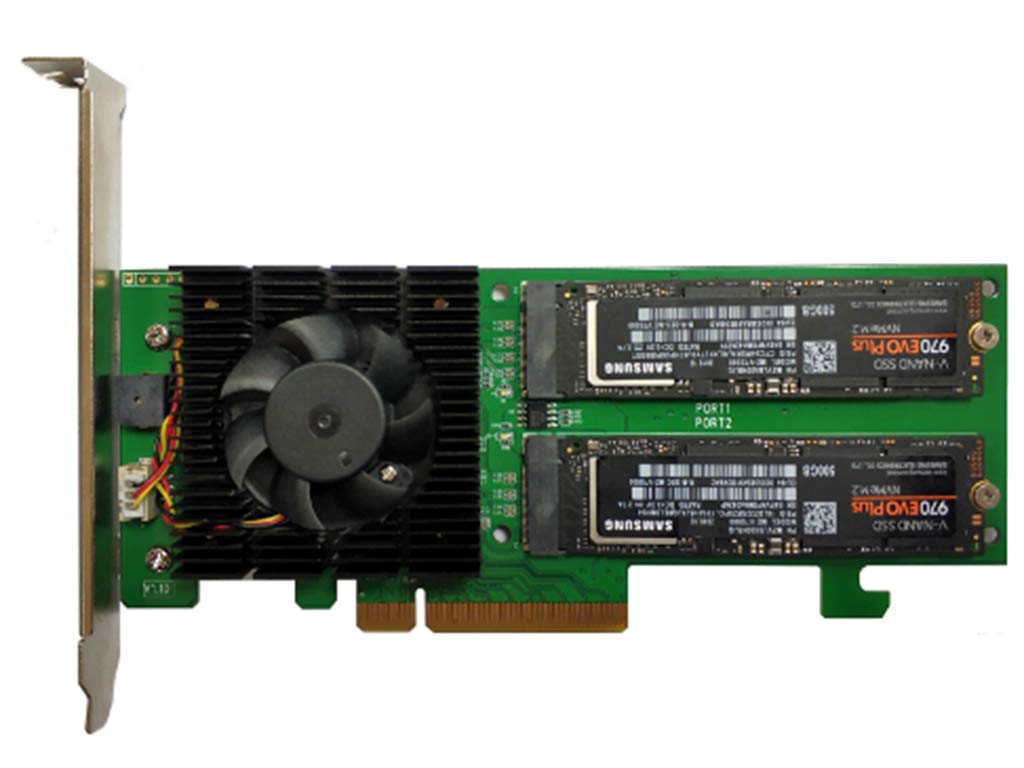

  • Accommodates two M.2 NVMe SSDs for performance storage configuration
  • Compatible with Windows, Linux, and macOS operating systems
  • RAID levels supported: 0, 1, 10, and Single Drive mode
  • Low-profile form factor for space-restricted installations
  • RAID management via WebGUI, CLI, BIOS, and UEFI

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Provides flexible RAID configuration options for performance or redundancy needs
  • Offers broad OS compatibility, maximizing versatility across different environments
  • Compact design enhances integration into a range of desktop and workstation builds

Product Overview

The HighPoint SSD7202 is a high-performance PCIe 3.0 x8 NVMe RAID controller designed to accommodate two M.2 NVMe SSDs. Supporting RAID 0, 1, 10, and single-drive modes, it ensures flexibility in configuring performance and redundancy. With a low-profile form factor, it integrates into compact systems easily. Compatible with Windows, Linux, and macOS, it offers extensive RAID management tools via WebGUI, CLI, BIOS, and UEFI. Measuring 6.61" x 2.71" x 0.67", the SSD7202 is ideal for high-performance desktops and workstations requiring scalable storage acceleration.

Specifications

Product Overview
Product Type RAID Controller
Form Factor Low-Profile
Weight 0.35 lbs
Power Requirements Max. 18.5W
Power Connector Optional 4-pin power connector for additional power
Supported RAID Levels RAID 0, 1, 10, Single
Operating System Support Windows 10/11, Linux Kernel 3.10+, macOS 10.13 and later

Wireless Features

Compliance & Origin
Country of Origin CHINA
TAA Compliance No
RoHS Compliant Yes
CE Certification Yes
FCC Certification Yes

Advanced Security Features
Data Protection Features Auto Rebuild, S.M.A.R.T. monitoring, TRIM support
Secure Boot Support Yes
Bootable RAID Support Yes
UEFI Boot Support Yes

Interfaces
Host Interface PCI Express 3.0 x8
Drive Interface M.2 NVMe (PCIe 3.0 x4)
Number of M.2 Slots 2
Drive Connector Type M-key M.2 (2242/2260/2280/22110)
Maximum Transfer Rate Up to 14,000 MB/s (RAID 0)
Port Configuration 2x internal M.2 slots
PCIe Lane Configuration 8 lanes

Physical & Environmental
Width 6.61 inch
Depth 2.71 inch
Height 0.67 inch
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Relative Humidity (Operating) 10% to 90% (non-condensing)
Relative Humidity (Storage) 5% to 95% (non-condensing)

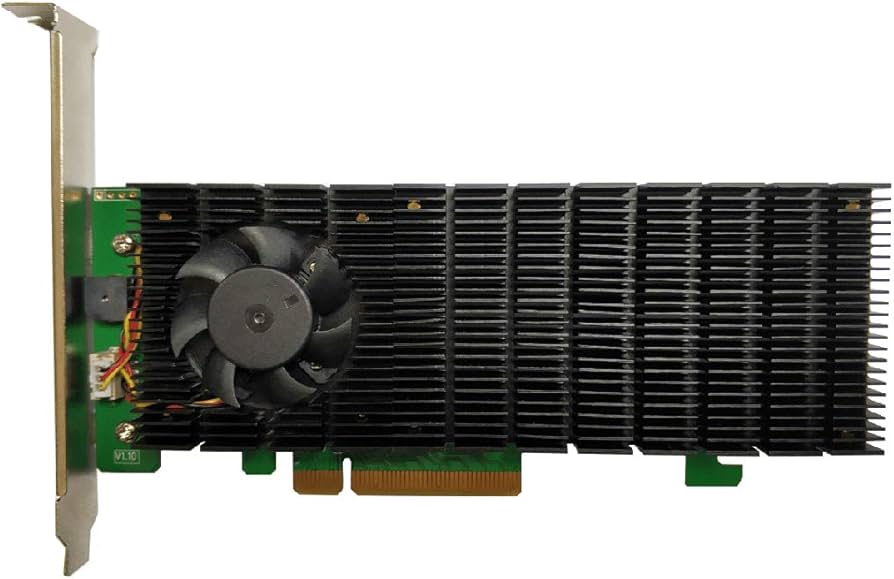

Cooling Aluminum heatsink

Cloud Management & Licensing
Management Interface WebGUI, CLI, BIOS UI, UEFI Utility
RAID Management Software SSD7202 RAID Management Suite
Driver Availability Available for Windows, macOS, Linux
Firmware Upgradeable Yes
Monitoring Features Drive health, temperature, event notifications
