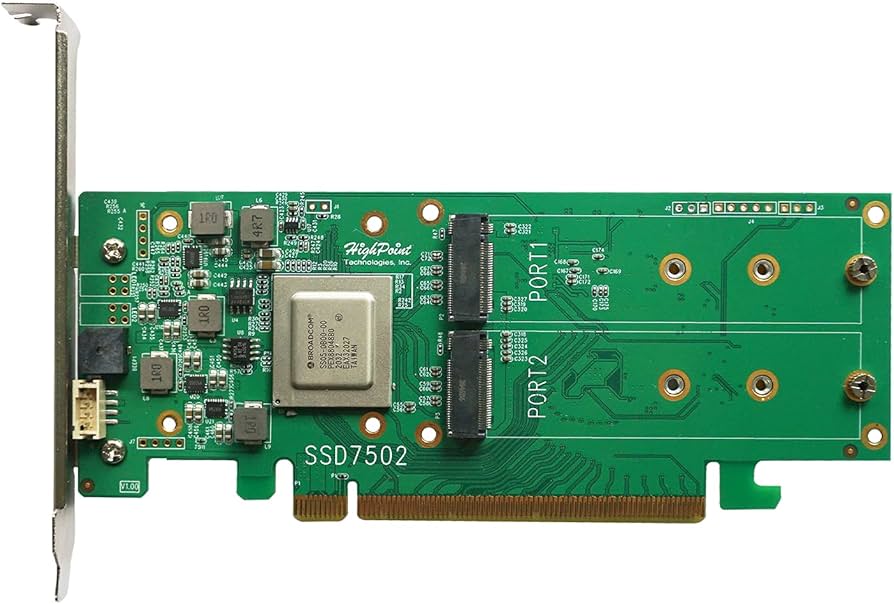

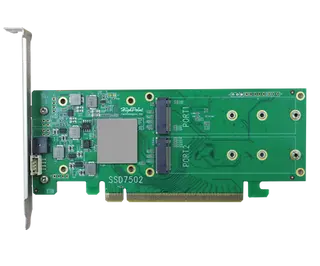

HighPoint SSD7502 PCIe 4.0 x16 2x M.2 NVMe RAID Controller

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: SSD7502 UPC#: 643653750214
1 5
Photo is for illustration purposes only. Actual product may be different.
$772.00
$772.00
Sale Sold out
Shipping calculated at checkout.
  • Bootable PCIe 4.0 x16 RAID controller with 2x M.2 NVMe ports
  • Supports RAID levels 0, 1, and single drive configurations
  • Compatible with Windows, Linux, and macOS operating systems
  • Multiple management interfaces: WebGUI, CLI, BIOS, UEFI
  • Compact half-height form factor (6.57" x 2.72" x 0.8")
  • Designed for high-throughput, storage-intensive environments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Offers high-speed storage expansion via PCIe 4.0 x16 interface with support for M.2 NVMe SSDs
  • Cross-platform compatibility across Windows, Linux, and macOS enhances deployment flexibility
  • Advanced RAID management options through WebGUI, CLI, BIOS, and UEFI make administration efficient

Product Overview

The HighPoint SSD7502 PCIe 4.0 x16 RAID controller is engineered for high-throughput data environments requiring ultra-fast NVMe storage. Featuring two M.2 NVMe ports, it enables RAID 0, RAID 1, or single drive setups, offering both performance scalability and data redundancy. Its bootable capability and compatibility with Windows, Linux, and macOS systems make it a flexible solution for enterprise applications.

Designed in a compact half-height form factor, the SSD7502 fits a wide range of professional systems. Multiple management tools such as WebGUI, CLI, BIOS, and UEFI provide granular control over RAID. Though not TAA-compliant, this China-manufactured controller supports next-gen NVMe storage workflows for content creation, software development, and other data-intensive tasks.

Specifications

Product Overview
Product Type RAID Controller
Manufacturer HIGHPOINT TECHNOLOGIES, INC.
Model SSD7502
Form Factor Half-Height
Weight 0.21 lbs (approximate)
Power Requirements Max 9.8W
Bootable Support Yes
RAID Levels Supported RAID 0, RAID 1, Single Disk

Wireless Features

Compliance & Origin
Country of Origin China
TAA Compliance No
Certifications CE, FCC, RoHS

Advanced Security Features
Data Protection RAID 1 mirroring for data redundancy
UEFI Boot Support Yes
Secure Boot Compatibility Yes

Interfaces
Host Interface PCIe 4.0 x16
Drive Interface M.2 NVMe
M.2 Slots 2 x M.2 2280/22110 NVMe
Supported Protocol NVMe 1.3
Max SSD Bandwidth 14GB/s (Read), 9.4GB/s (Write) (RAID 0)
PCIe Lanes 16 lanes
Hot Plug Support No

Physical & Environmental
Width 6.57 Inch
Depth 2.72 Inch
Height 0.8 Inch
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 85% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)

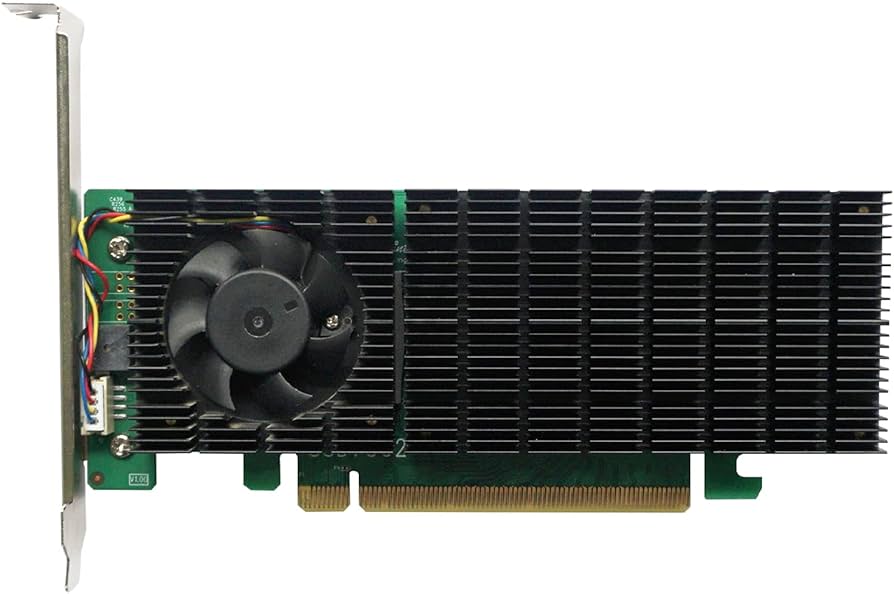

Cooling Aluminum heat sink with low-noise fan

Cloud Management & Licensing
Management Interface WebGUI, CLI, BIOS, UEFI
Driver Support Windows, Linux, macOS
License Type No additional licensing required
Included Software HighPoint RAID Management Suite
