HighPoint SSD7505 PCIe 4.0 x16 4-Port M.2 NVMe RAID Controller

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: SSD7505 UPC#: 643653750511
1 5
Photo is for illustration purposes only. Actual product may be different.
$983.00
$983.00
Sale Sold out
Shipping calculated at checkout.
  • PCIe 4.0 x16 interface supports high-speed data transfer
  • Supports 4x M.2 NVMe drives for enhanced storage performance
  • RAID support: 0, 1, 10, and JBOD (single-drive)
  • Compatible with Windows, Linux, and MacOS OS platforms
  • Multiple RAID management options: WebGUI, CLI, BIOS, UEFI
  • Full-height form factor with compact dimensions (7.68" x 4.41" x 0.81")

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Boosts storage throughput with support for four M.2 NVMe SSDs over PCIe 4.0 x16
  • Flexible OS and RAID level support ensures compatibility across enterprise environments
  • Reliable system integration enabled by robust management options (WebGUI/CLI/BIOS/UEFI)

Product Overview

The HighPoint SSD7505 RAID controller brings cutting-edge storage performance to high-demand computing environments. Designed for PCIe 4.0 x16 interfaces, it connects easily to compatible systems and delivers enhanced throughput ideal for tasks such as media editing, scientific computing, and virtualization. Leveraging four M.2 NVMe ports, this controller enables robust RAID 0, 1, 10, and single-drive configurations, offering performance and redundancy as needed.

This full-height controller supports major OS platforms including Windows, Linux, and MacOS, and offers flexible management through WebGUI, CLI, BIOS, and UEFI. Its compact size ensures ease of deployment in workstations and servers. The SSD7505 enables bootable RAID arrays with high-speed NVMe SSDs, enhancing system reliability and performance for enterprise-grade applications.

Specifications

Product Overview
Product Type RAID Controller
Form Factor Full-Height
Interface Type PCIe 4.0 x16
Supported RAID Levels RAID 0, 1, 10, Single Disk
Bootable RAID Support Yes
NVMe Support Yes, M.2 NVMe SSDs

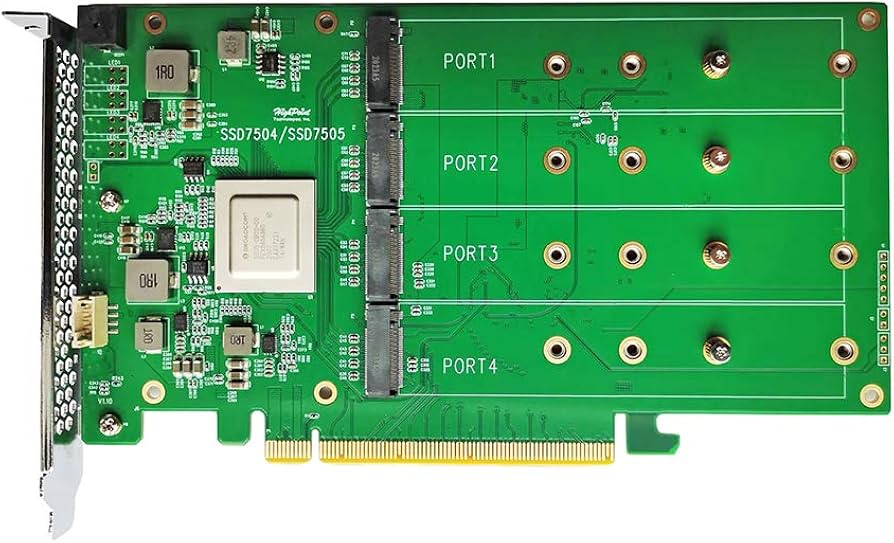

Number of M.2 Ports 4
Power Consumption (Typical) 19.8W
Operating System Compatibility Windows 11/10, Windows Server 2012 R2/2016/2019/2022, Linux, macOS
Weight 0.5 lbs (approx.)

Cloud Management & Licensing
Management Tools WebGUI, CLI, BIOS, UEFI
RAID Management Utility HighPoint RAID Management Console
Driver Availability Available for Windows, Linux, macOS
Licensing Required No (RAID features included)

Compliance & Origin
Country of Origin China
TAA Compliant No
Certifications CE, FCC, RoHS

Interfaces
Host Bus Interface PCIe Gen 4 x16
Drive Interface PCIe 4.0 x4 per M.2 Port (NVMe)
Number of Drive Interfaces 4 x M.2
M.2 Form Factor Supported 2280, 22110
Data Transfer Rate per Port Up to 7.2 GB/s
Total Bandwidth Up to 28 GB/s (Read), 26 GB/s (Write)
PCIe Lane Allocation x4 per M.2 SSD

Physical & Environmental
Width 7.68 Inch
Depth 4.41 Inch
Height 0.81 Inch

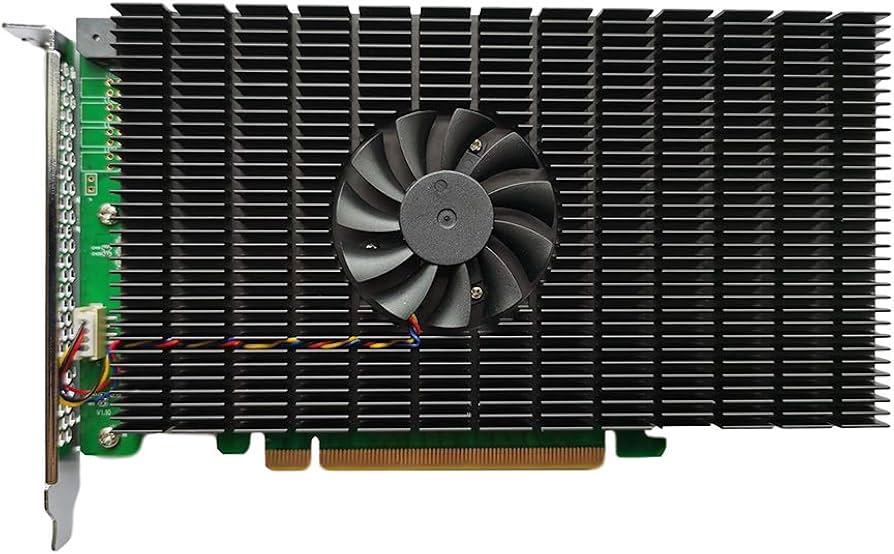

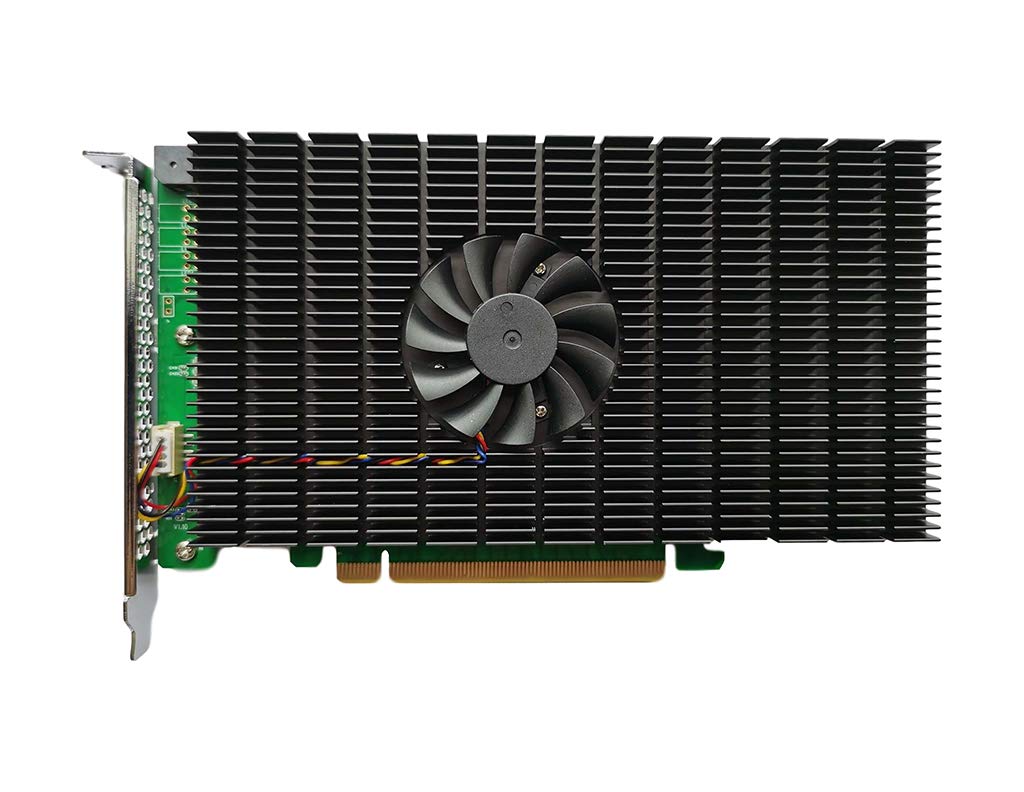

Cooling Aluminum heatsink & low-noise fan
Operating Temperature 0°C to 70°C
Storage Temperature -40°C to 85°C
Operating Humidity 5% to 85% non-condensing
Storage Humidity 5% to 95% non-condensing

Advanced Security Features
Secure Boot Support Yes, via UEFI
Data Protection Features End-to-end data protection, RAID mirroring
