HighPoint SSD7540 PCIe 4.0 x16 8x M.2 NVMe RAID Controller

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: SSD7540 UPC#: 643653754014
1 5

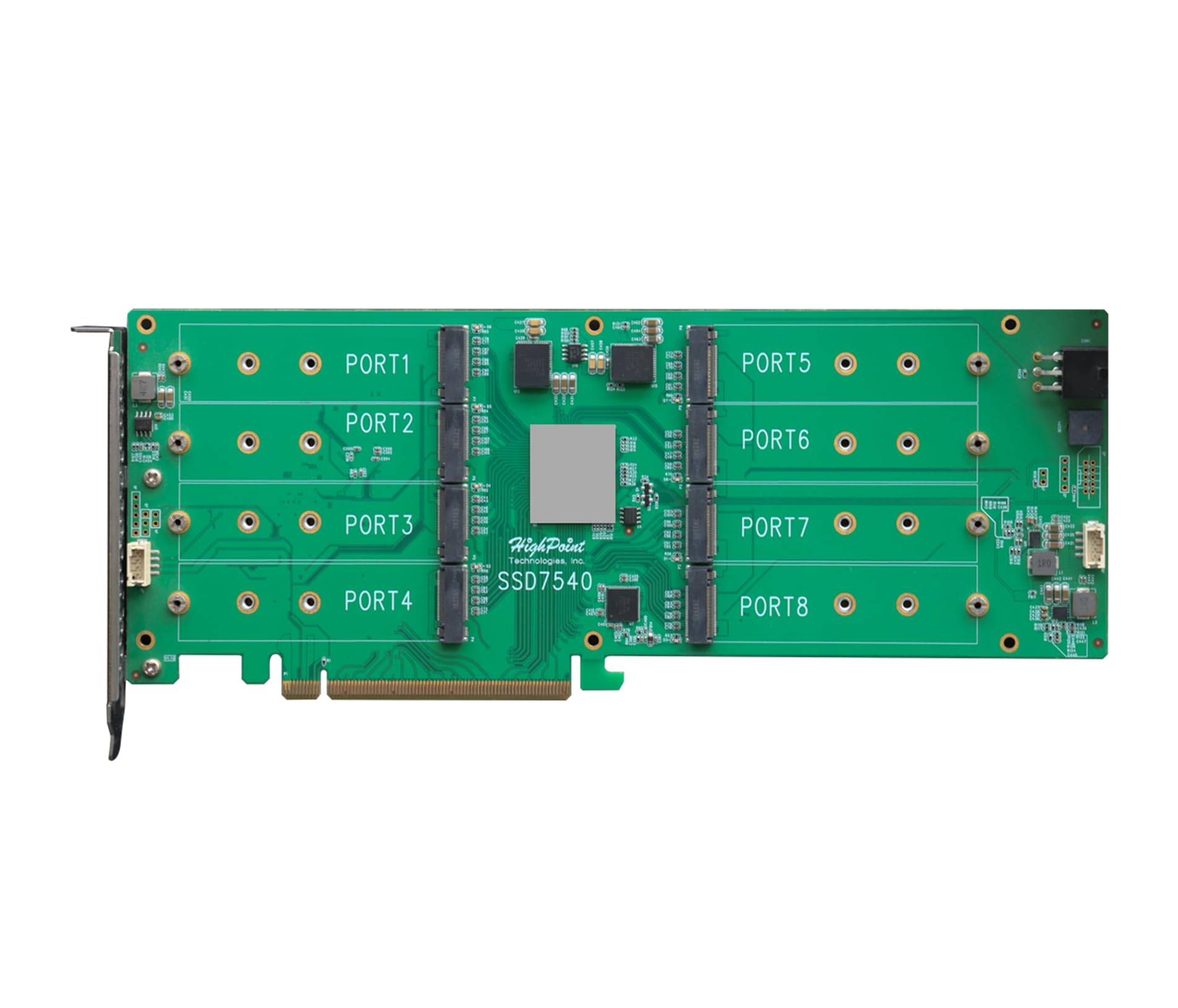

Photo is for illustration purposes only. Actual product may be different.
$1,545.00
$1,545.00
Sale Sold out
Shipping calculated at checkout.
  • - PCIe 4.0 x16 host interface for high-speed data throughput

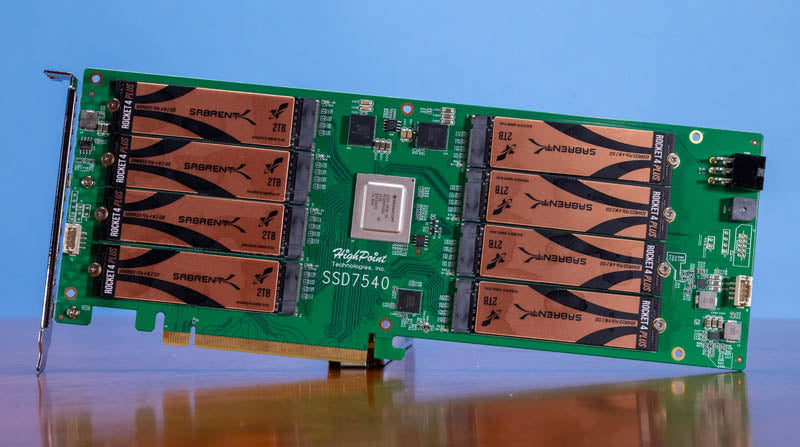

  • - Supports up to 8x M.2 NVMe SSDs
  • - Compatible with RAID 0, 1, 10, and single disk configurations
  • - Multi-platform OS support: Windows, Linux, macOS
  • - RAID management via WebGUI, CLI, BIOS, and UEFI
  • - Full-height form factor with dimensions of 11.22" x 4.37" x 0.83"

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Maximize NVMe performance with PCIe 4.0 x16 bandwidth across up to 8 drives
  • - Simplify administration with flexible RAID management tools including WebGUI and CLI
  • - Boost compatibility across mixed IT environments with support for Windows, Linux, and macOS

Product Overview

The HighPoint SSD7540 PCIe 4.0 x16 RAID controller offers support for up to 8 M.2 NVMe drives and versatile RAID levels 0, 1, 10, and single modes. Built for high-performance workflows, it leverages the bandwidth of PCIe 4.0 x16 and supports Windows, Linux, and macOS platforms. Management access is available through WebGUI, CLI, BIOS, and UEFI, making it suitable for a wide range of professional installations. The controller measures 11.22 x 4.37 x 0.83 inches in a full-height form factor and is ready for deployment in demanding storage environments.

Specifications

Product Overview
Product Type RAID Controller
Form Factor Full-Height
Weight 0.91 lbs (approx.)
Power Requirements Up to 28W (at full load with 8 SSDs)

Wireless Features

Compliance & Origin
Country of Origin CHINA
TAA Compliance No
Certifications CE, FCC, RoHS

Advanced Security Features
Drive Security Support NVMe drive's native security features (if supported by drive)
Boot Mode Support UEFI and Legacy BIOS Boot Modes
Data Protection Features RAID 1 Mirroring, RAID 10 for Redundancy and Speed
Error Recovery Automatic Rebuild, Online Capacity Expansion (OCE)

Interfaces
Controller Interface Type PCI Express 4.0 x16
Drive Interface M.2 NVMe SSD
Supported Drive Channels 8 x M.2 (M-key, 2242/2260/2280/22110)
Supported RAID Levels RAID 0, 1, 10, Single
PCIe Host Interface Bandwidth 128 Gbps
Max Transfer Rate Up to 28,000 MB/s (RAID 0, 8x NVMe)

Physical & Environmental
Width 11.22 Inch
Depth 4.37 Inch
Height 0.83 Inch

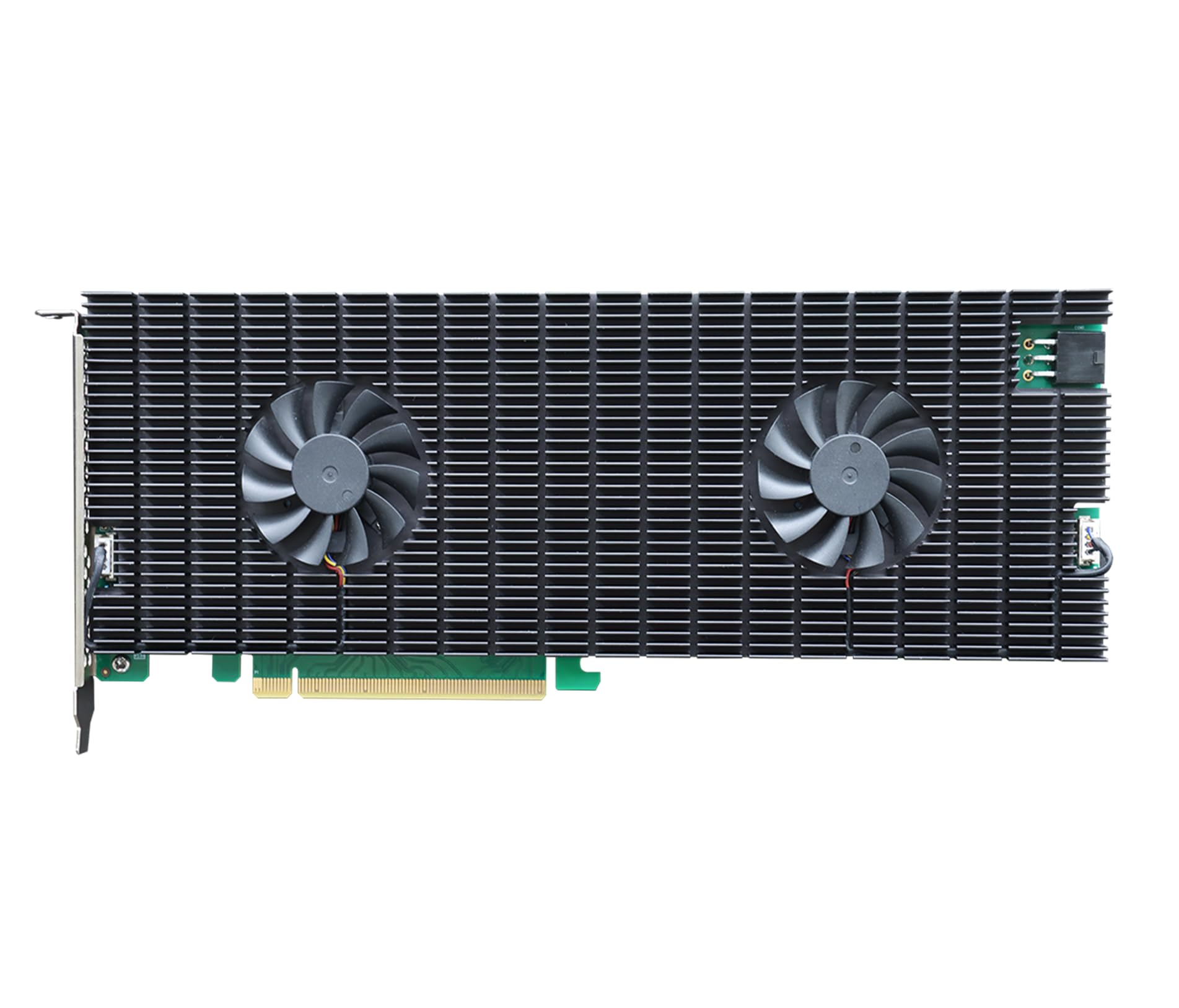

Cooling Active Cooling with Full-length Aluminum Heat Sink and Fan
Operating Temperature 0°C ~ 70°C
Storage Temperature -40°C ~ 85°C
Humidity (Operating) 5% ~ 90% non-condensing
Humidity (Storage) 5% ~ 95% non-condensing

Cloud Management & Licensing
Management Interfaces WebGUI, Command Line Interface (CLI), BIOS, UEFI
Operating System Support Windows 11/10, Windows Server 2022/2019/2016/2012 R2, Linux, macOS
Software Suite HighPoint RAID Management (Web-based GUI)
Monitoring Features Drive Health Status, Temperature Monitoring, SMART Data
Alerting Methods Email Notifications, LED Indicators
Licensing Requirements None – Software Included
