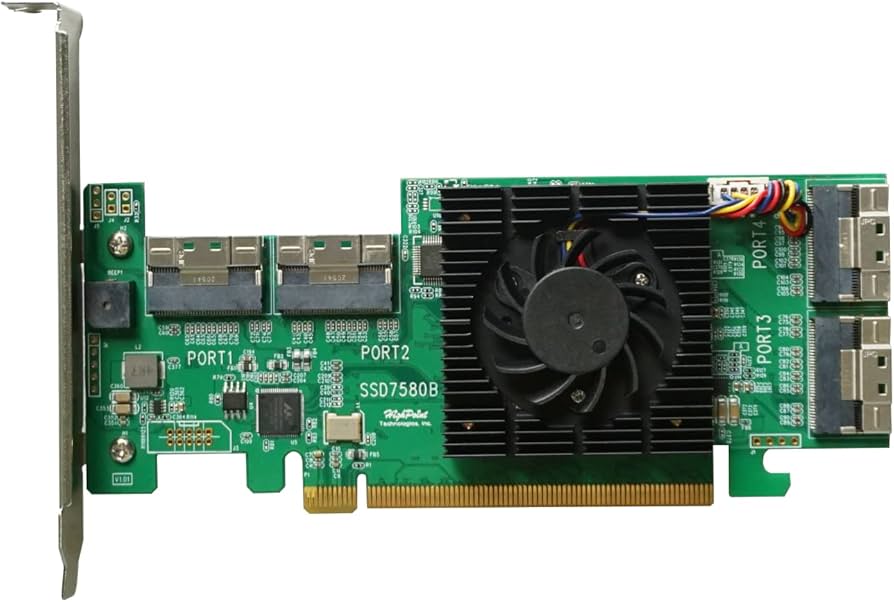

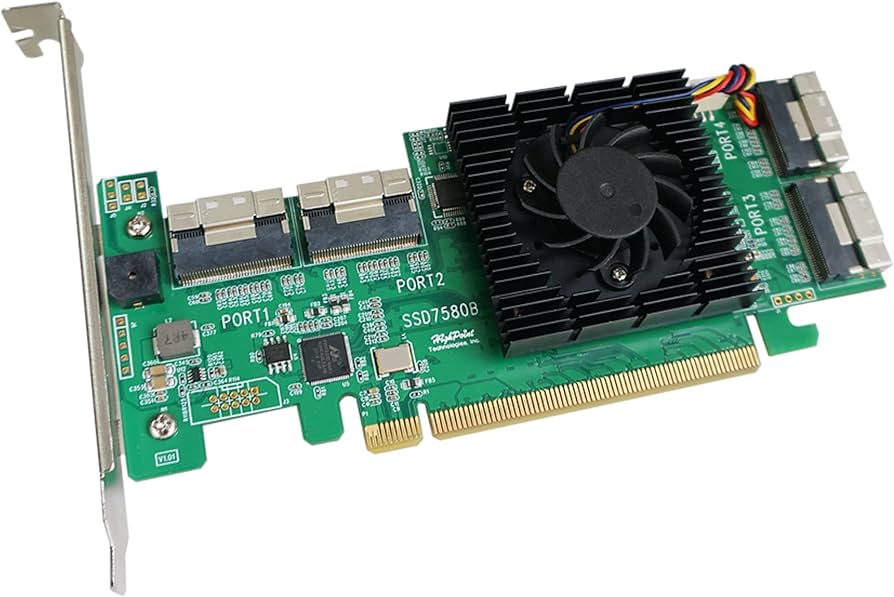

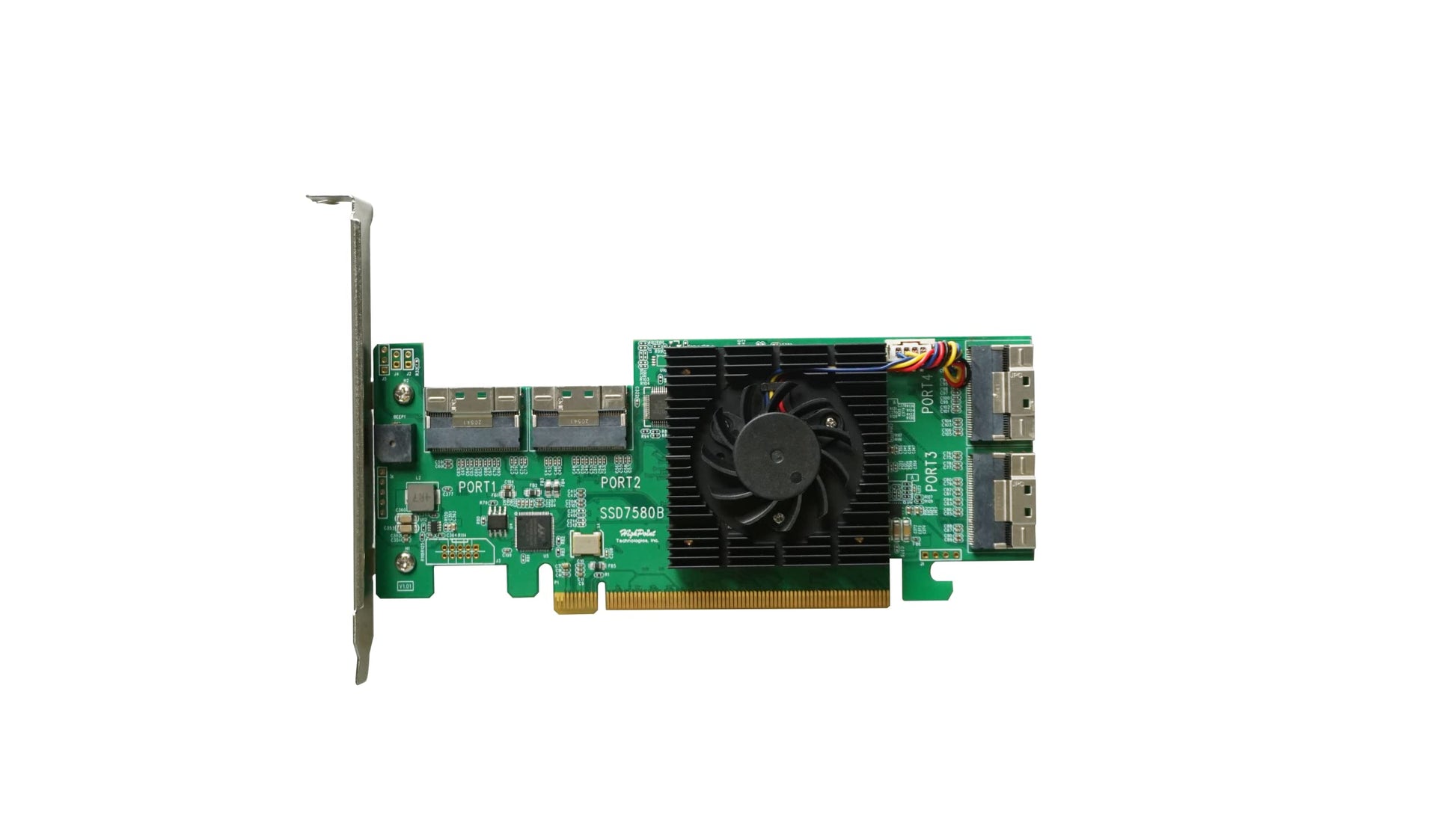

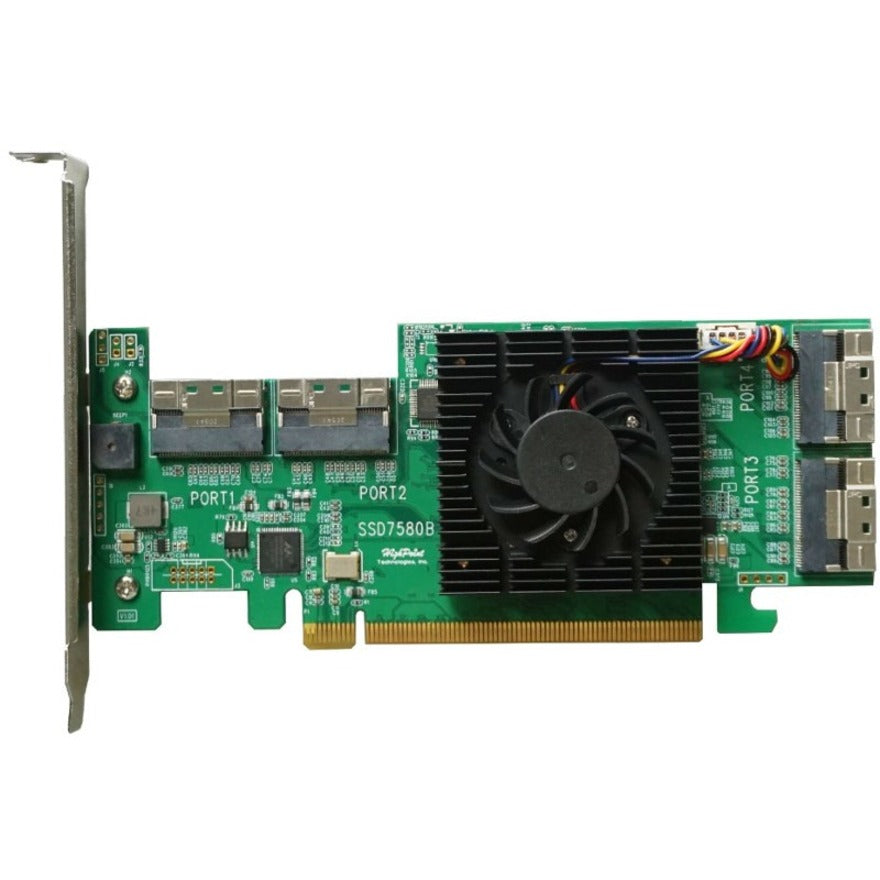

HighPoint SSD7580B PCIe 4.0 x16 8-Port NVMe RAID Controller

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: SSD7580B UPC#: 643653758036
1 5
Photo is for illustration purposes only. Actual product may be different.
$1,686.00
$1,686.00
Sale Sold out
Shipping calculated at checkout.
  • PCIe 4.0 x16 interface for ultra-high NVMe bandwidth
  • Supports 8x U.2/U.3 or M.2 NVMe devices
  • RAID levels 0, 1, 10, and single-drive operation
  • Compatible with Windows 10, Server 2016+, and Linux kernel 3.10+
  • Hot-swap/hot-plug and bootable array support
  • Flexible RAID management via WebGUI, CLI, BIOS, and UEFI

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for high-speed NVMe storage arrays in workstations or servers due to PCIe 4.0 x16 throughput
  • Offers flexible RAID configurations with eight NVMe ports to meet performance and redundancy needs
  • Hot-plug support and multi-interface management tools simplify maintenance and integration in enterprise systems

Product Overview

The HighPoint SSD7580B is a high-speed NVMe RAID controller that leverages a PCIe 4.0 x16 interface to deliver top-tier storage bandwidth and efficiency. Designed for systems that demand reliable high-performance storage, it offers eight NVMe ports compatible with U.2, U.3, or M.2 drives. Its low-profile form factor fits a broad range of enclosures, making it ideal for dense computing environments such as workstation or server chassis.

The controller supports RAID levels 0, 1, 10, and single-drive modes, providing flexible storage configuration options to balance performance, redundancy, and capacity. It's hot-swap/hot-plug capable and supports bootable arrays, enabling seamless system integration and uptime. Management is streamlined with support for WebGUI, CLI tools, BIOS setup, and UEFI configuration, accommodating administrators of varying expertise and infrastructure.

Compatible with Windows 10, Server 2016 and above, as well as Linux kernels 3.10 or later, the SSD7580B is built for mission-critical applications across industries. Whether you're building a high-performance workstation or a scalable storage server, this controller delivers the throughput and flexibility needed to keep pace with today’s data demands.

Specifications

Product Overview
Product Type RAID Controller
Form Factor Low profile
Interface PCI Express 4.0 x16
Number of NVMe Ports 8
Supported Drive Types U.2, U.3, M.2 (via adapters)
RAID Levels Supported 0, 1, 10, Single
Hot Swap / Hot Plug Support Yes
Bootable RAID Support Yes
Maximum Bandwidth Up to 28,000 MB/s
Power Requirements 12V via PCIe slot
Cooling Passive heatsink
Target Applications High-performance workstation, storage server, content creation, data acquisition

Cloud Management & Licensing
Management Interfaces WebGUI, CLI, BIOS, UEFI
Supported Operating Systems Windows 10/Server 2016+, Linux Kernel 3.10+
Driver Support Windows and Linux
Included Utility Software HighPoint SSD Manager
Cloud Features No native cloud support (on-premise management)
Licensing Requirements None (RAID features included)

Physical & Environmental
Width 6.5 Inch
Height 0.8 Inch
Depth 2.27 Inch
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Relative Humidity 5% to 90% (non-condensing)
MTBF Over 1,500,000 hours

Interfaces
Host Interface PCIe 4.0 x16
Drive Interface NVMe 1.3/1.4 via U.2/U.3
Port Count 8 independent NVMe ports
Connector Type Mini-SAS HD (SFF-8643 via adapters)
Data Transfer Rate per Port Up to 7GB/s (PCIe 4.0 x4 per device)
Backward Compatibility PCIe 3.0 / NVMe 1.2

Advanced Security Features
Data Protection RAID redundancy (RAID 1, 10)
Encryption Support OS/software-based encryption

Compliance & Origin
Country of Origin CHINA
TAA Compliance No
RoHS Compliance Yes
FCC Certification Yes
CE Certification Yes
Warranty 3 Years Limited
