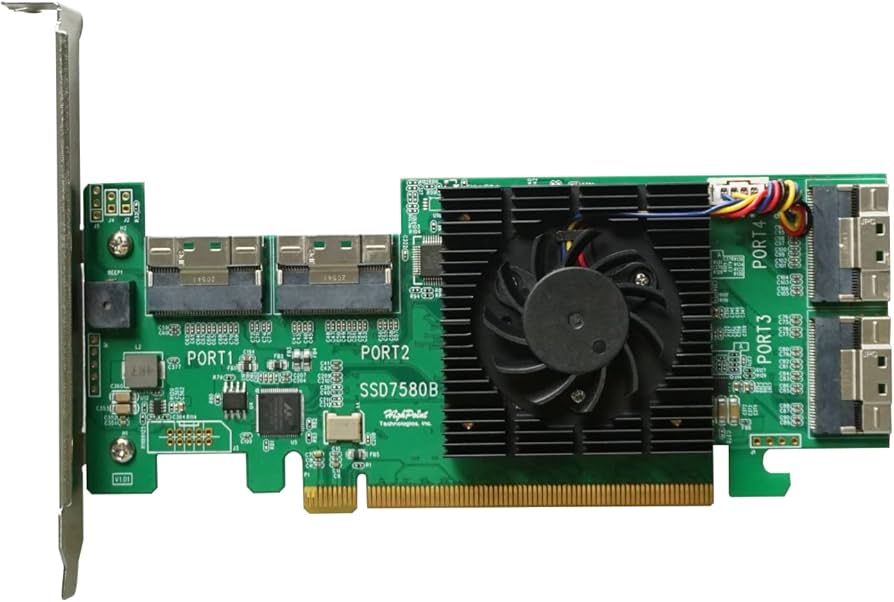

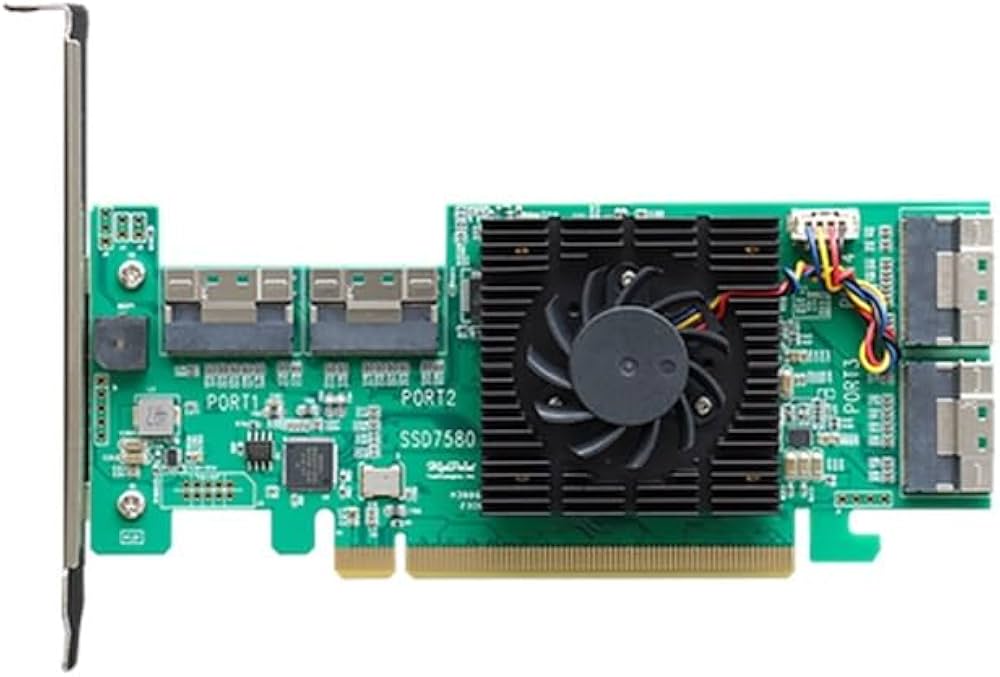

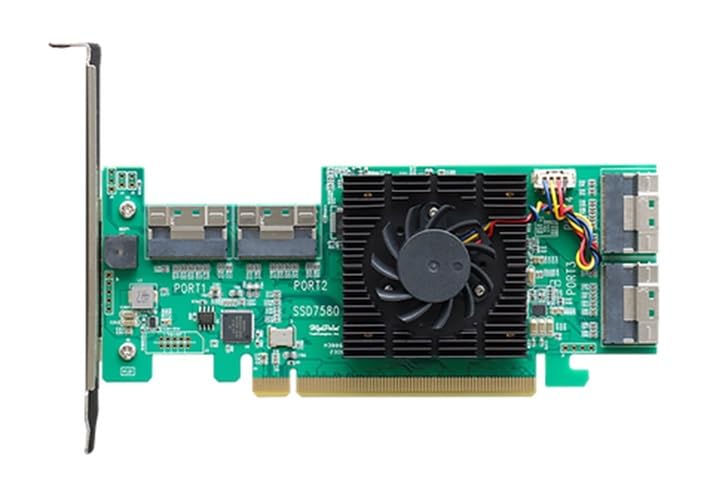

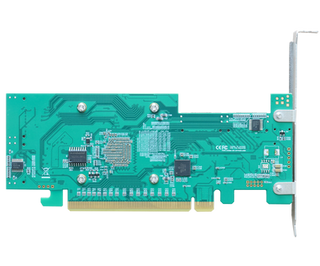

HighPoint SSD7580C 8-Port U.2/U.3 PCIe 4.0 NVMe RAID Controller

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: SSD7580C UPC#: 643653758081
1 5
Photo is for illustration purposes only. Actual product may be different.
$2,132.00
$2,132.00
Sale Sold out
Shipping calculated at checkout.
  • 8 dedicated U.2/U.3 NVMe SSD channels with hot-swappable support
  • PCIe 4.0 x16 host interface for ultra-fast connectivity
  • Max transfer rate of 28,000 MB/s for high-throughput workloads
  • Supports RAID 0, 1, and 10 for flexible storage configurations
  • Manages up to 200TB of total SSD capacity
  • Compatible with 64-bit Windows OS and Microsoft Hyper-V

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Designed for professionals needing ultra-high-speed data access up to 28,000MB/s
  • Supports flexible RAID setups (0, 1, 10) with up to 200TB NVMe capacity
  • Engineered for enterprise reliability with RoHS compliance and 2-year warranty

Product Overview

The HighPoint SSD7580C is a high-performance 8-channel NVMe RAID controller with a PCIe 4.0 x16 interface, supporting up to 200TB of hot-swappable U.2/U.3 NVMe SSD storage. Designed for low-latency, high-throughput environments, it achieves transfer speeds of 28,000MB/s and supports RAID 0, 1, and 10. Its advanced PCIe switch architecture and HighPoint NVMe RAID stack offer scalability for data centers, HPC applications, and content creators. Compatible with recent Windows systems and Hyper-V, this controller is housed in a low-profile form factor and includes a 2-year warranty.

Specifications

Product Overview
Product Type RAID Controller
Form Factor Low Profile
Supported Device Solid State Drive
RAID Level RAID 0, 1, 10
RAID Supported Single, RAID 0, 1, 10
Number of SSDs Supported 8
Total SSD Capacity Supported 200TB
Warranty 2 Years

Wireless Features

Compliance & Origin
Country of Origin China
RoHS Compliant Yes
Certifications CE, FCC, RoHS

Advanced Security Features
Secure Boot Support Yes
NVMe Namespace Support Yes
Data Protection Mode RAID 1, RAID 10 redundancy

Interfaces
Interface Type PCI Express 4.0 x16
Drive Interface U.2 NVMe
SSD Form Factor Supported 2.5'' U.2
Channel Quantity 8
Data Transfer Rate 28000 MBps

Physical & Environmental
Width 6.50 Inch
Depth 0.91 Inch
Height 2.71 Inch
Operating Temperature Range 0°C to 70°C
Storage Temperature Range -40°C to 85°C
Operating Humidity 5% to 85% (non-condensing)
Airflow Requirements 200 LFM minimum recommended
Cooling Passive heatsink (recommended active airflow)
Power Requirement PCIe slot powered; <20W typical

Cloud Management & Licensing
Management Interface HighPoint WebGUI, CLI, and API
Software RAID Stack HighPoint NVMe RAID Engine
Licensing No recurring license fees required
OS Compatibility Windows 10, 11, Windows Server 2016, 2019, 2022, Microsoft Hyper-V
Architecture HighPoint PCIe 4.0 switch-based platform

Additional Specifications
Model Name HighPoint SSD7580C
Manufacturer Part Number SSD7580C
UPC 643653758081
