HP 20p PoE+ / 1p 40GbE QSFP+ v3 zl2 Module J9992A

VENDOR: HP Mfg Part#: J9992A UPC#: 888182604304
1 4
Photo is for illustration purposes only. Actual product may be different.
$7,535.00
$7,535.00
Sale Sold out
MSRP: $9,517.00
Shipping calculated at checkout.
  • • 20 PoE+ 10/100/1000BASE-T ports for device power and connectivity
  • • 1 high-speed 40GbE QSFP+ uplink for scalable data performance
  • • 40 Gbps data transfer rate supports high-bandwidth environments
  • • TAA compliant for government and regulatory deployments
  • • Compact modular dimensions: 10.29" x 8.11" x 1.75"
  • • Total of 21 networking ports for enterprise scalability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • • Enables high-density, power-efficient deployment with 20 PoE+ ports supporting edge devices like phones and access points
  • • Offers superior uplink performance via a dedicated 40GbE QSFP+ port, ideal for high-throughput enterprise networks
  • • Designed for HP zl2 modular switch chassis, providing flexible network growth in scalable infrastructures

Product Overview

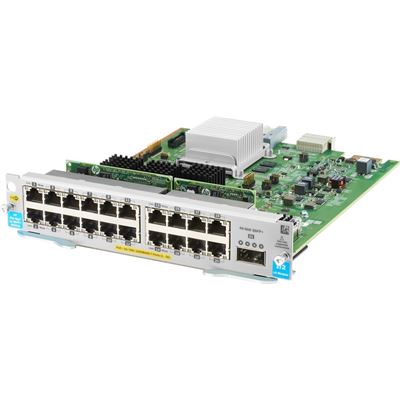

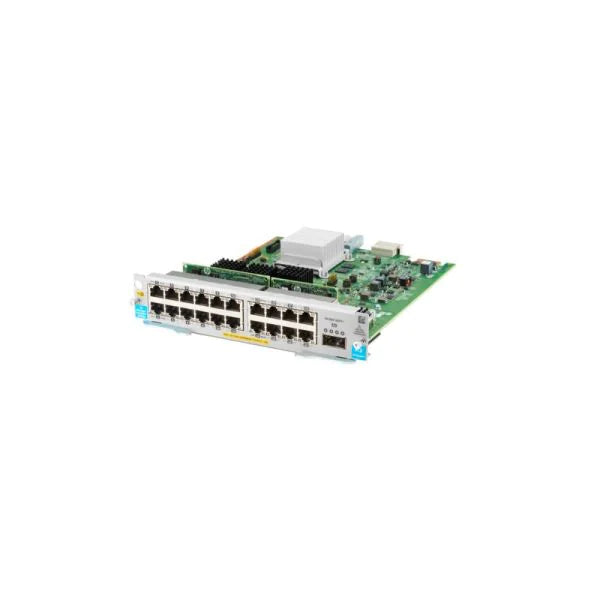

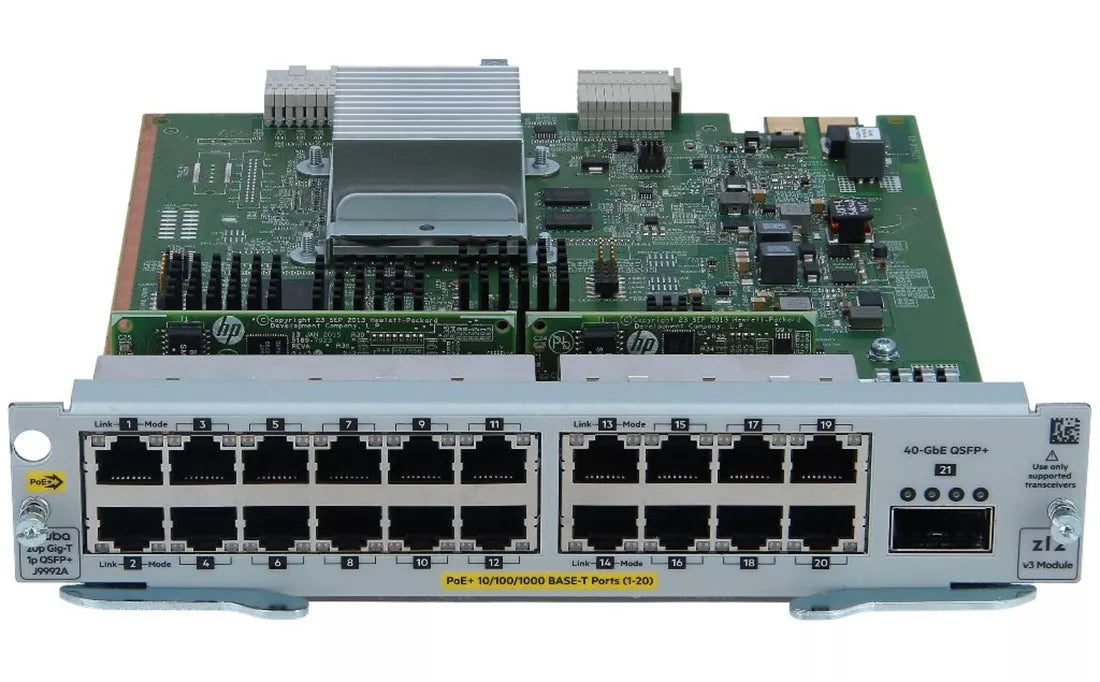

The HP 20p PoE+ / 1p 40GbE QSFP+ v3 zl2 Module (J9992A) enhances enterprise-grade networking with advanced performance and scalability. It integrates 20 10/100/1000BASE-T PoE+ ports for seamless device connectivity and power delivery, paired with a high-speed 40 Gigabit Ethernet QSFP+ uplink for robust data throughput and reduced latency in data-heavy environments. This modular design supports HP's zl2 switch chassis, delivering flexibility and high-density port expansion tailored to modern IT infrastructure demands.

Built with a form factor optimized for enterprise installations, this module measures 10.29 inches wide, 8.11 inches deep, and 1.75 inches high. Its compliance with Trade Agreements Act (TAA) standards ensures suitability for government and regulated deployments. With a total of 21 available ports and support for 40 Gbps data transfer rates, the J9992A is positioned for high-bandwidth, PoE-driven network use cases like VoIP, security appliances, and high-demand wireless infrastructure.

Ideal for organizations seeking a future-ready, energy-efficient solution, this switch module improves network responsiveness and simplifies power delivery to edge devices, reducing the need for additional cabling or power injectors. It strikes a balance between high capacity and reliability, backed by HP’s reputation in networking hardware.

Specifications

Product Overview
Manufacturer HP
Product Name HP 20p PoE+ / 1p 40GbE QSFP+ v3 zl2 Module
Manufacturer Part Number J9992A
Type Network switch module
Form Factor QSFP+
Switch Type Modular
Module Compatibility HP zl2 switch chassis
PoE Support PoE+
Weight 2.65 lbs (1.2 kg)
Power Consumption Maximum 476 W (with PoE+ fully loaded)

Physical & Environmental
Width 10.29 in
Depth 8.11 in
Height 1.75 in
Operating Temperature Range 32°F to 131°F (0°C to 55°C)
Storage Temperature Range -40°F to 158°F (-40°C to 70°C)
Operating Humidity 15% to 95% (non-condensing)
MTBF 743,048 hours
Cooling Type Passive (relies on chassis fans)

Cloud Management & Licensing
Central Management HP Intelligent Management Center (IMC)
Cloud Capabilities
License Requirements No additional license required for base functionality

Interfaces
Total Ports 21
10/100/1000BASE-T Ports 20
QSFP+ Uplink Ports 1
Port Type 1 20 x RJ-45 Ethernet 10/100/1000 PoE+
Port Type 2 1 x QSFP+ 40G Ethernet
Network/Transport Protocol IPv4, IPv6
Switching Capacity 176 Gbps
Throughput 130.9 Mpps
MAC Address Table Size 32,000 entries
Jumbo Frame Support Yes
Auto MDI/MDI-X Yes
Link Aggregation Supported

Compliance & Origin
Country of Origin Singapore
TAA Compliance Yes
RoHS Compliance Yes
Certifications UL, cUL, VCCI, CE, FCC Part 15 Class A

Advanced Security Features
Access Control List (ACL) Layer 2/3 ACLs
Port Security Yes
802.1X Authentication Supported
DHCP Snooping Yes
ARP Protection Yes
IP Source Guard Yes
