Products Network Stuff HP 24P 10/100/1000BASE-T V3...

HP 24P 10/100/1000BASE-T V3 ZL2 MOD

VENDOR: HP Mfg Part#: J9987A UPC#: 888182604250
1 5

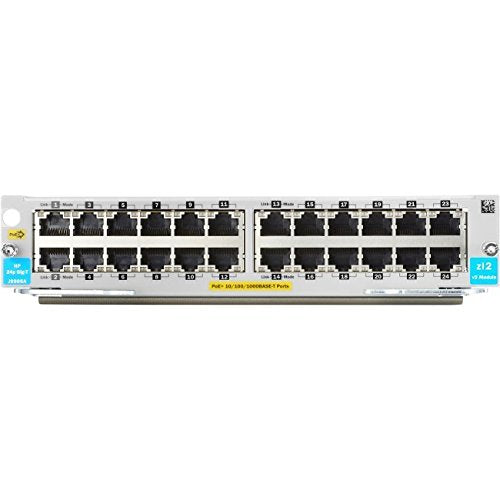

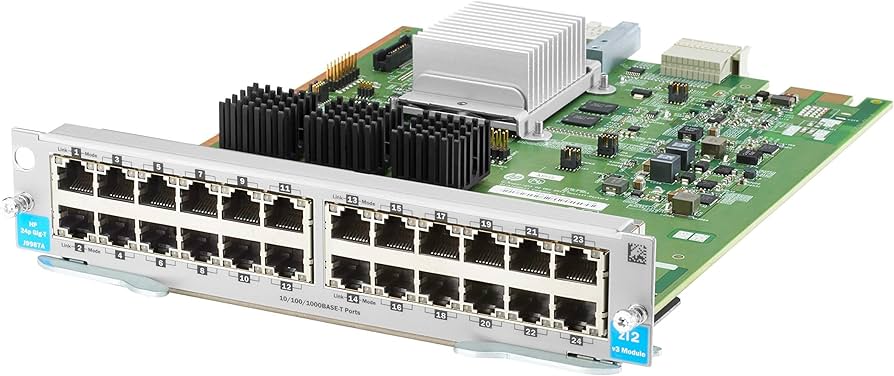

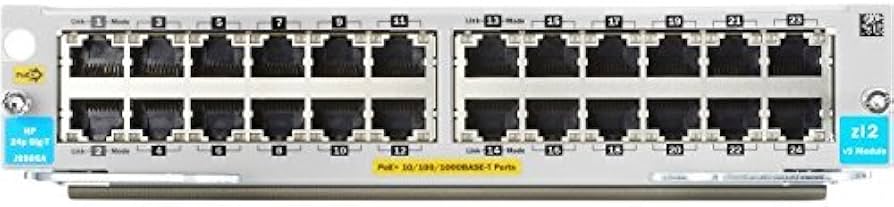

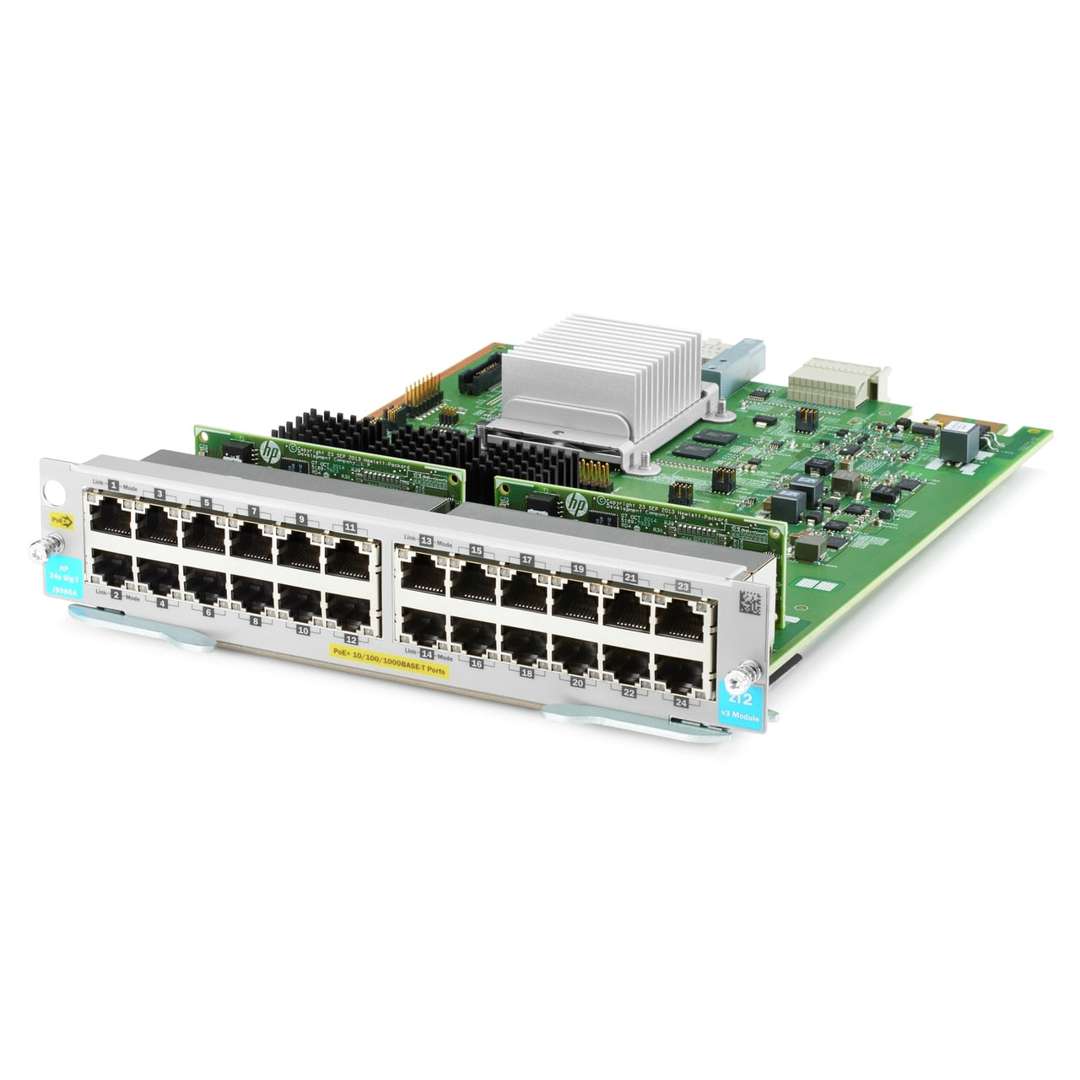

Photo is for illustration purposes only. Actual product may be different.
$5,189.00
$5,189.00
Sale Sold out
MSRP: $6,554.00
Shipping calculated at checkout.
  • 24-port plug-in module for Gigabit Ethernet connectivity
  • Supports 10/100/1000BASE-T with data rates up to 1 Gbps per port
  • Form factor: Plug-in module for HP zl2 platforms
  • TAA compliant for government-grade applications
  • Compact dimensions (8.13" x 1.75" x 10.3")
  • Made in Singapore

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enhance switch port density in enterprise networks with 24 high-speed Gigabit Ethernet ports.
  • TAA compliance ensures suitability for government and regulated industry deployments.
  • Optimized for seamless integration with HP zl2 modular networking systems for scalable infrastructure growth.

Product Overview

The HP 24P 10/100/1000BASE-T V3 ZL2 MOD (part number J9987A) is a professional-grade plug-in module offering 24 ports of Gigabit Ethernet performance, with 1 Gbps data transfer speed per port. Compatible with HP's zl2 chassis systems, it enables flexible and scalable network expansion. This module is TAA compliant and manufactured in Singapore, meeting government and institutional procurement standards. Physical dimensions are optimized for easy integration, and its streamlined design ensures enhanced network throughput without compromising reliability.

Specifications

Product Overview
Product Type Module
Form Factor Plug-In Module
Weight 1.5 lb
Power Requirements Supplied by chassis
Module Type 10/100/1000BASE-T Ethernet
Compatible Chassis HP 5400R zl2 Switch Series
Model HP 24p 10/100/1000BASE-T v3 zl2 Module
Manufacturer Part Number J9987A

Physical & Environmental
Width 8.13 inch
Depth 1.75 inch
Height 10.3 inch
Operating Temperature 32°F to 131°F (0°C to 55°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 5% to 95% non-condensing
MTBF 4,333,896 hours

Cloud Management & Licensing
Management Interface Via zl2 switch chassis (CLI, SNMP, Web GUI)
Software Licensing Included with chassis OS (HP Comware or ArubaOS-Switch)
Remote Monitoring Support Yes (RMON 1, 2, 3, 9)

Interfaces
Ports 24 x RJ-45 10/100/1000BASE-T
Port Type RJ-45
Interface Type Gigabit Ethernet
Port Speed 1 Gbps
Auto MDI/MDI-X Yes
Full Duplex Support Yes
Forwarding Rate 35.7 Mpps
MAC Address Table Size 32768 entries
Latency (1000 Mbps) <5 µs
Interface Standards IEEE 802.3, 802.3u, 802.3ab

Compliance & Origin
Country of Origin Singapore
TAA Compliance Yes
Certifications RoHS, UL, FCC Class A, VCCI, ICES-003
Safety Standards UL 60950-1, IEC 60950-1
EMI Standards FCC Part 15 Class A

Advanced Security Features
Security Features ACLs, Port Security, MAC Lockdown (via chassis management)
Access Control 802.1X Network Access Control
DHCP Protection Yes (via switch chassis)
DoS Protection Yes
Secure Management SSL, SSH, SNMPv3 (via chassis control)
