HP 5400R ZL2 Management Module, SFP/SFP+, Gigabit Ethernet, J9827A

VENDOR: HP Mfg Part#: J9827A UPC#: 888182309087
1 5

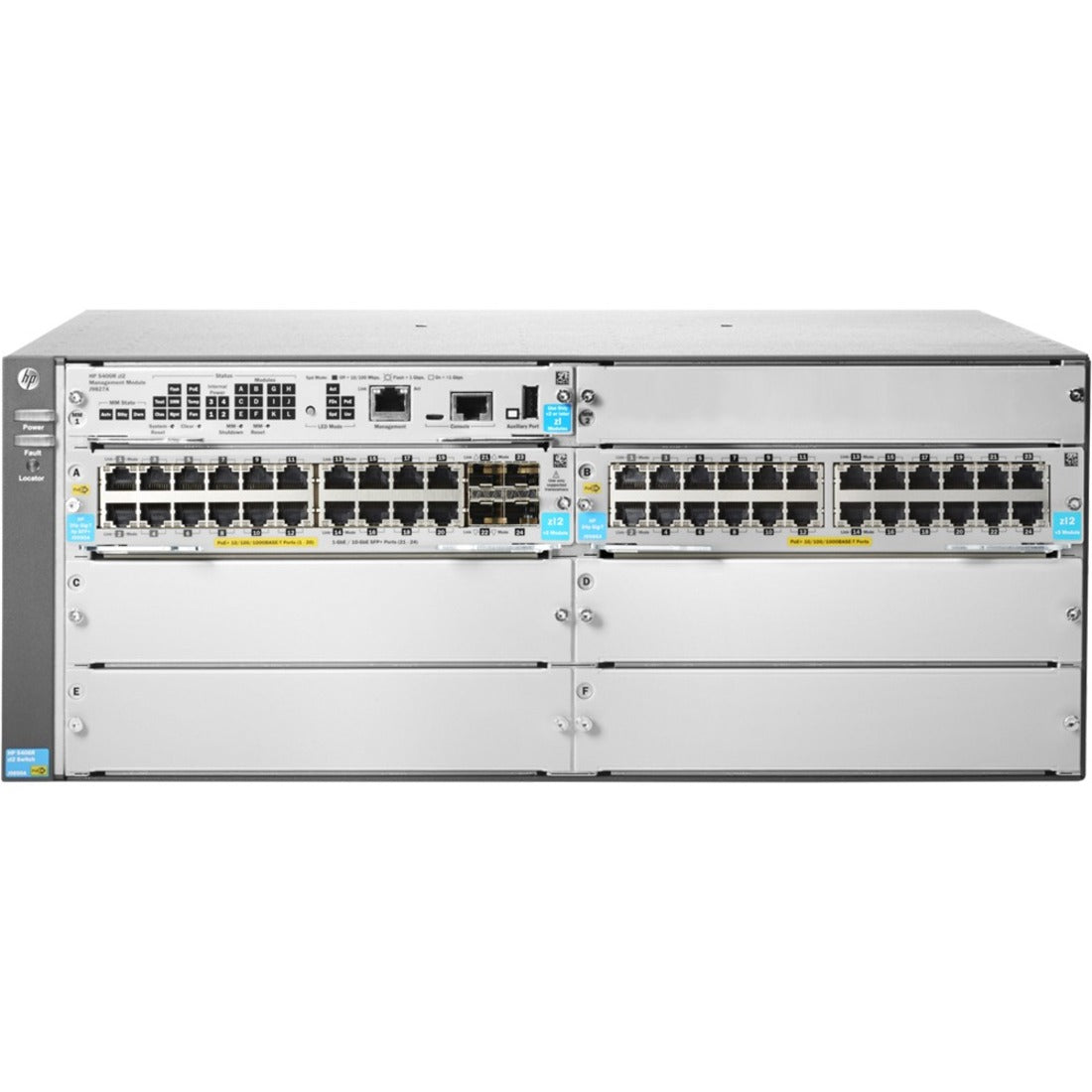

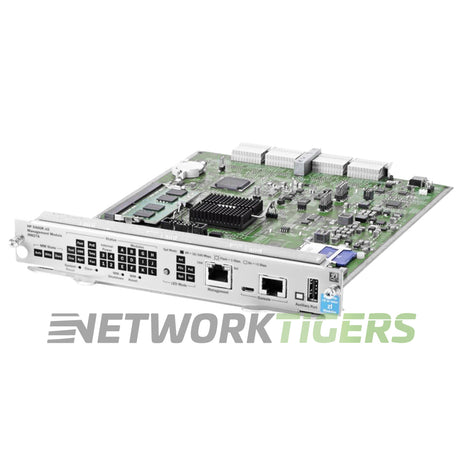

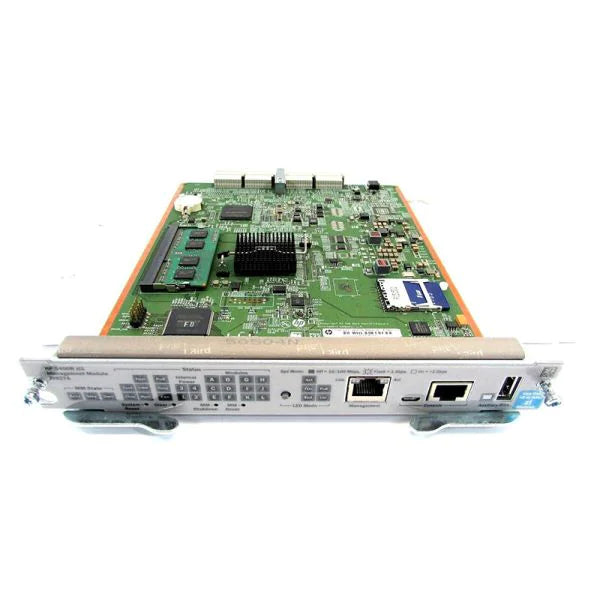

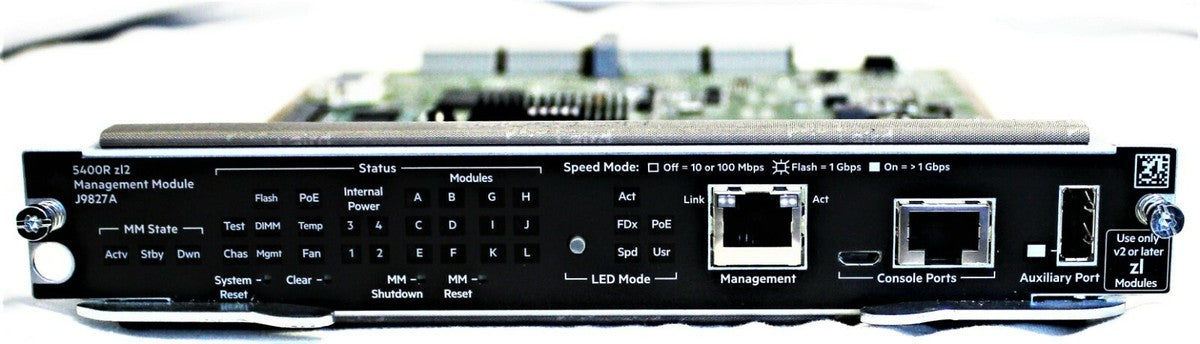

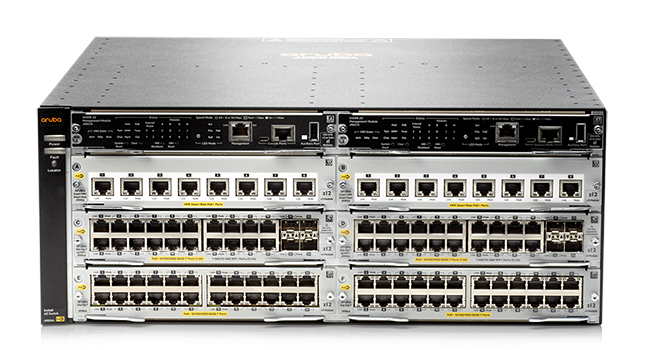

Photo is for illustration purposes only. Actual product may be different.
$3,921.00
$3,921.00
Sale Sold out
MSRP: $4,952.00
Shipping calculated at checkout.
  • Supports up to 12 open module slots for scalable configurations
  • Compatible with SFP, SFP+, Smart Rate, and 40GbE port modules
  • Gigabit Ethernet data transfer up to 1 Gbps
  • Wired connectivity with support for both PoE/PoE+ models
  • TAA compliant; manufactured in Singapore
  • Supports a mix of 10/100/1000, 10GbE, and 40GbE interfaces

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Flexible modular design supports diverse network scaling, from Gigabit to 40GbE
  • TAA compliance ensures suitability for regulated and government procurement
  • Backed by HP's Aruba platform, offering enterprise-class resiliency and performance

Product Overview

The HP 5400R ZL2 Management Module (J9827A) is a high-performance networking component designed for enterprise-grade infrastructure. With support for SFP, SFP+, and 40GbE modules, and up to 12 open module slots, it enables flexible deployment, scaling from Gigabit to multi-Gigabit environments. Offering wired connectivity and data rates up to 1 Gbps, it meets the demands of mobile-first and hybrid networks. Trade Agreements Act (TAA) compliance and origin from Singapore qualify it for government procurement. Ideal for organizations seeking long‑term ROI and adaptive network management.

Specifications

Product Overview
Product Type Switch
Manufacturer HP
Model 5400R ZL2 Management Module
Part Number J9827A
Form Factor Module (for HP 5400R zl2 Series Switches)
Power Consumption 77 W (maximum)
Weight 1.2 kg (2.65 lbs)
Power Supply Supplied by switch chassis

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Safety Compliance CSA, UL, EN 60950, IEC 60950
EMC Standards FCC Class A, VCCI Class A, EN 55022 Class A
Certifications RoHS, WEEE, REACH

Advanced Security Features
Authentication 802.1X, MAC authentication, Web-based authentication
Access Control Access Control Lists (ACLs)
Encryption Support Secure Sockets Layer (SSL), Secure Shell (SSH)
Network Protection DHCP snooping, Dynamic ARP protection, IP Source Guard
Traffic Filtering Advanced classifier-based QoS

Interfaces
Interface Types SFP, SFP+, 40GbE module support
Supported Interface Speeds 10/100/1000 Mbps, 10GbE, 40GbE
Maximum Ports via Modules Up to 288 x 10/100/1000 ports or 96 x SFP+ ports or 24 x 40GbE ports
Expansion Slots 12 module slots
Data Transfer Rate 1 Gbps (standard), up to 40 Gbps (with appropriate modules)
Transport Protocol Gigabit Ethernet
Data Link Protocol Gigabit Ethernet
Backplane Bandwidth 2 Tbps switching fabric (with redundant modules)

Physical & Environmental
Dimensions (W x D x H) 8.9 x 10.6 x 2.2 in (22.6 x 26.9 x 5.6 cm)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 15% to 95% (non-condensing)
MTBF 2,199,438 hours
Acoustic Noise 47 dB
Cooling Method Chassis-cooled via integrated fans

Cloud Management & Licensing
Management Interface Web GUI, Command Line Interface (CLI), SNMPv1/v2c/v3
Cloud Management Support Aruba AirWave, Aruba Central (with appropriate modules)
Included Software License Lifetime warranty with limited software updates
Software Features Layer 2 switching, Layer 3 routing, QoS, ACLs
Redundancy Support Optional redundant management module for high availability
