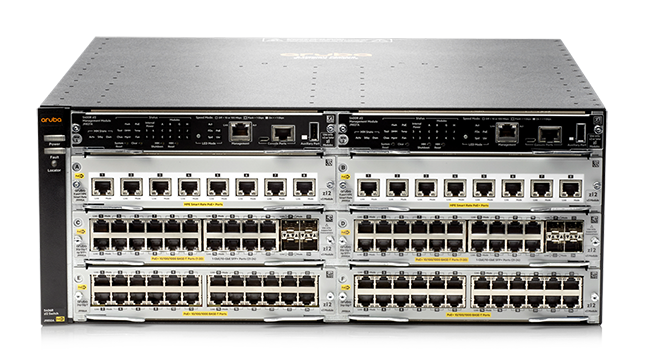

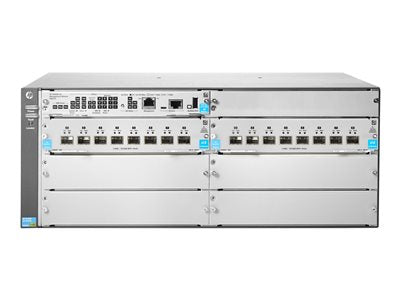

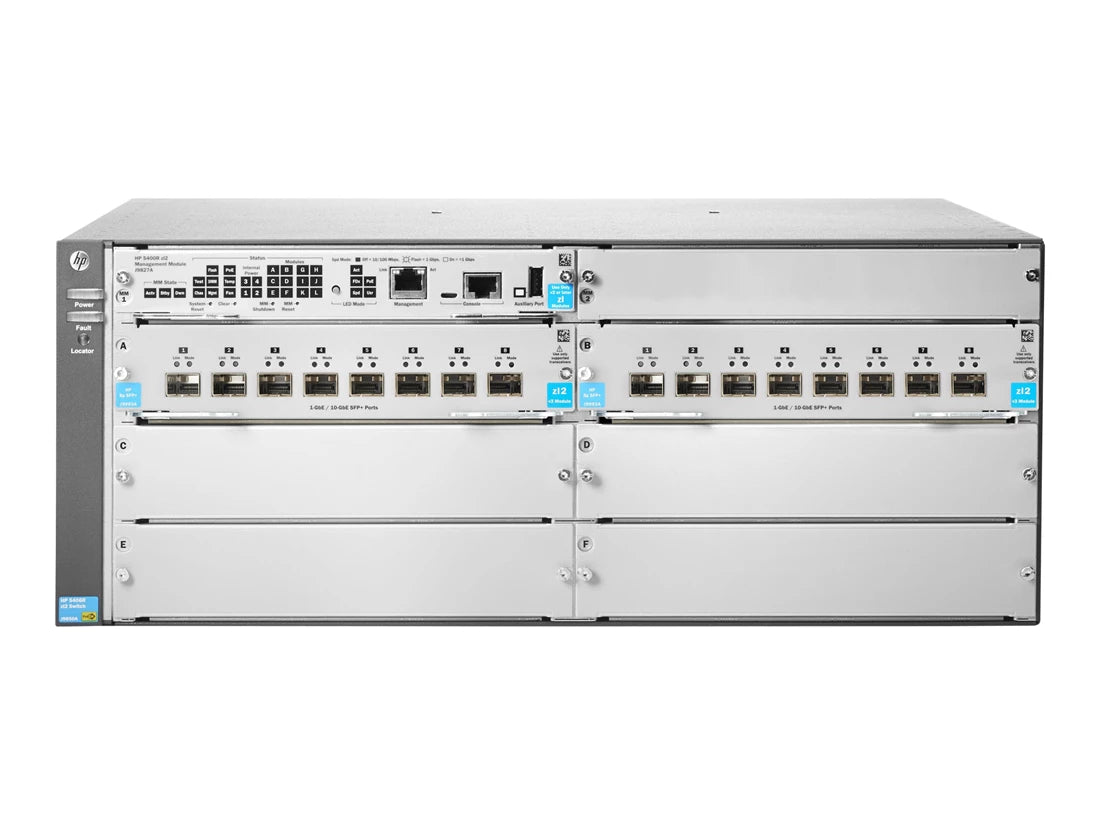

HP 5406R 16SFP+ v3 zl2 Switch, 16-Port Gigabit Ethernet, JL095A

VENDOR: HP Mfg Part#: JL095A UPC#: 889296036432
1 3
Photo is for illustration purposes only. Actual product may be different.
$15,070.00
$15,070.00
Sale Sold out
MSRP: $19,035.00
Shipping calculated at checkout.
  • 16 SFP+ ports for high-density fiber connectivity
  • Gigabit Ethernet protocol support for fast data transfer
  • 1 Gbps data transfer rate per port
  • TAA-compliant for government and regulated environments
  • Compact SFP+ form factor for modular deployments
  • Manufactured in Singapore

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Provides 16 high-speed SFP+ ports, supporting modular and scalable fiber network configurations.
  • TAA compliance ensures eligibility for government contracts and secure procurement environments.
  • Designed as part of HP’s zl2 family, offering reliable performance for enterprise-grade switching applications.

Product Overview

The HP 5406R 16SFP+ v3 zl2 Switch is a high-performance modular switch engineered for data-intensive enterprise environments. It features 16 SFP+ ports with support for Gigabit Ethernet protocol, providing high-throughput connectivity for core switching, distribution layers, or high-performance server aggregation. This model is also TAA-compliant, making it suitable for government contracts or international procurement standards.

Designed for deployment flexibility, the switch uses the SFP+ form factor, allowing users to attach compatible pluggable optical transceivers based on their networking infrastructure needs. Operating at a 1 Gbps data rate, the switch supports evolving networking demands while ensuring compatibility with existing architectures.

The HP 5406R belongs to HP’s well-regarded zl2 series, known for high availability, security, and manageability. Manufactured in Singapore, this switch supports dense port configurations while maintaining robust performance and compliance. It's an ideal choice for building scalable and future-ready networks.

Specifications

Product Overview
Product Type Modular Ethernet Switch
Series HP 5400R zl2
Model 5406R 16SFP+ v3 zl2
Manufacturer Part Number JL095A
Form Factor 6-slot modular chassis
Weight 15.4 kg
Power Requirements AC 100-240 V, 50/60 Hz
Redundant Power Supply Support Yes
Hot-Swap Modules Supported

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Singapore
TAA Compliance Yes
Certifications UL, cUL, CB, FCC Class A, VCCI, EN 60950, RoHS
Safety Standards IEC 60950-1, EN 60825-1, EN 60825-2
EMI Standards FCC Part 15 Class A, EN 55022 Class A

Advanced Security Features
MAC Address Locking Yes
802.1X Authentication Yes
RADIUS Accounting Yes
Access Control Lists (ACLs) Yes, layer 2/3/4 ACLs
DHCP Snooping Yes
ARP Protection Yes
DoS Attack Prevention Yes

Interfaces
Port Configuration 16 x SFP+ ports
Interface Type SFP+
Data Transfer Rate 1 Gbps
Data Link Protocol Gigabit Ethernet
Switching Capacity 2 Tbps
Forwarding Rate 1002 Mpps
Expansion Slots 6
Stacking Capability Yes (via virtual switching framework)
Number of Power Supply Slots 2

Physical & Environmental
Dimensions (W x D x H) 43.5 x 38.1 x 20.1 cm
Operating Temperature 0°C to 45°C
Storage Temperature -40°C to 70°C
Operating Humidity 15% to 95% (non-condensing)
Storage Humidity 15% to 95% (non-condensing)
Cooling Type Active (Fan-based)
MTBF 1,218,296 hours
Noise Level 60 dB

Cloud Management & Licensing
Management Interface Command-line interface (CLI), SNMP v1/v2c/v3, Web GUI
Remote Management Protocol SNMP, RMON, Telnet, HTTP, HTTPS, SSH
Cloud Enabled Yes (via Aruba AirWave and Aruba Central)
Included Management Software ArubaOS-Switch
Licensing Model Perpetual or subscription-based (Aruba Central optional)
