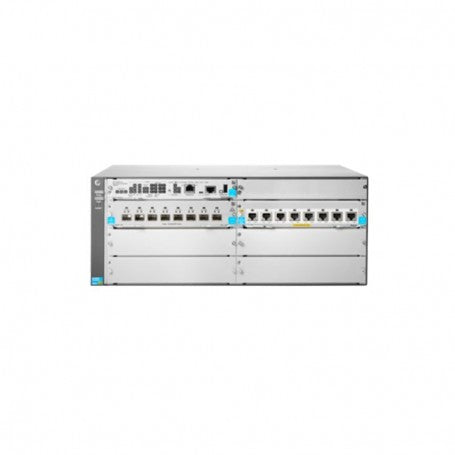

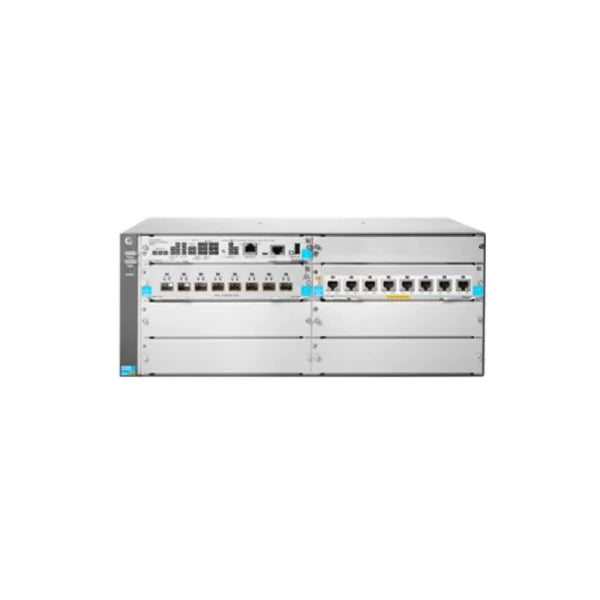

HP 5406R 8XGT PoE+ / 8SFP+ v3 zl2 Switch, JL002A

VENDOR: HP Mfg Part#: JL002A UPC#: 888182604397
1 4
Photo is for illustration purposes only. Actual product may be different.
$15,070.00
$15,070.00
Sale Sold out
MSRP: $19,034.00
Shipping calculated at checkout.
  • 8 PoE+ 10GBase-T ports supporting Power over Ethernet Plus
  • 8 SFP+ ports for high-speed 10 Gigabit Ethernet fiber connectivity
  • 10 Gbps data transfer rate per port
  • Dual-mode support for copper and fiber configurations
  • TAA compliant and manufactured in Singapore
  • Designed for use in enterprise and aggregation network layers

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports both PoE+ and SFP+ in one device, reducing the need for separate switches and simplifying network architecture.
  • Provides 16 high-speed ports with 10 Gbps throughput, ideal for bandwidth-intensive enterprise environments.
  • TAA compliance and Singapore-origin manufacturing make it suitable for government and secured installations.

Product Overview

The HP 5406R 8XGT PoE+ / 8SFP+ v3 zl2 Switch (JL002A) is a high-performance, enterprise-grade modular switch that features 8 PoE+ 10GBase-T ports and 8 SFP+ 10 Gigabit Ethernet ports, supporting a robust 10 Gbps data transfer rate. This switch is TAA compliant and manufactured in Singapore, making it an excellent choice for public sector deployment. Built for flexible and scalable networking, it’s ideal for core and aggregation environments within IT-infrastructure-heavy businesses.

Specifications

Product Overview
Product Type Modular Layer 3 Switch
Model Number JL002A
Mounting Type Rack-mountable
Form Factor 6-slot modular chassis
Weight 11.9 kg (26.24 lb)
Power Supply Dual hot-swappable power supplies supported
Power Consumption (Maximum) up to 2400 Watts with all modules populated
Switching Capacity 2.56 Tbps
Forwarding Rate 1904 Mpps

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Singapore
TAA Compliance Yes
Certifications UL, CSA, CB, CE, FCC, VCCI, BSMI, C-Tick
RoHS Compliance Yes
EPEAT Registered Yes (Gold)
Energy Efficient Ethernet (EEE) Yes

Advanced Security Features
Access Control IEEE 802.1X, MAC-based, Web-based authentication
Firewall Capabilities Access Control Lists (ACLs) for Layer 2 to Layer 4
Secure Management SSH, SSL, SNMPv3, RADIUS/TACACS+
Port Security Yes
Dynamic ARP Protection Yes
IP Source Guard Yes
DHCP Snooping Yes

Interfaces
10GBase-T Ports (PoE+) 8
SFP+ Ports 8
Expansion Slots 6 module slots + 1 management slot
Network Protocols IPv4, IPv6, RIP, OSPF, BGP
Data Transfer Rate 10 Gbps
Data Link Protocol 10 Gigabit Ethernet
Total Ports 16 (with 8XGT PoE+ / 8 SFP+ module)
Stacking Capability Yes, via virtual switching framework (VSF)

Physical & Environmental
Dimensions (W x D x H) 44.3 x 44.2 x 19.7 cm (17.44 x 17.4 x 7.75 in)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity Range 15% to 95%, non-condensing
Acoustic Level (at 25°C) 56.2 dB
Cooling System Redundant fans, front-to-back airflow

Cloud Management & Licensing
Management Interface Web GUI, Command Line Interface (CLI), SNMP
Network Management Tools Aruba AirWave, Aruba Central (with license)
Cloud Support Yes, via Aruba Central (optional licensing)
Licensing Model Modular OS licensing; additional licenses for advanced features
