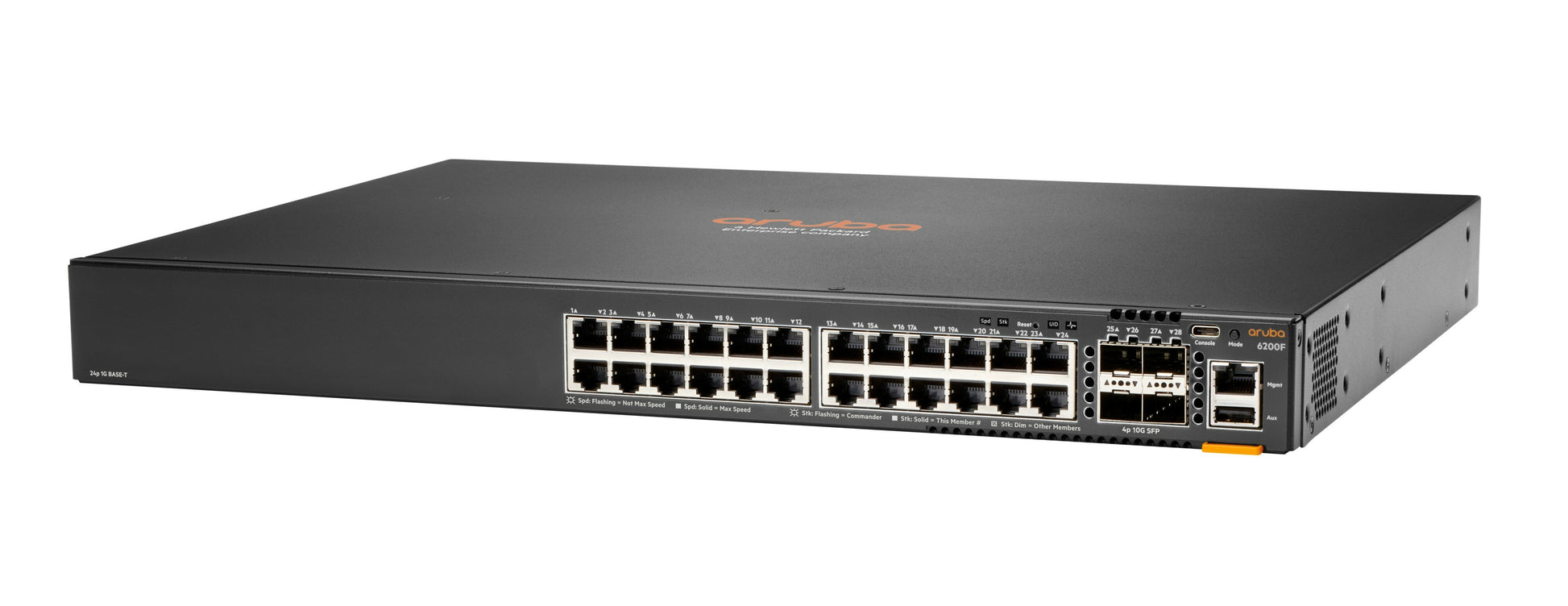

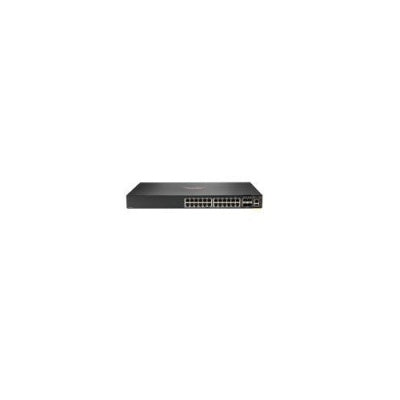

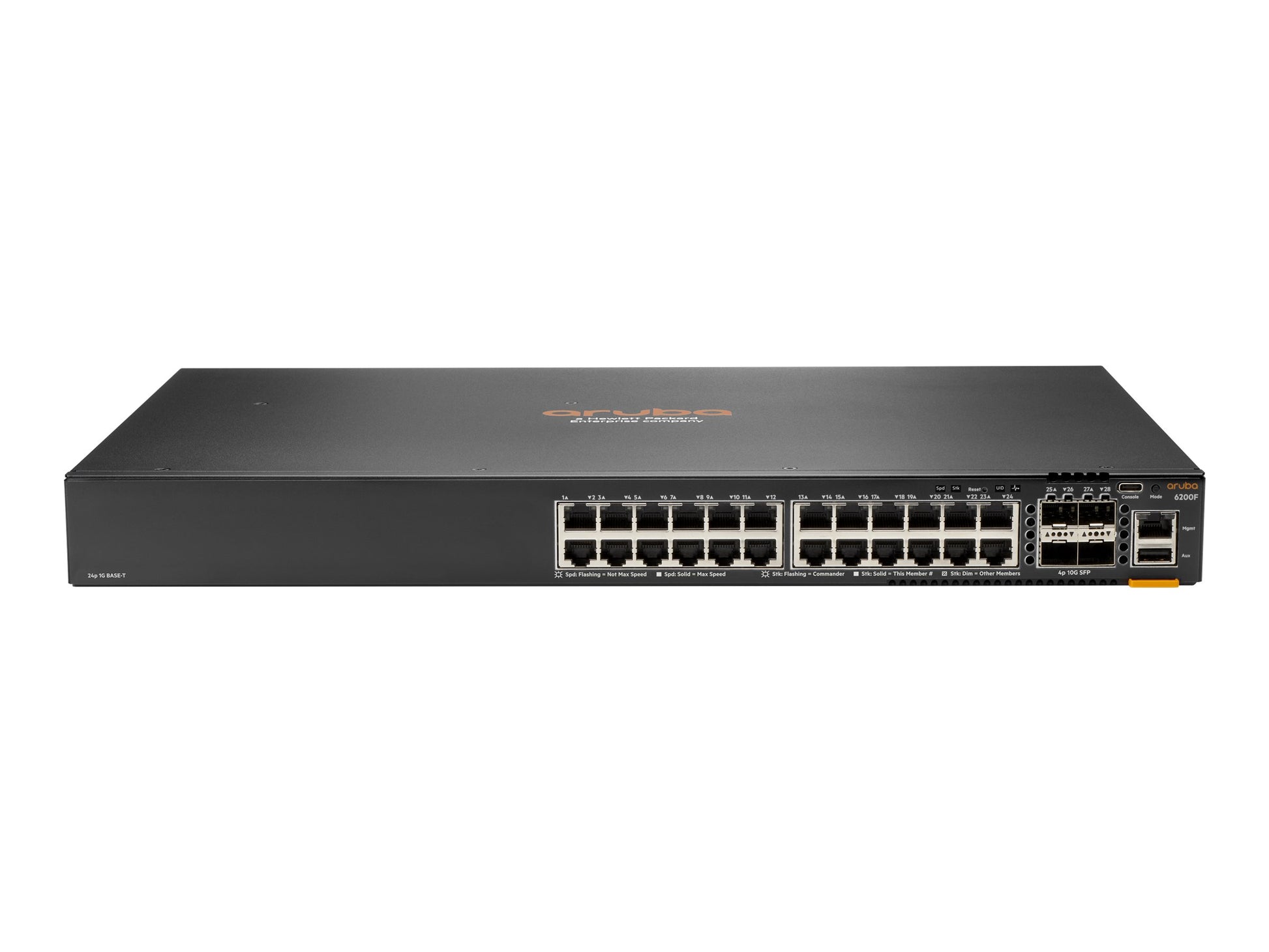

HP Aruba 6200F 24G 4SFP+ Switch JL724A#B2E

VENDOR: HP Mfg Part#: JL724A#B2E UPC#: 190017408460
1 5
Photo is for illustration purposes only. Actual product may be different.
$2,852.00
$2,852.00
Sale Sold out
MSRP: $6,470.00
Shipping calculated at checkout.
  • 24x 10/100/1000BASE-T ports and 4x 1/10G SFP+ ports for scalable connectivity
  • ARM Cortex A72 processor with 8 GB RAM and 16 GB flash for efficient processing
  • Layer 3 Advanced Routing support including ACLs and Access OSPF
  • USB-C Console, Bluetooth management, and USB Type-A Host port
  • 59W maximum power consumption with 100V–240V input range
  • TAA compliant and RoHS certified for enterprise and government use

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • High-performance Layer 3 switching with robust feature set, ideal for modern enterprise edge deployments
  • Flexible interface options, including USB and Bluetooth, streamline configuration and management workflows
  • Energy-efficient and rack-mountable design backed by a limited lifetime warranty ensures long-term ROI

Product Overview

The HP Aruba 6200F 24G 4SFP+ Switch (JL724A#B2E) is part of the Aruba Networking CX 6200 Series, engineered for high-efficiency campus access and aggregation switching. It features 24 10/100/1000BASE-T Ethernet ports and 4 SFP+ uplinks supporting 1/10G speeds for flexible fiber connectivity. With an ARM Cortex A72 processor and 8 GB RAM, it provides robust performance for Layer 3 routing with support for static routing, Access OSPF, and ACLs.

This switch offers 31 interface ports, including USB-C console, USB Type-A host, and Bluetooth configuration access using the Aruba CX Mobile App. Power-efficient with a 59W operational draw and universal voltage support, it is rack-mountable with a slim 1.73-inch profile. The product is TAA-compliant, RoHS certified, and backed by a limited lifetime warranty, making it ideal for enterprise-grade and government environments.

Specifications

Product Overview
Product Type Managed Layer 3 Switch
Model Series Aruba CX 6200 Series
Manufacturer Part Number JL724A#B2E
Form Factor 1U Rack-Mountable
Processor Type ARM Cortex A72
Installed RAM 8 GB DDR4
Flash Memory 16 GB eMMC
Weight 9.61 lbs
Power Supply Type Internal AC Power Supply
Power Consumption (Typical) 59 Watts
Max Power Supply Output 200 Watts
Input Voltage Range 100V–120V / 200V–240V AC

Wireless Features
Bluetooth for Configuration Yes

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
RoHS Compliance Yes
Certifications UL, CSA, CB, CE, FCC Class A, VCCI, BSMI, KC

Advanced Security Features
Access Control Lists (ACLs) Yes
DHCP Snooping Yes
Dynamic ARP Protection Yes
802.1X Network Access Control Yes
MACsec Support No

Interfaces
10/100/1000BASE-T Ports 24
SFP+ Ports (1/10GbE) 4
USB-C Console Port 1
Out-of-Band Management Port 1 RJ-45
USB Host Port (Type-A) 1
Bluetooth Console Support Yes (via Aruba CX Mobile App)
Total Interface Count 31
Switching Capacity 128 Gbps
Forwarding Rate 95 Mpps
MAC Address Table Size 16,000 entries
Routing Protocols Supported Static, RIP, Access OSPF

Physical & Environmental
Width 17.4 in (442 mm)
Depth 12.9 in (328 mm)
Height 1.73 in (44 mm)
Operating Temperature Range 0°C to 45°C
Storage Temperature Range -40°C to 70°C
Operating Humidity 5% to 95% non-condensing
Acoustic Noise ≤ 36.7 dB(A)
Cooling Method Fan-cooled

Cloud Management & Licensing
Cloud-Managed Yes (via Aruba Central)
Local Management Interface Web GUI, CLI, Aruba CX Mobile App
License Requirements Optional Aruba Central Subscription
Zero Touch Provisioning Yes
