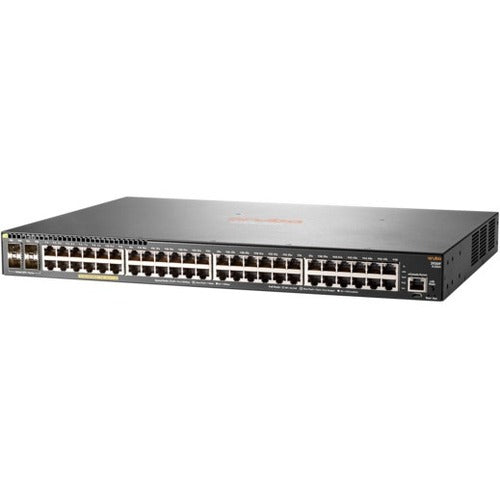

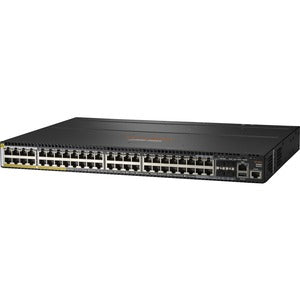

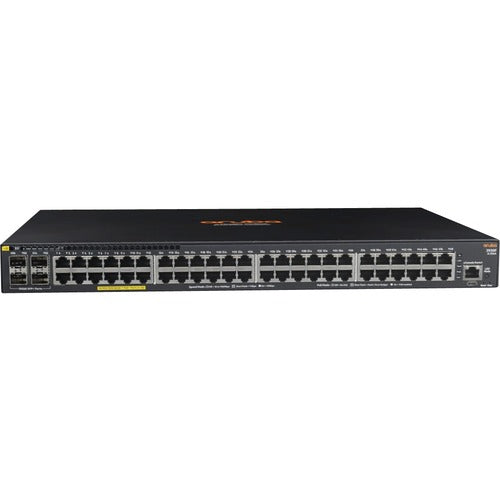

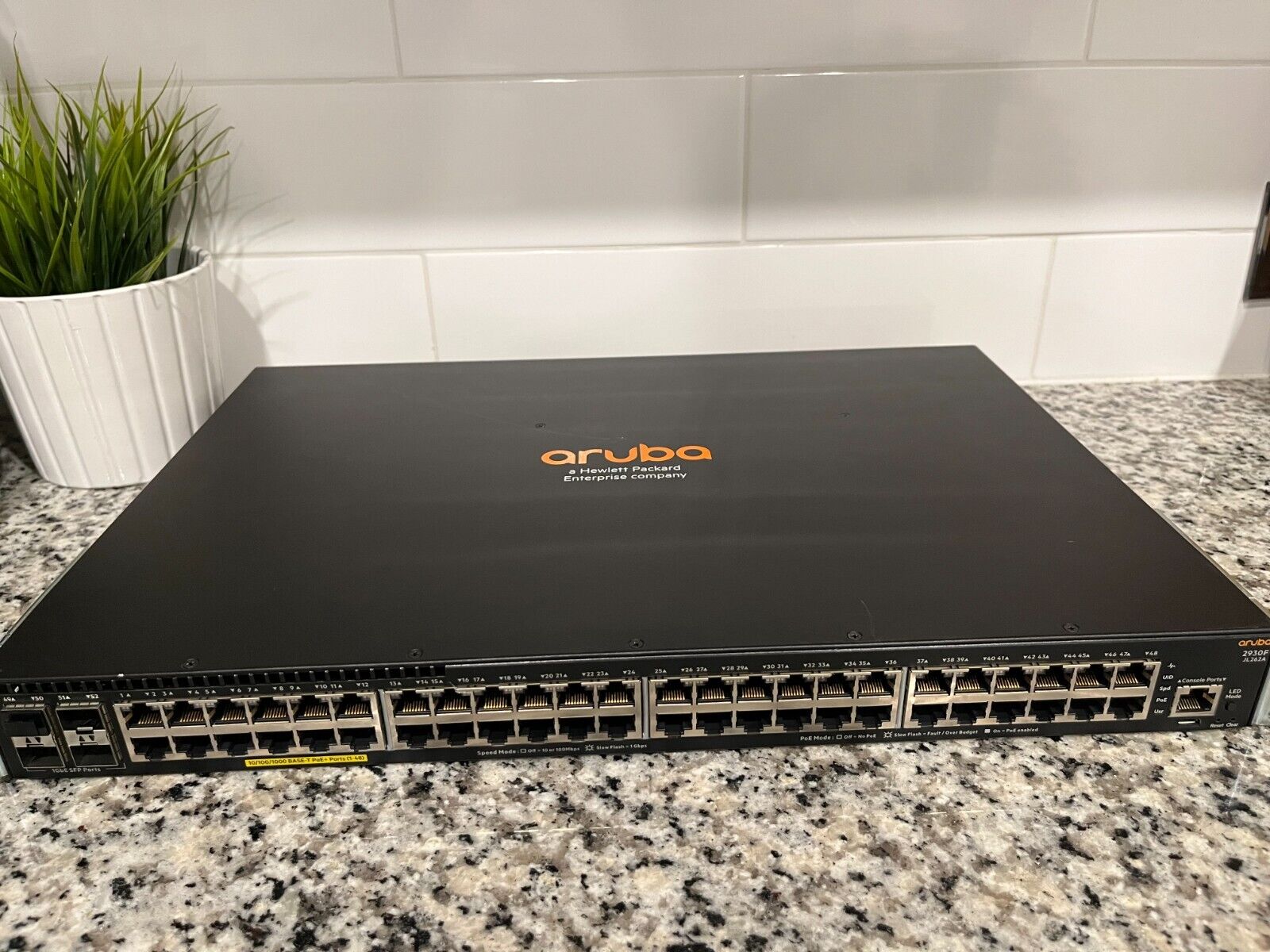

HP Aruba 6200F 24G CL4 4SFP+ 370W Switch JL725A#B2E

VENDOR: HP Mfg Part#: JL725A#B2E UPC#: 190017408705
1 5
Photo is for illustration purposes only. Actual product may be different.
$3,468.00
$3,468.00
Sale Sold out
MSRP: $7,868.00
Shipping calculated at checkout.
  • 24x 10/100/1000BASE-T Class 4 PoE ports with total 370W output supporting IEEE 802.3af/at
  • 4x 1/10G SFP+ uplink ports for high-speed connectivity
  • ARM Cortex A72 processor with 8 GB RAM and 16 GB flash memory
  • Advanced Layer 3 routing support for network segmentation
  • USB-C console port, USB host port, and Bluetooth adapter for management
  • TAA-compliant design with limited lifetime warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Offers high PoE power capacity (370W) across 24 ports, ideal for powering a wide range of IoT and network devices.
  • Integrated Layer 3 routing and advanced hardware (ARM Cortex A72) ensures flexible performance in complex networks.
  • Backed by a limited lifetime warranty and TAA compliance, providing long-term investment protection and regulatory assurance.

Product Overview

The HP Aruba 6200F 24G CL4 4SFP+ 370W Switch (JL725A#B2E) is a Layer 3 enterprise-class switch that includes 24x 10/100/1000BASE-T PoE+ ports and 4x 1/10G SFP+ uplinks. With support for IEEE 802.3af/at standards and up to 370W of PoE power, it efficiently powers edge devices. The switch features an ARM Cortex A72 processor, 8 GB RAM, and 16 GB of flash memory ensuring performance and reliability. It offers USB and Bluetooth interfaces for flexible configuration and is TAA-compliant with a limited lifetime warranty, making it ideal for scalable branch or campus network applications.

Specifications

Product Overview
Type Layer 3 Managed Switch
Form Factor 1U Rack-mountable
Weight 10.8 lbs.
Power Requirements 100V-120V / 200V-240V AC
Power Consumption (Maximum) 370W (PoE), 65W (Operational)
PoE Budget 370W
Processor ARM Cortex A72
RAM 8 GB
Flash Memory 16 GB
Routing Capability Layer 3 Advanced

Wireless Features
Bluetooth Support Supported via external adapter for Aruba CX Mobile App

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications FCC Class A, IC, CE, VCCI, BSMI, RCM, UL, EN 62368-1
Environmental Compliance RoHS, WEEE

Advanced Security Features
Access Control 802.1X, MAC authentication, captive portal
Policy Enforcement Firewall (PEF) Supported with Aruba Central license
MACsec Support No
Storm Control Supported
DHCP Snooping Yes
Dynamic ARP Inspection (DAI) Yes
IP Source Guard Yes

Interfaces
10/100/1000BASE-T Ports 24 x Class 4 PoE+
SFP+ Ports 4 x 1/10G SFP+
USB Ports 1 x USB-C Console, 1 x USB Type-A Host
Out-of-Band Management (OOBM) Port 1 x RJ-45
Bluetooth Management Supported via Bluetooth Adapter
Total Ports 28
Data Link Protocols Gigabit Ethernet, Fast Ethernet, IEEE 802.3ab, IEEE 802.3u
PoE Standards Supported IEEE 802.3af, IEEE 802.3at
Switching Capacity 176 Gbps
Forwarding Rate 95.23 Mpps

Physical & Environmental
Width 1.73 inch (4.4 cm)
Height 17.4 inch (44.2 cm)
Depth 12.9 inch (32.8 cm)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 15% to 95% non-condensing
Acoustic Noise Level 45 dB (typical)
Cooling Active; front-to-back airflow

Cloud Management & Licensing
Management Interface Aruba Central, Aruba CX Mobile App, web GUI, CLI, REST API
Cloud-Enabled Yes (with Aruba Central)
Included Licensing None; optional licenses available via Aruba Central
Configuration Interface Options Web GUI, CLI, Mobile App
