HP Aruba 6200F 48G 4SFP+ Switch, 1U, 1Gbps, JL726A#ABA

VENDOR: HP Mfg Part#: JL726A#ABA UPC#: 190017408743
1 5

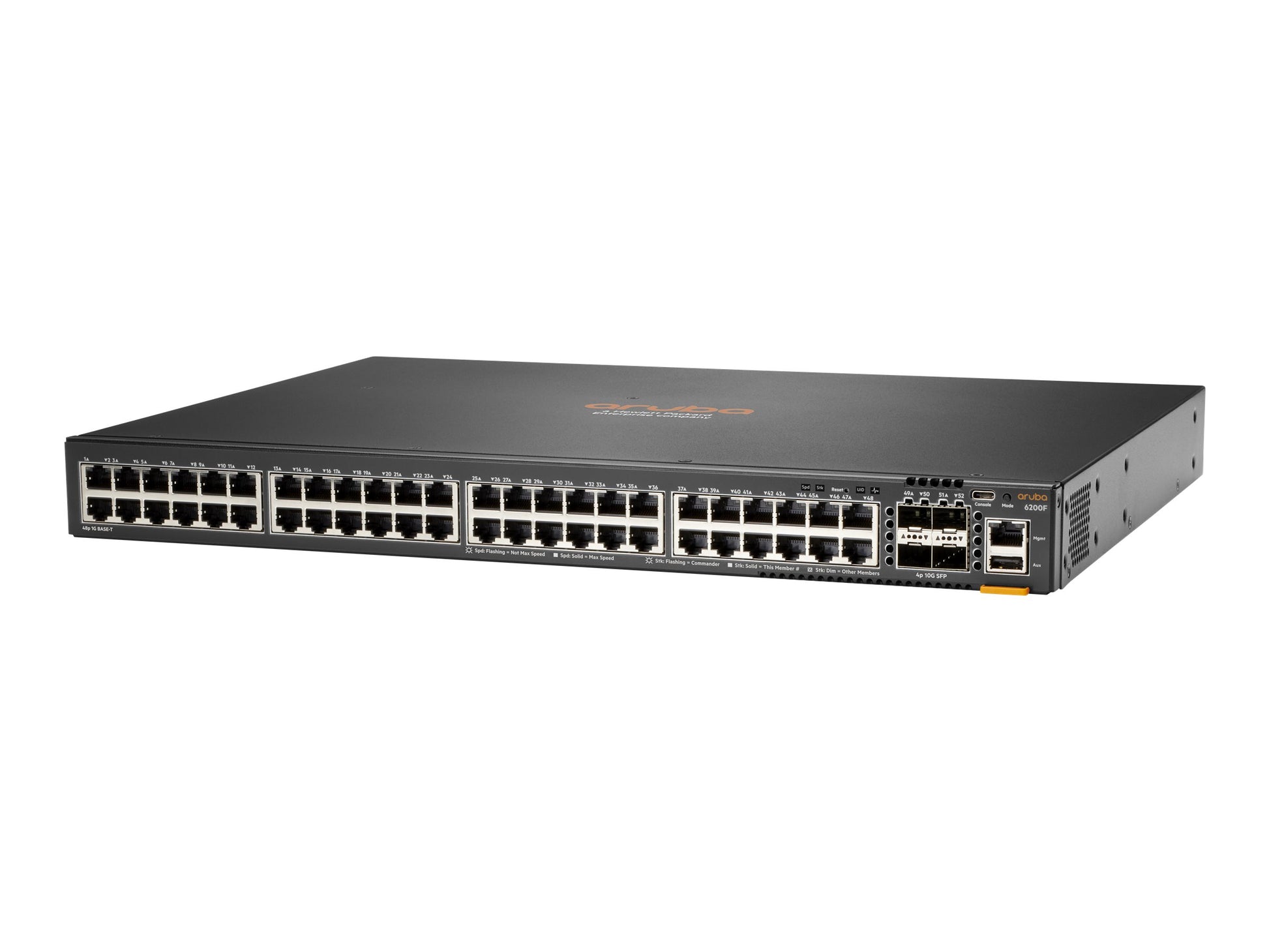

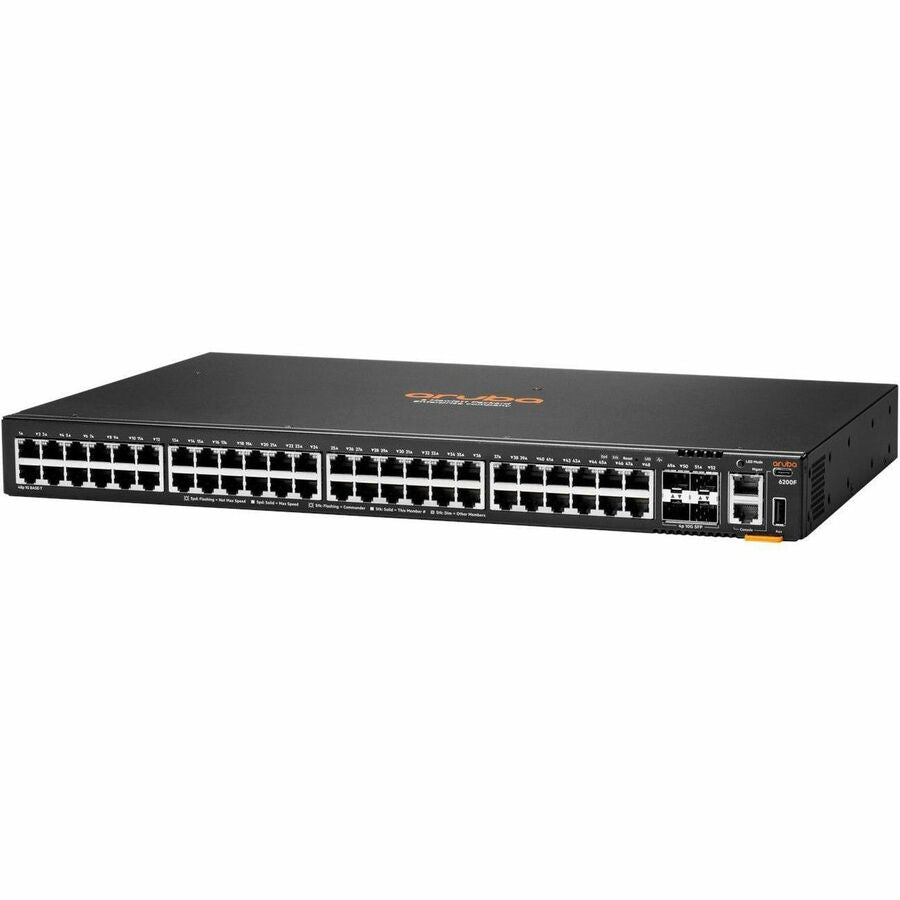

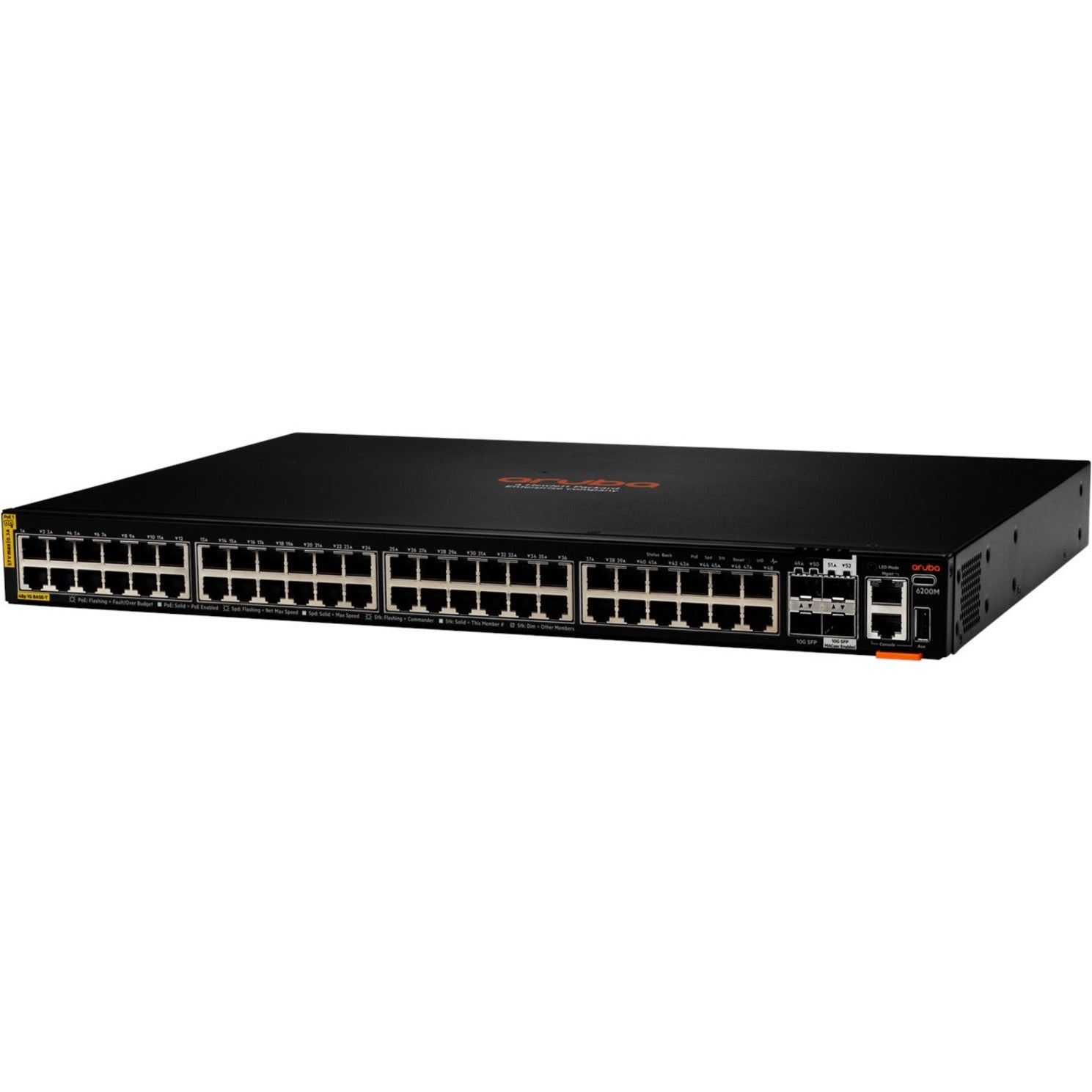

Photo is for illustration purposes only. Actual product may be different.
$4,246.00
$4,246.00
Sale Sold out
MSRP: $9,634.00
Shipping calculated at checkout.
  • 48x 10/100/1000BASE-T and 4x 1/10G SFP ports supporting 55 total connections
  • Layer 3 advanced routing with built-in Network Analytics Engine (NAE)
  • ARM Cortex A72 processor with 8GB RAM and 16GB flash memory
  • 1U rack-mountable design, wired connectivity, and 68W max power consumption
  • Multiple management interfaces including USB-C, USB-A, OOBM, and Bluetooth
  • TAA compliant with limited lifetime warranty for enterprise-grade reliability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports high-density edge switching with 55 ports, ideal for growing network infrastructures.
  • Built-in analytics with Aruba’s NAE enables proactive issue detection and faster resolution.
  • TAA compliance and lifetime warranty mitigate risk and support long-term commercial and government deployment.

Product Overview

The HP Aruba Networking CX 6200F Switch (JL726A#ABA) is a Layer 3 managed switch built for mid-size to large-scale networking environments. This 1U rack-mountable device provides 48x 10/100/1000BASE-T and 4x 1/10G SFP ports, with a total of 55 ports for comprehensive connectivity. It integrates an ARM Cortex A72 processor, 8GB RAM, and 16GB Flash for efficient performance and processing. NAE capabilities offer real-time network diagnostics, lowering operational costs and reducing downtime. The switch supports USB-C, USB-A, and Bluetooth console access for flexible administration and runs on a 100V–240V power input with 68W max consumption. Its TAA compliance and lifetime warranty make it ideal for government and secure infrastructure applications.

Specifications

Product Overview
Model HPE Aruba Networking CX 6200 Switch
Product Type Managed Layer 3 Switch
Form Factor 1U Rack-mountable
Processor Type ARM Cortex A72
Installed RAM 8 GB
Flash Memory 16 GB
Weight 9.81 lbs.
Power Consumption (Max) 68 Watt
Power Supply Type Internal AC Power Supply
Power Voltage Required 100V–240V AC

Wireless Features
Bluetooth Console Access Supported via Adapter

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, CSA, CE, FCC Class A

Advanced Security Features
Access Control Lists (ACLs) Yes
802.1X Authentication Yes
MACsec Encryption Supported (Software-dependent)
DHCP Snooping Yes
Dynamic ARP Protection Yes
IP Source Guard Yes

Interfaces
Total Ports 55
10/100/1000BASE-T Ports 48
1/10GbE SFP+ Ports 4
USB-C Console Port 1
USB Type-A Port 1
Out-of-Band Management Port (OOBM) 1
Bluetooth Console Adapter Support Yes
Data Transfer Rate 1 Gbps
Data Link Protocol Gigabit Ethernet
Routing Protocol Layer 3 Advanced

Physical & Environmental
Width 1.73 inch
Depth 17.4 inch
Height 12.9 inch
Min Operating Temperature 0 °C
Max Operating Temperature 45 °C
Min Storage Temperature -40 °C
Max Storage Temperature 70 °C

Cloud Management & Licensing
Management Interface Aruba AOS-CX CLI, Web GUI, Aruba CX Mobile App, REST API
Cloud-Based Management Supported via Aruba Central
Network Analytics Engine (NAE) Included
Licensing Model OS and features included, Central subscription required for cloud
