HP Aruba 6200F 48G 4SFP+ Switch JL726A#B2E

VENDOR: HP Mfg Part#: JL726A#B2E UPC#: 190017408941
1 3

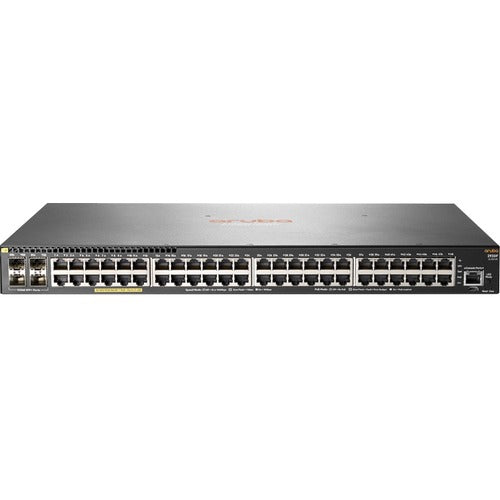

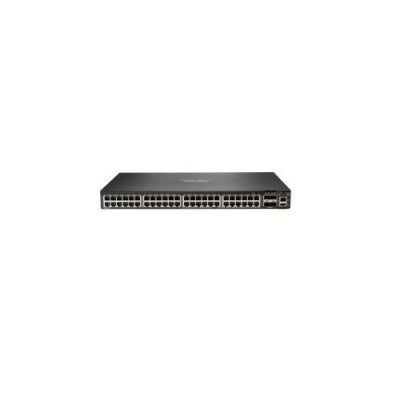

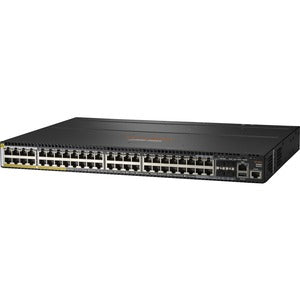

Photo is for illustration purposes only. Actual product may be different.
$4,250.00
$4,250.00
Sale Sold out
MSRP: $9,643.00
Shipping calculated at checkout.
  • 48x 10/100/1000BASE-T and 4x 1/10G SFP+ ports for high-density, flexible connectivity
  • ARM Cortex A72 processor with 8 GB RAM and 16 GB Flash for fast, efficient performance
  • Aruba Gen7 ASIC architecture enabling wire-speed switching and adaptive power usage
  • Advanced Layer 3 routing capabilities ideal for enterprise network segmentation
  • USB-C, USB-A, OOBM, and Bluetooth interfaces for versatile management and deployment
  • Operational power consumption of 68W and TAA/RoHS compliance for global deployments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Offers high port density with 48 Gigabit and 4 SFP+ uplinks, supporting scalable growth
  • Built on Aruba’s Gen7 ASIC with wire-speed Layer 3 routing, optimizing performance for demanding applications
  • Provides comprehensive management and setup options, including USB and Bluetooth for streamlined installation

Product Overview

The HP Aruba 6200F 48G 4SFP+ Switch (JL726A#B2E) delivers wired Gigabit performance with 48x 10/100/1000BASE-T ports and 4x 1/10G SFP+ uplinks. Powered by an ARM Cortex A72 processor, it features 8 GB RAM and a 16 GB flash for efficient data handling. Aruba's Gen7 ASIC architecture provides low-latency, wire-speed switching and routing, along with adaptive power efficiency. Integrated USB, OOBM, and Bluetooth interfaces support rapid deployment via the Aruba CX Mobile App. With Layer 3 advanced routing, a lifetime warranty, and TAA compliance, this switch is a reliable choice for scalable enterprise edge networks.

Specifications

Product Overview
Product Type Managed Layer 3 Network Switch
Model HPE Aruba Networking CX 6200 Switch Series
Part Number JL726A#B2E
Form Factor 1U Rack-mountable
Processor Type ARM Cortex A72
Installed RAM 8 GB
Flash Memory 16 GB
Switching Capacity 176 Gbps
Forwarding Rate 98.2 Mpps
Power Supply Type Internal Power Supply
Power Consumption (Typical) 68 W
Maximum Power Consumption 68 W
Voltage Required 100V-120V/200V-240V AC
Weight 9.81 lbs

Cloud Management & Licensing
Cloud Management Supported via Aruba Central
Mobile App Support Aruba CX Mobile App
Management Interface Web GUI, CLI, REST API, SNMP
Software Licenses Included No additional license required for base features

Wireless Features
Bluetooth Interface Integrated Bluetooth BLE for local management

Compliance & Origin
Certifications UL, CSA, CE, FCC Class A, VCCI, RCM, BSMI, IEC/EN 60950-1/62368-1
RoHS Compliant Yes
TAA Compliant Yes
Country of Origin Singapore
Warranty Type Limited Lifetime Warranty

Interfaces
10/100/1000BASE-T Ports 48
1/10G SFP+ Ports 4
USB Type-C Console Port 1
Out-of-Band Management Port (OOBM) 1
USB Type-A Host Port 1
Bluetooth Management Adapter 1 (for Aruba CX Mobile App)
Total Interface Ports 55
Data Link Protocols Ethernet, Fast Ethernet, Gigabit Ethernet
Status Indicators Port status, Power, System, Locator

Advanced Security Features
Access Control 802.1X, MAC Authentication, Web Authentication
Switching Security DHCP snooping, Dynamic ARP protection, Port security
Traffic Filtering ACLs (IPv4/IPv6)
Management Security RADIUS, TACACS+, SSH, SSL, SNMPv3

Physical & Environmental
Width 17.4 inch
Depth 12.9 inch
Height 1.73 inch
Minimum Operating Temperature 0 °C
Maximum Operating Temperature 45 °C
Minimum Storage Temperature -40 °C
Maximum Storage Temperature 70 °C
Operating Humidity Range 5% to 95% non-condensing
Cooling System Fan-cooled
Mounting Options Rack-mount kit included
