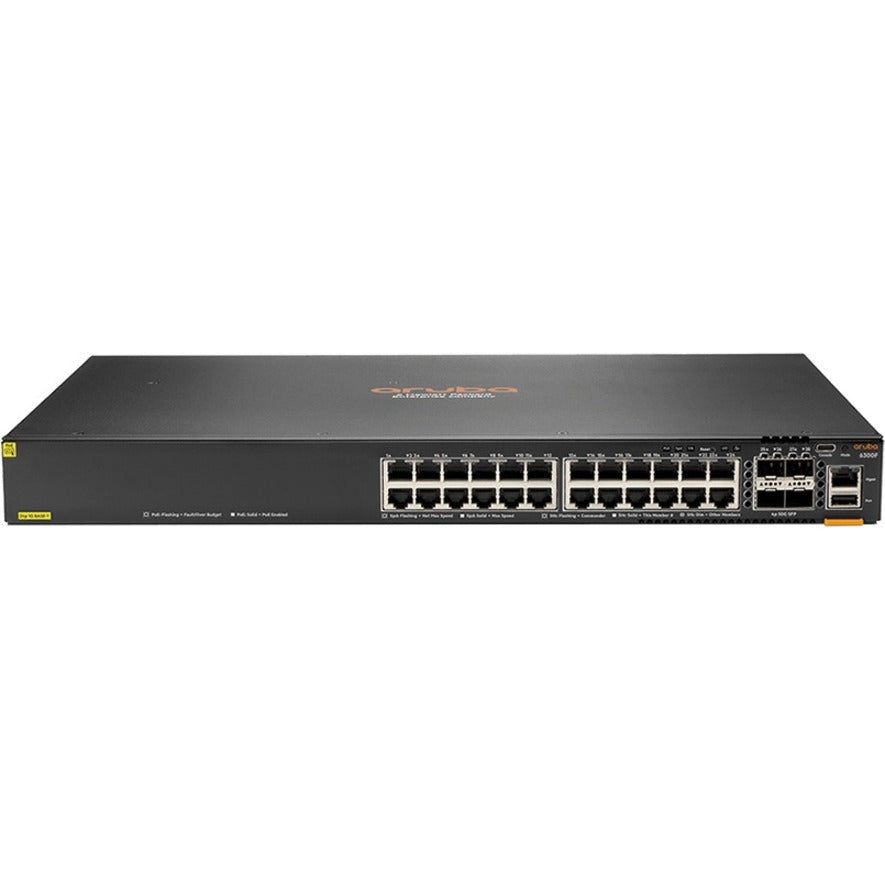

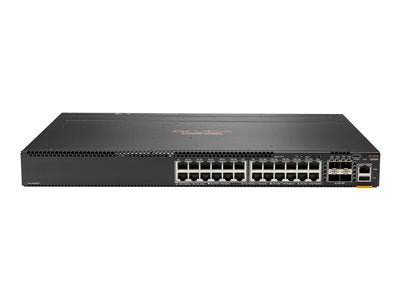

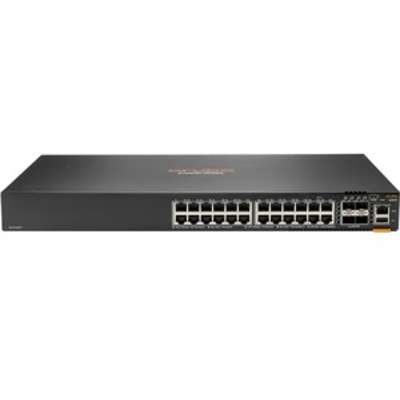

HP Aruba 6300F 24G 4SFP56 Network Switch (JL668A#ABA)

VENDOR: HP Mfg Part#: JL668A#ABA UPC#: 190017340951
1 5
Photo is for illustration purposes only. Actual product may be different.
$8,000.00
$8,000.00
Sale Sold out
MSRP: $10,105.00
Shipping calculated at checkout.
  • - 24x 10/100/1000 BASE-T Gigabit Ethernet ports and 4x 1/10/25/50G SFP uplink ports
  • - Quad-core ARM Cortex A72 1.8GHz processor for high-throughput switching
  • - 8 GB DDR4 RAM and 32 GB eMMC storage for fast data access and storage
  • - Layer 3 advanced routing support with PoE capability
  • - SNMP-based remote management for enterprise integration
  • - TAA compliant and operational in a wide thermal range (0°C to 45°C)

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers scalable performance with 24 Gigabit and 4 multi-gig SFP ports handling up to 50Gbps connectivity.
  • Integrated Layer 3 routing, PoE support, and SNMP management enable deployment versatility in edge or core roles.
  • Built for enterprise reliability with ARM Cortex A72 processing, robust thermal tolerance, and TAA compliance.

Product Overview

The HP Aruba 6300F 24G 4SFP56 (JL668A#ABA) is a Layer 3 wired switch designed for enterprise environments requiring advanced routing, scalable ports, and energy efficiency. It includes 24 Gigabit Ethernet ports and 4 SFP ports supporting up to 50Gbps. Powered by an ARM Cortex A72 processor with 8GB DDR4 RAM and 32GB eMMC, it enables robust performance and data reliability. The switch supports PoE, SNMP remote management, and has TAA compliance for government or regulated applications. It operates efficiently at 63W max and withstands a wide temperature range for varied deployment scenarios.

Specifications

Product Overview
Manufacturer HP
Product Name HP Aruba 6300F 24G 4SFP56
Model Number JL668A#ABA
Product Type Managed Layer 3 Switch
Series Aruba CX 6300 Switch Series
Form Factor 1U Rack-Mountable
Weight 9.61 lbs.
Power Supply Type Internal Power Supply
Power Consumption (Max) 63 Watt
Voltage Required 100-120/200-240 VAC
Processor Type ARM Cortex A72
Installed RAM 8 GB DDR4
Flash Memory 32 GB eMMC

Wireless Features

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, CB, FCC, IC, CE, VCCI, BSMI

Advanced Security Features
Security Features Dynamic segmentation, Access control lists (ACLs), 802.1X authentication, MACsec
MACsec Encryption Support Yes
Access Control Role-based access control (RBAC)
Traffic Filtering Content-aware access control and filtering
Secure Management HTTPS, SSH, SNMPv3

Interfaces
Total Number of Ports 28
10/100/1000BASE-T Ports 24
SFP56 Ports 4
Interface Types (24) RJ-45, (4) SFP56
Supported SFP Speeds 1/10/25/50 Gbps
Data Transfer Rate 1 Gbps (Ethernet), up to 50 Gbps (SFP56)
Port Speed Type Auto-negotiation
PoE Support Yes

Physical & Environmental
Width 17.4 inch
Depth 12.9 inch
Height 1.73 inch
Minimum Operating Temperature 0 °C
Maximum Operating Temperature 45 °C
Minimum Storage Temperature -40 °C
Maximum Storage Temperature 70 °C

Cloud Management & Licensing
Remote Management Protocol SNMP
Management Interface Aruba Central (cloud-based), Web GUI, CLI
Licensing Model Subscription-Based for Aruba Central
Cloud Features Zero Touch Provisioning, AI-powered analytics
