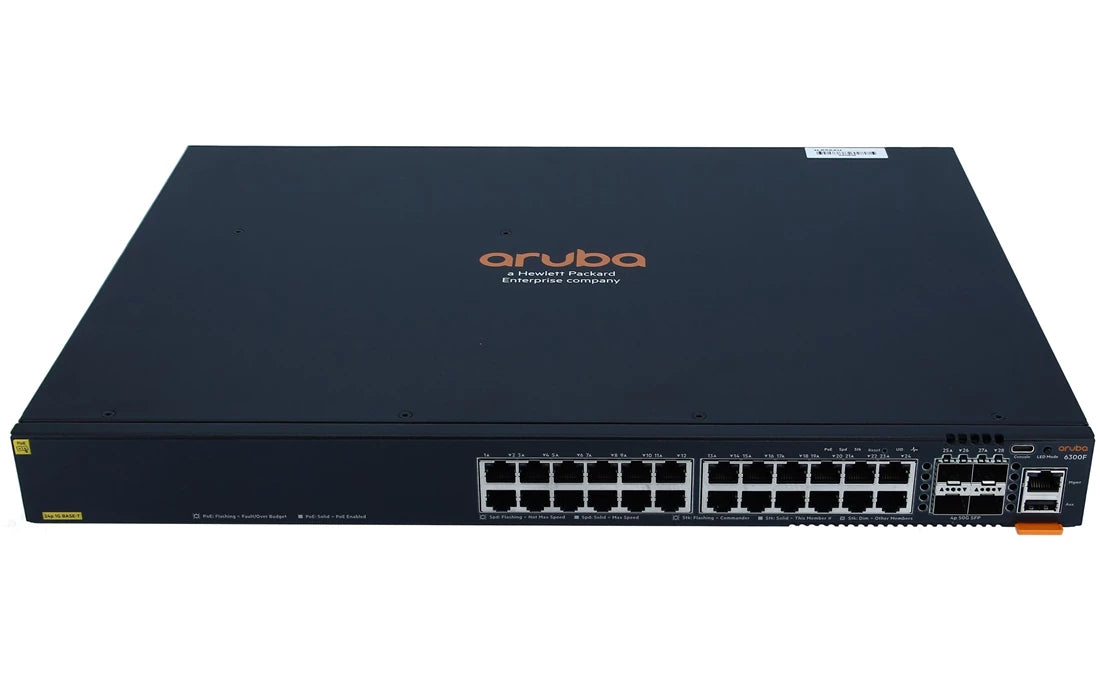

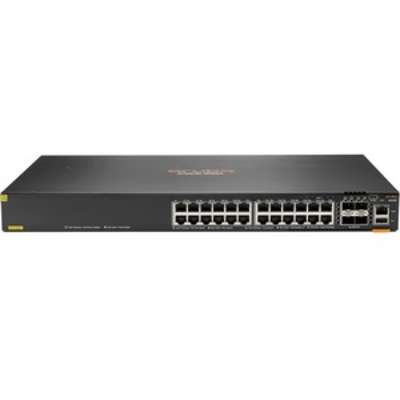

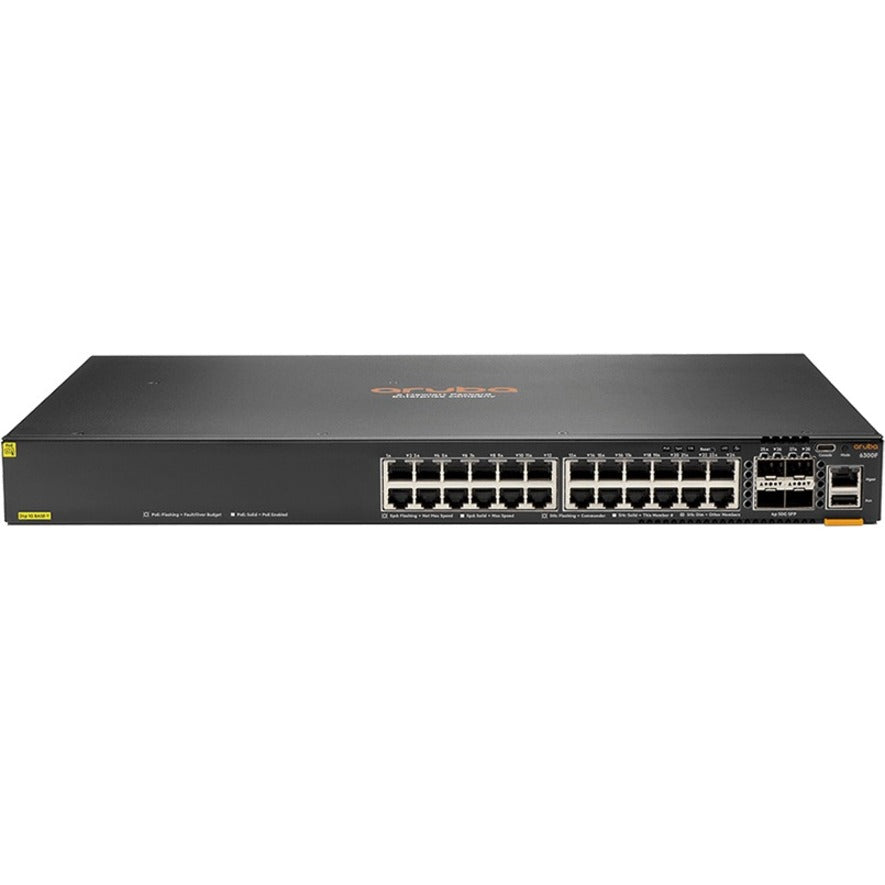

HP Aruba 6300F 24G CL4 PoE Switch 4SFP56 JL666A#ABA

VENDOR: HP Mfg Part#: JL666A#ABA UPC#: 190017340517
1 5
Photo is for illustration purposes only. Actual product may be different.
$9,361.00
$9,361.00
Sale Sold out
MSRP: $11,824.00
Shipping calculated at checkout.
  • 24x 10/100/1000 BASE-T PoE+ ports supporting up to 30W per port
  • 4x multi-speed SFP56 uplink ports (1/10/25/50G)
  • 8 GB DDR4 RAM and 32 GB eMMC flash storage
  • Advanced Layer 3 features including OSPF, BGP, EVPN, and VXLAN support
  • Security enhancements including MACsec 256 encryption and robust QoS
  • Stackable 1U form factor with 67W maximum power consumption

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Offers high-density PoE+ support with 24 ports, ideal for powering VoIP phones, access points, and IP cameras
  • Delivers enterprise-level performance with features like EVPN, VXLAN, and BGP, supporting scalable and secure network architectures
  • Built-in hardware-level security features including MACsec 256 encryption enhance data protection in sensitive environments

Product Overview

The HP Aruba 6300F 24G CL4 PoE 4SFP56 switch (JL666A#ABA) is part of the Aruba CX 6300 Switch Series, offering advanced Layer 3 switching capabilities and an ideal blend of speed, power, and security for mid-to-large scale enterprise environments. Equipped with a quad-core ARM Cortex A72 1.8GHz processor and 8 GB DDR4 RAM, it delivers rapid and reliable data processing. This switch features 24 10/100/1000 BASE-T PoE+ ports, each supporting up to 30W of power delivery, alongside four multi-speed SFP56 uplink ports (supporting 1/10/25/50G) for flexible, high-bandwidth network aggregation.

Designed for wired connectivity, the Aruba 6300F integrates advanced networking protocols including Layer 3 routing with OSPF, BGP, and support for modern overlays like EVPN and VXLAN. It offers extensive QoS and robust security measures, such as MACsec 256 encryption, to protect data in transit. Additional support for Precision Time Protocol (PTP), Audio Video Bridging (AVB), and Long Reach Multimode (LRM) enhances its adaptability in AV-heavy or latency-sensitive environments. With a 1U form factor and stackable design, deployment is space-efficient and scalable. The device operates within a temperature range of 0°C to 45°C and offers flexible power input with a maximum power consumption of just 67W, making it energy-conscious yet powerful.

This switch suits various use cases from campus edge deployments to branch office aggregation layers, offering TAA compliance and reliable global support services through HP. Its combination of performance, feature-rich firmware, and enterprise-grade hardware translates into a solid return on investment for IT infrastructure growth.

Specifications

Product Overview
Type Layer 3 Managed Switch
Model Aruba CX 6300 Switch Series
Manufacturer Part Number JL666A#ABA
Form Factor 1U Rack-mountable
Processor Quad-core ARM Cortex A72 1.8GHz
Installed RAM 8 GB DDR4
Flash Memory 32 GB
Weight 10.91 lbs.
Power Requirements 100-120/200-240 VAC
Max Power Consumption 67 Watt
PoE Power Budget Up to 740W
Power Supply Internal, 950W provided

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
RoHS Compliance Yes
Certifications UL, CSA, IEC, EN, FCC

Advanced Security Features
MACsec Encryption 256-bit (IEEE 802.1AE) supported
Dynamic Segmentation Supported
Access Control Lists (ACLs) Yes
DHCP Snooping Yes
IP Source Guard Yes
802.1X Authentication Supported
Port Security Yes
Traffic Filtering Yes
DoS Protection Yes

Interfaces
Total Ports 28
10/100/1000BASE-T PoE+ Ports 24
SFP56 Ports 4 (1/10/25/50G Multi-speed)
Data Transfer Rate Up to 50 Gbps (uplinks)
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Power Over Ethernet (PoE) PoE+ (802.3at), up to 30W per port

Physical & Environmental
Width 1.73 in
Depth 17.4 in
Height 12.9 in
Min Operating Temperature 0°C
Max Operating Temperature 45°C
Min Storage Temperature -40°C
Max Storage Temperature 70°C

Cloud Management & Licensing
Cloud Management Aruba Central (subscription required)
Management Interface Web GUI, CLI, SNMP v2/v3
Management Features REST API, NetEdit, Python and Ansible support
Included Licensing None; licenses sold separately
