HP Aruba 6300F 48G 4SFP56 Switch JL667A#ABA

VENDOR: HP Mfg Part#: JL667A#ABA UPC#: 190017340739
1 4

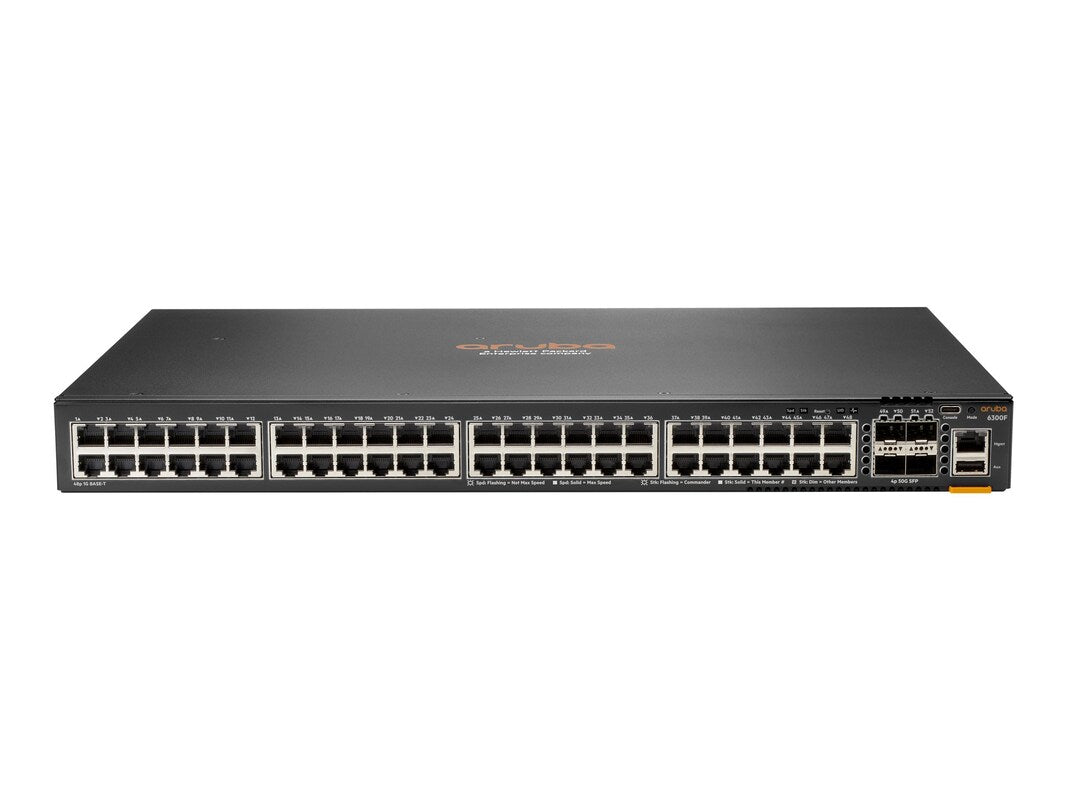

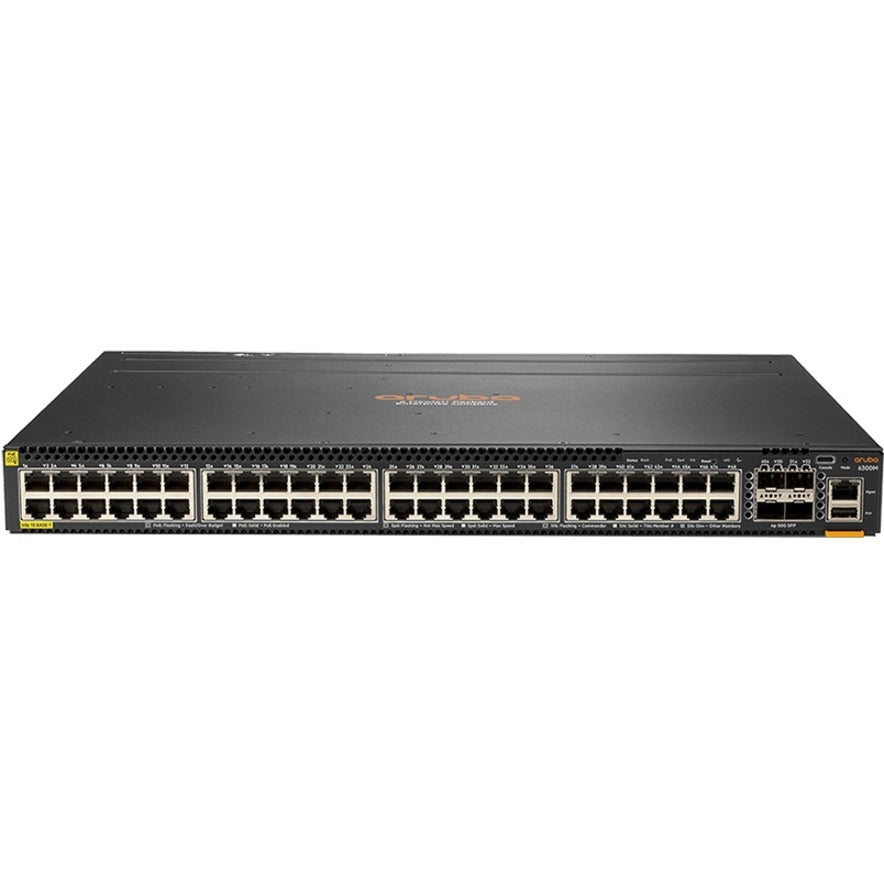

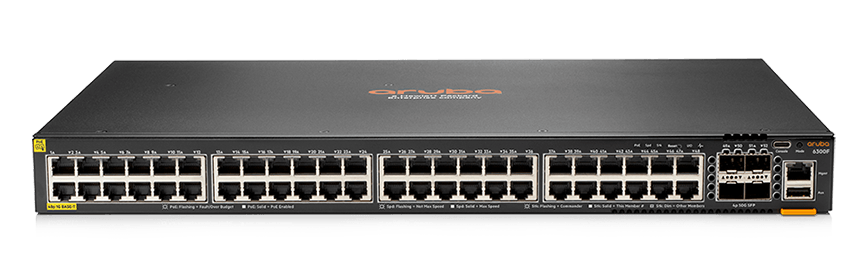

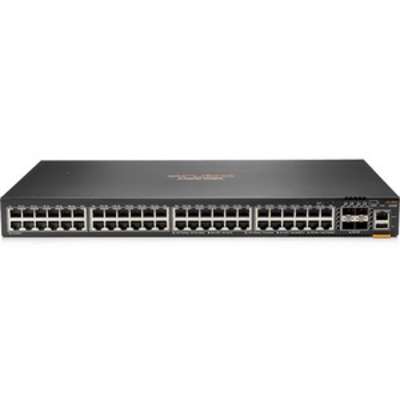

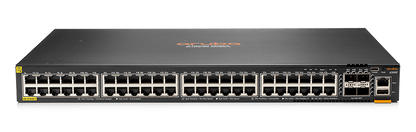

Photo is for illustration purposes only. Actual product may be different.
$11,120.00
$11,120.00
Sale Sold out
MSRP: $14,046.00
Shipping calculated at checkout.
  • - 48 10/100/1000BASE-T Ethernet ports and 4 SFP ports supporting 1/10/25/50G speeds
  • - Powered by a quad-core ARM Cortex A72 1.8GHz processor for enterprise-grade performance
  • - Includes 8 GB DDR4 RAM and 32 GB eMMC flash memory
  • - Advanced Layer 3 routing protocol support with SNMP-based remote management
  • - Dual power supply support with 74W max consumption for operational redundancy
  • - Operates within industrial temperature ranges (0°C to 45°C) and is TAA compliant

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports both high-density access and multi-gig uplinks to meet modern enterprise demands
  • Equipped with automation and analytics for enhanced network visibility and efficiency
  • TAA compliance ensures eligibility for U.S. government procurement programs

Product Overview

The HP Aruba 6300F 48G 4SFP56 (JL667A#ABA) is a Layer 3 enterprise-grade switch equipped with 48 10/100/1000BASE-T ports and four multi-speed SFP uplinks. Featuring a powerful quad-core ARM Cortex A72 1.8GHz processor, 8 GB of DDR4 RAM, and 32 GB flash memory, it delivers high-speed processing and agile performance. The switch supports advanced routing protocols and includes automation and analytics capabilities for improved operational efficiency. With dual power support, TAA compliance, and a space-saving 1U design, it's an ideal choice for organizations seeking scalable, feature-rich networking solutions.

Specifications

Product Overview
Product Type Layer 3 Enterprise Switch
Form Factor 1U
Processor Type Quad-core ARM Cortex A72
Processor Speed 1.8 GHz
RAM Installed 8 GB DDR4
Flash Memory 32 GB
Rack Units 1U
Weight 9.83 lbs.
Power Supply Type Redundant
Power Supply Included 2
Power Consumption (Operational) 74 Watts
Maximum Power Consumption 74 Watts
Power Voltage Required 100-120/200-240 VAC

Cloud Management & Licensing
Remote Management Protocol SNMP
Supported Management Interface Aruba Central, Web GUI, CLI
Automation & Analytics Supported via Aruba NetEdit and Aruba Central
Switch OS Aruba AOS-CX

Physical & Environmental
Width 17.4 Inch
Depth 12.9 Inch
Height 1.73 Inch
Min Operating Temperature 0 °C
Max Operating Temperature 45 °C
Min Storage Temperature -40 °C
Max Storage Temperature 70 °C

Interfaces
10/100/1000BASE-T Ports 48
SFP Ports 4
Port Speed (SFP56) 1/10/25/50 Gbps
Total Network Ports 52
Data Link Protocol Gigabit Ethernet
Data Transfer Rate 1 Gbps per BASE-T port
Total Interfaces (48) 10/100/1000BASE-T, (4) 1/10/25/50G SFP56

Advanced Security Features
Access Control Lists (ACLs) Yes
MACsec Encryption Supported on selected ports
DHCP Snooping Yes
IEEE 802.1X Authentication Yes
Dynamic ARP Protection Yes
IP Source Guard Yes
Control Plane Policing (CoPP) Yes

Compliance & Origin
TAA Compliant Yes
Country of Origin Singapore
Regulatory Compliance RoHS, REACH
Certifications UL, CE, FCC, IEC/EN 60950-1, VCCI Class A
