HP Aruba 6400 24P 10GT 4SFP56 v2 Network Module, R0X42C

VENDOR: HP Mfg Part#: R0X42C UPC#: 190017537504
1 4

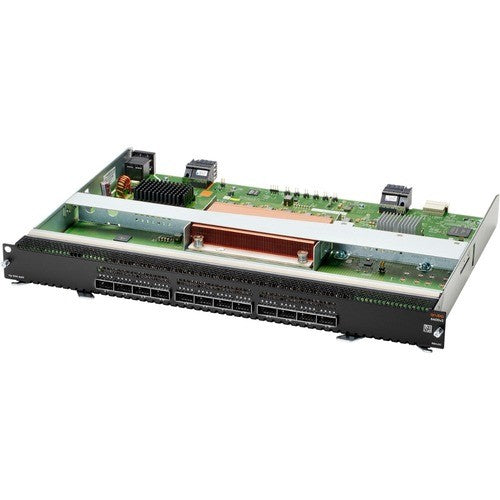

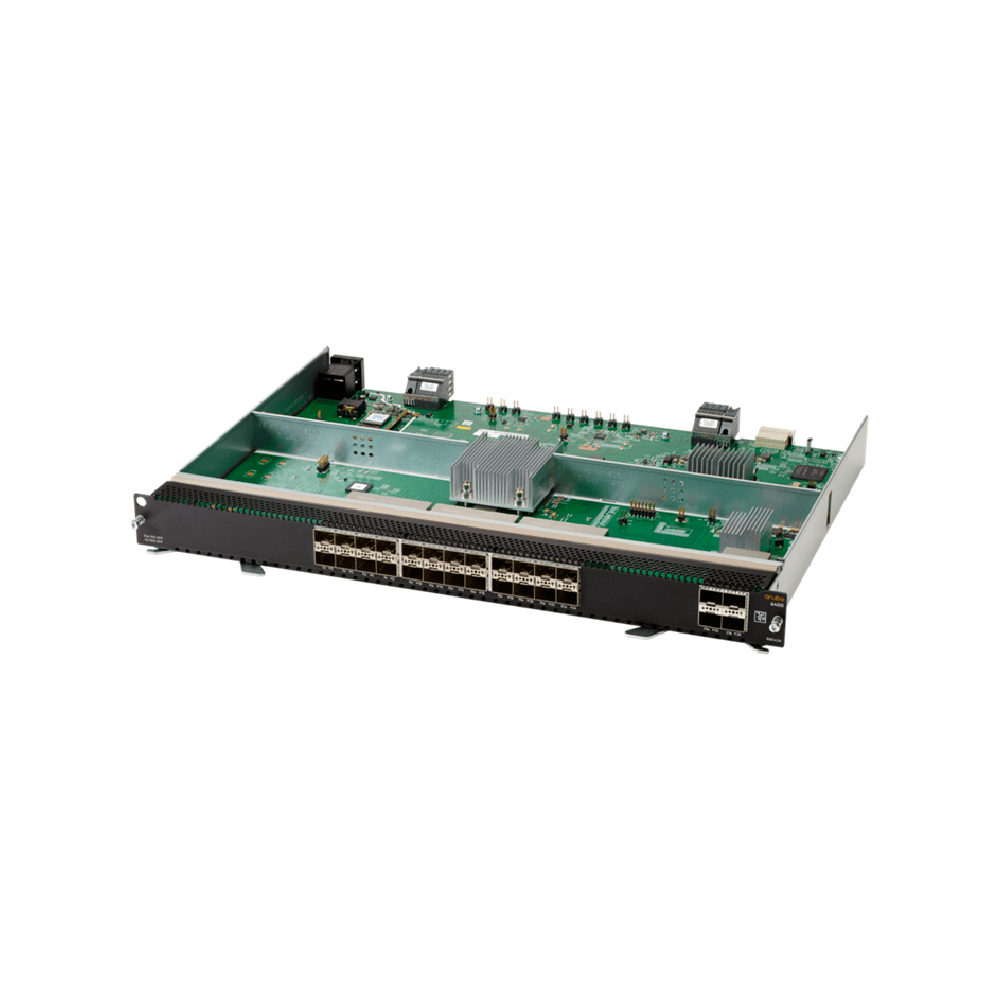

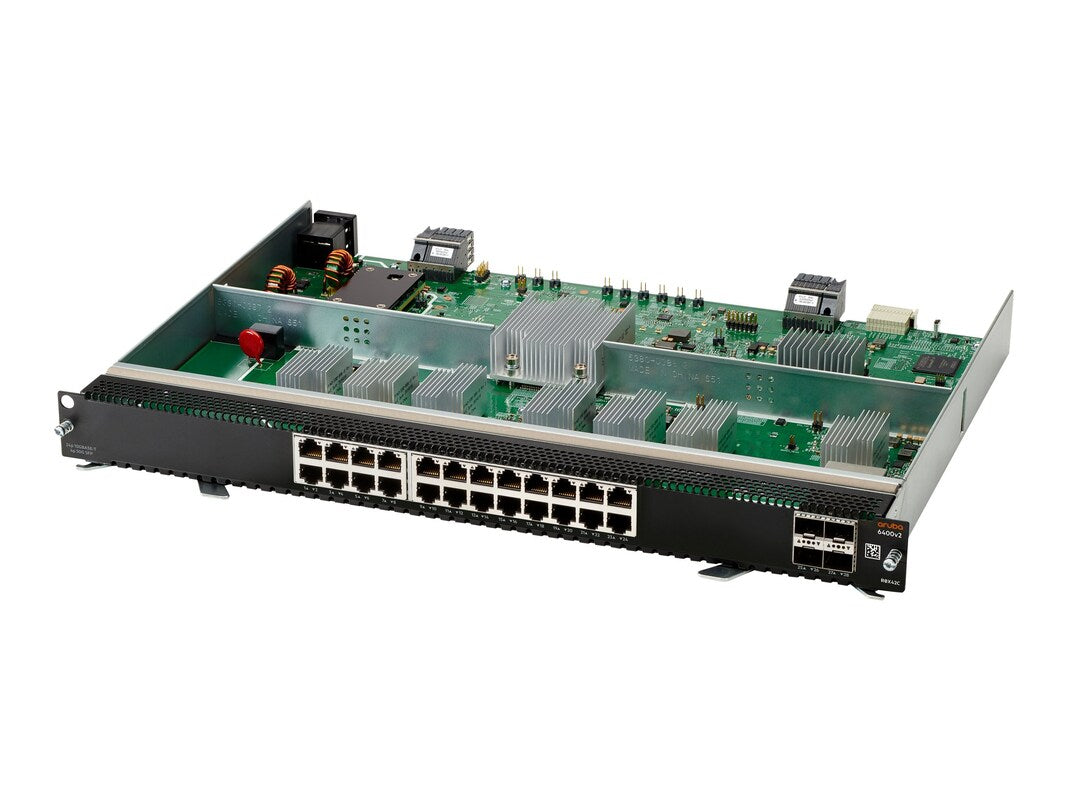

Photo is for illustration purposes only. Actual product may be different.
$18,424.00
$18,424.00
Sale Sold out
MSRP: $23,272.00
Shipping calculated at checkout.
  • 24-port 10GBase-T and 4-port SFP56 configuration
  • Plug-in module form factor for Aruba 6400 Series
  • 10 Gbps data transfer rate
  • Supports Gigabit Ethernet transport and data link protocols
  • TAA compliant for use in regulated industries
  • Limited lifetime warranty for long-term investment protection

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high port density with 28 high-speed connections, ideal for enterprise network scaling.
  • TAA compliance and Singapore-based manufacturing make it suitable for government installations.
  • Backed by a limited lifetime warranty, ensuring durable, long-term performance and reduced total cost of ownership.

Product Overview

The HP Aruba 6400 24P 10GT 4SFP56 v2 Module (R0X42C) is a modular, high-throughput network expansion solution designed for Aruba CX 6400 Series switches. It delivers 24 copper 10GBase-T ports and 4 SFP56 fiber ports, enabling advanced network scalability. With a 10 Gbps data transfer rate and Gigabit Ethernet protocol support, it ensures high-speed, reliable connectivity. The module is also TAA compliant and backed by a limited lifetime warranty, making it ideal for regulated or enterprise-grade deployments.

Specifications

Product Overview
Product Type Network Module
Form Factor Plug-In Module
Module Compatibility Aruba CX 6400 Series Switches
Family Networking
Subcategory Network Interface Cards
UPC 190017537504
Part Number R0X42C
Product Name HP Aruba 6400 24P 10GT 4SFP56 v2 Module
TAA Compliant Yes
Warranty Limited lifetime warranty
Hot Swappable Yes

Physical & Environmental
Width 12.4 in (314.96 mm)
Depth 17.3 in (439.42 mm)
Height 1.7 in (43.18 mm)
Weight 2.72 kg (6.0 lbs)
Operating Temperature Range 0°C to 45°C (32°F to 113°F)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% non-condensing
Storage Humidity 5% to 95% non-condensing
Airflow Direction Side-to-side
MTBF Over 200,000 hours

Cloud Management & Licensing
Management Platform Aruba Central (with appropriate license)
Local Management Options Aruba CX OS CLI, Web GUI
License Requirements Managed via switch chassis; no separate license for module
Supported Management Features Monitoring, configuration, zero-touch provisioning

Interfaces
Total Port Count 28
Copper Ports 24 x 10GBase-T
Fiber Ports 4 x SFP56
Data Transfer Rate 10 Gbps
Interface Type Gigabit Ethernet / 10 Gigabit Ethernet
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Port Configuration 24 RJ-45 + 4 SFP56
Port Speed Support 100M/1G/10G for copper, 10G/25G for SFP56

Compliance & Origin
Country of Origin Singapore
RoHS Compliant Yes
Certifications FCC, UL, CE, VCCI, BSMI

Advanced Security Features
MACsec (802.1AE) Support Yes (when supported by chassis/OS)
Secure Boot Yes (inherits from switch)
Traffic Segmentation Supported (via CX switch software)
IPv6 Security Features Yes (with chassis and OS support)
