Products Network Stuff HP ARUBA 6405 v2 Switch, 10...

HP ARUBA 6405 v2 Switch, 100Gbps, Modular, Layer 3, R0X26C

VENDOR: HP Mfg Part#: R0X26C UPC#: 190017537382
1 5
Photo is for illustration purposes only. Actual product may be different.
$19,131.00
$19,131.00
Sale Sold out
MSRP: $24,165.00
Shipping calculated at checkout.
  • Quad-core ARM Cortex A72 1.8GHz processor with 16GB ECC DDR4 memory
  • Modular switch with 10 I/O module slots for flexible deployment
  • Supports advanced L3 routing including BGP, EVPN, OSPF, and VRF
  • Delivers up to 100 Gbps data transfer rate and 28 Tbps non-blocking bandwidth
  • PoE compatible with IEEE 802.3af, 802.3at, and 802.3bt standards (depending on model)
  • Management via SNMP and compliant with TAA regulations

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for enterprise-grade deployments requiring high-speed modular switching capabilities
  • Advanced Layer 3 routing protocol support ensures network scalability and segmentation
  • Future-proof expansion options with PoE and 10 flexible I/O module slots

Product Overview

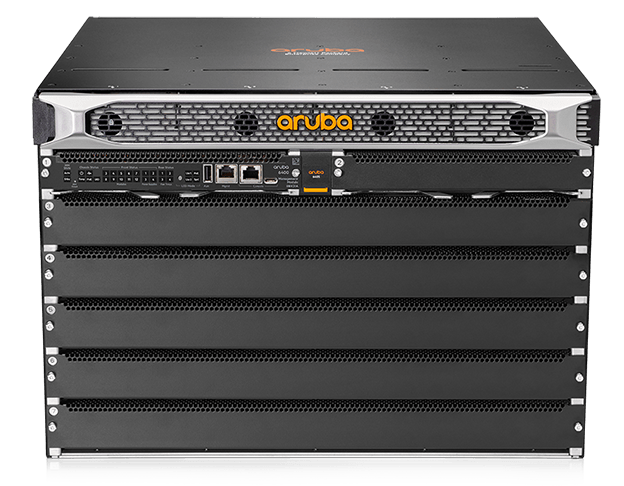

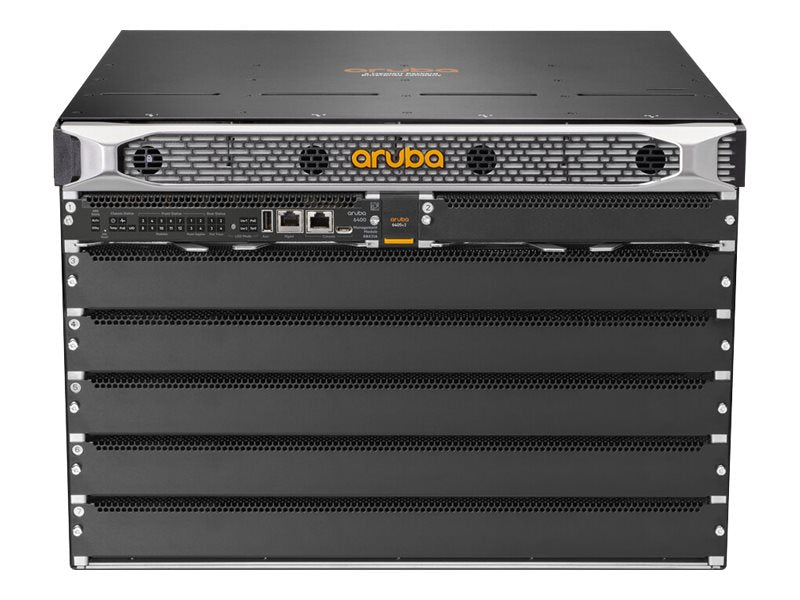

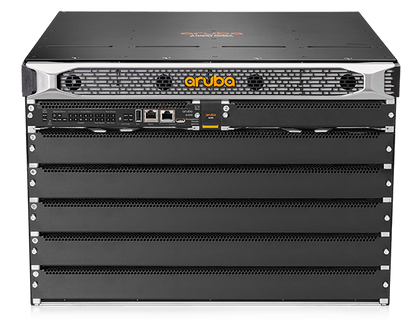

The HP Aruba 6405 v2 Switch (model R0X26C) is a high-performance modular Layer 3 switch engineered for enterprise networks. It features a quad-core ARM Cortex A72 processor with 16GB DDR4 ECC memory and 32GB flash storage. Supporting comprehensive routing protocols like BGP, VXLAN, EVPN, VRF, and OSPF, it delivers up to 28 Tbps of non-blocking bandwidth. The system can be configured with 10 I/O module slots, and is equipped with standards-compliant PoE support (IEEE 802.3af/at/bt depending on model). Built for demanding network topologies, it provides flexibility, scalability, and robust security features. It operates from 0°C to 45°C and is compliant with TAA for government-related deployments. Power supplies sold separately.

Specifications

Product Overview
Product Type Modular Layer 3 Switch
Model HPE Aruba Networking CX 6405 v2 Switch
Processor Type Quad-core ARM Cortex A72
RAM (Installed) 16 GB DDR4 ECC
Flash Storage 32 GB
Throughput Up to 28 Tbps switching capacity
Form Factor Modular rack-mountable chassis
Weight 118.2 lbs.
Power Supply Power supplies sold separately
Power Voltage Required 110–127 / 200–240 VAC
PoE Support IEEE 802.3af, 802.3at, 802.3bt (model-dependent)

Cloud Management & Licensing
Remote Management Protocol SNMP
Cloud Management Aruba Central (license required)
Software Licensing Options Foundation and Advanced licenses available through Aruba

Wireless Features
Wireless Support Not applicable (wired switch)

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications FCC Class A, ICES Class A, VCCI, BSMI, RCM, CCC, UL, CE Mark
RoHS Compliance Yes

Interfaces
Modular Slots 10 I/O module slots
Data Link Protocol Gigabit Ethernet
Maximum Data Rate 100 Gbps per port (module-dependent)
Network Technology Layer 3 Switching
Routing Protocols BGP, OSPF, VRF, VXLAN, EVPN

Advanced Security Features
Advanced Routing Security VRF-aware, role-based access control (RBAC)
ACL Support Yes, IPv4 and IPv6 ACLs
Dynamic Segmentation Supported via Aruba ClearPass
Secure Management Access HTTPS, SSH, SNMPv3

Physical & Environmental
Width 20.8 inches
Depth 17.5 inches
Height 17.7 inches
Minimum Operating Temperature 0°C
Maximum Operating Temperature 45°C
Minimum Storage Temperature -40°C
Maximum Storage Temperature 70°C
Humidity (Operating Range) 5% to 95% non-condensing
