HP Aruba 8325-32C Switch, 32x100G QSFP28, Dual PSU, JL626A#ABA

VENDOR: HP Mfg Part#: JL626A#ABA UPC#: 190017328263
1 5

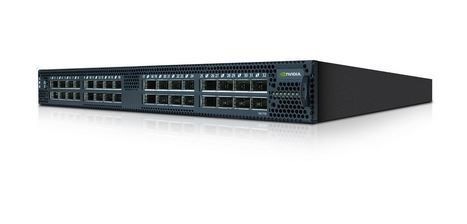

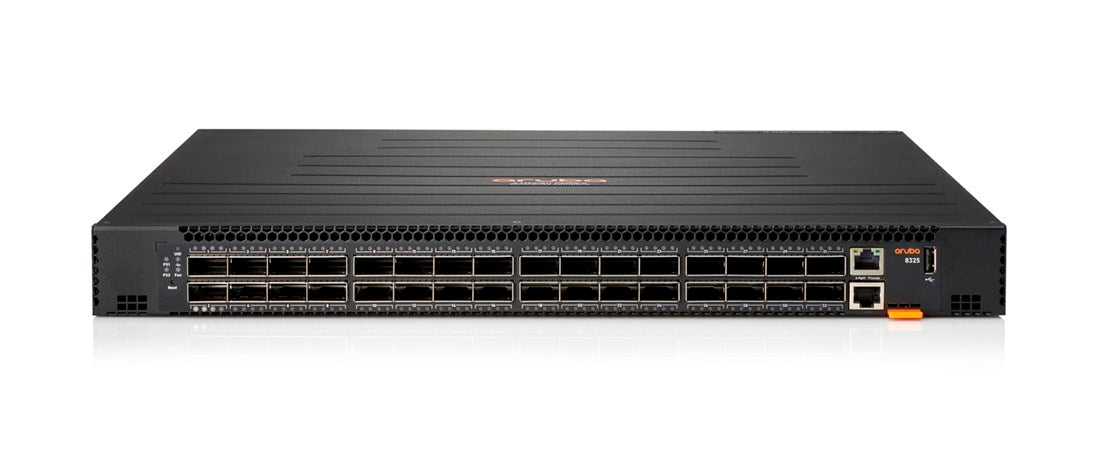

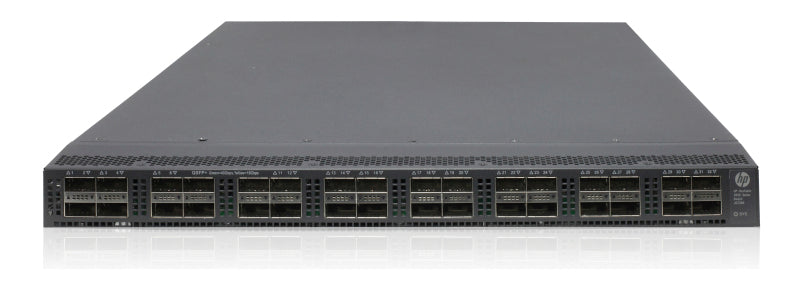

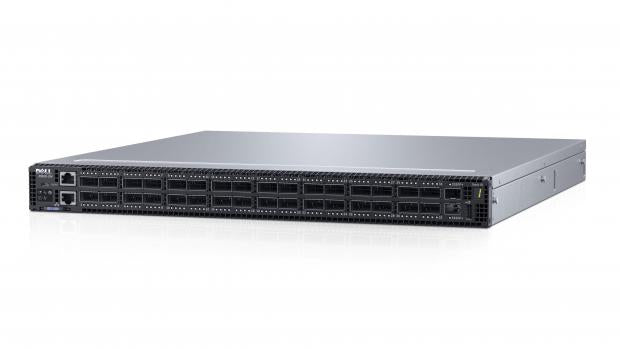

Photo is for illustration purposes only. Actual product may be different.
$53,980.00
$53,980.00
Sale Sold out
MSRP: $68,183.00
Shipping calculated at checkout.
  • 32 x 100G QSFP28 ports for high-throughput connectivity
  • 16 GB RAM, 64 GB SSD, and 8 GB Flash storage
  • Advanced Layer 3 routing and SNMP remote management
  • Redundant power supplies and VSX support for high availability
  • Supports jumbo frames and includes a 32MB packet buffer
  • Operational power draw of up to 550W on 100-240VAC input

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for high-density, high-speed environments with 100G connectivity across 32 QSFP28 ports.
  • Delivers enterprise resilience and uptime via redundant power supplies, fans, and Aruba VSX architecture.
  • Backed by a 5-year warranty and TAA compliance, ensuring long-term reliability and regulatory adherence.

Product Overview

The HP Aruba 8325-32C FB 6 F 2 PS Bdl is an enterprise-class modular switch engineered for next-gen data center, core, and aggregation layers. It operates within the Aruba CX 8325 Switch Series and features 32 QSFP28 ports, each supporting 100 Gigabit Ethernet, enabling high-throughput performance demanded by bandwidth-hungry applications. Designed for resilience, the switch includes redundant power supplies and fans, and incorporates Aruba’s VSX high-availability architecture. SNMP-based remote management and Layer 3 advanced routing protocols provide robust network control and scalability.

Powered by a 2.2GHz CPU and backed by 16GB RAM, 64GB SSD, and 8GB of flash memory, this switch ensures both rapid packet processing and reliable storage for system tasks. With jumbo frame support and a 32MB packet buffer, it efficiently handles large data volumes with reduced latency. Its compact 1.7-inch height and rack-friendly 17.26-inch depth allow seamless deployment. Operational tolerance from 0 to 40°C and TAA compliance further position it as a versatile, standards-aligned networking solution. A five-year warranty underscores its long-term value in enterprise-grade networks.

Specifications

Product Overview
Product Type Modular Layer 3 Switch
Series Aruba CX 8325 Switch Series
Model Aruba 8325-32C
Processor 2.2 GHz CPU
Installed RAM 16 GB
Flash Memory 8 GB
Solid State Drive 64 GB SSD
Packet Buffer Size 32 MB
Jumbo Frame Support Yes
MAC Address Table Size 98,304 entries
High Availability Architecture VSX Redundancy
Redundant Power Supplies Yes
Redundant Fans Yes
Warranty 5-Year Warranty

Cloud Management & Licensing
Remote Management SNMP
Cloud-Based Monitoring Supported via Aruba Central (license required)
Included Licensing None (requires separate license)

Physical & Environmental
Height 1.7 in (1U Rack Height)
Width 17.25 in
Depth 20.28 in
Weight 20.9 lbs
Operating Temperature Range 0°C to 40°C
Storage Temperature Range -40°C to 70°C
Operating Humidity 5% to 95% (non-condensing)

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Certifications UL, CSA, CE, FCC Class A

Interfaces
Number of Ports 32
Port Type 100G QSFP28
Data Transfer Rates 100 Gbps
Data Link Protocol 100 Gigabit Ethernet
Interface Standards QSFP+, QSFP28

Advanced Security Features
Access Control Role-based Access Control (RBAC)
MACsec Encryption Yes
Dynamic Segmentation Yes
Control Plane Policing (CoPP) Yes

Power Requirements
Power Supply Type Hot-swappable Redundant Power Supplies (included)
Power Consumption (Typical) 550 W
Power Input 100–240 VAC
