HP Aruba 8325-48Y8C 48x25G + 8x100G Layer 3 Managed Switch

VENDOR: HP Mfg Part#: JL635A
1 5

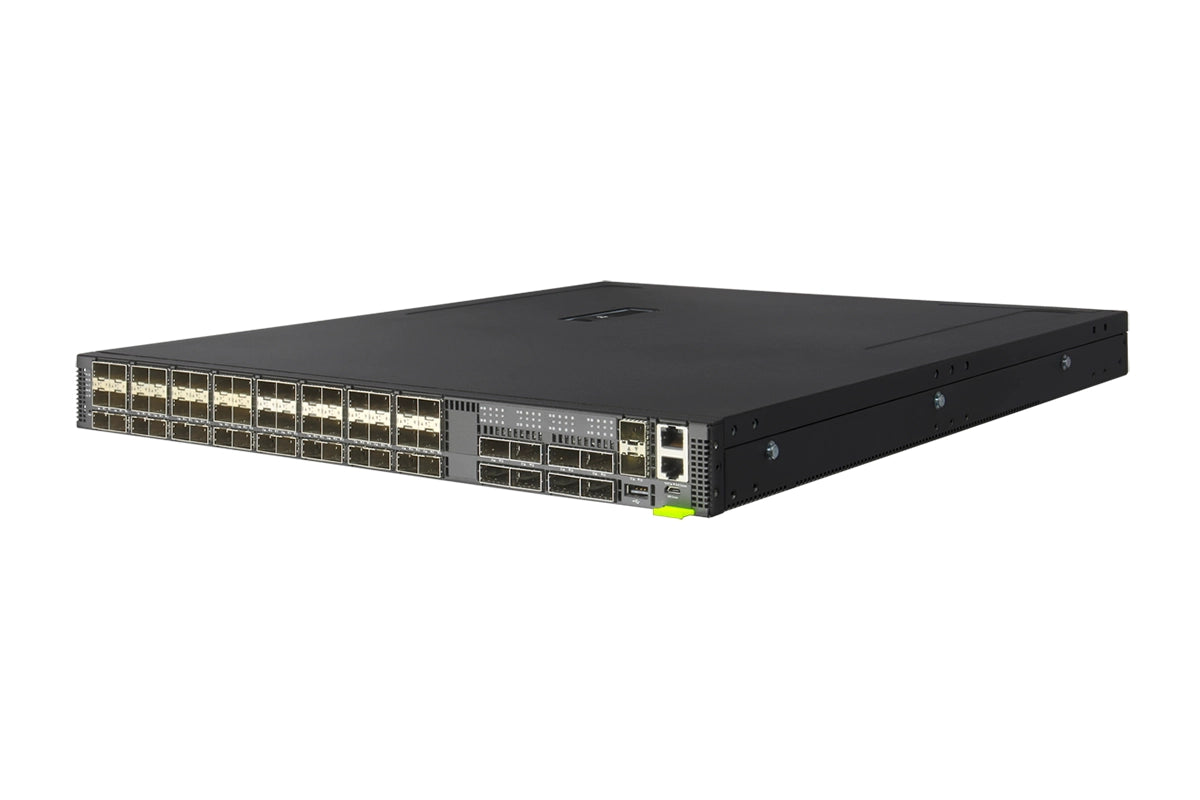

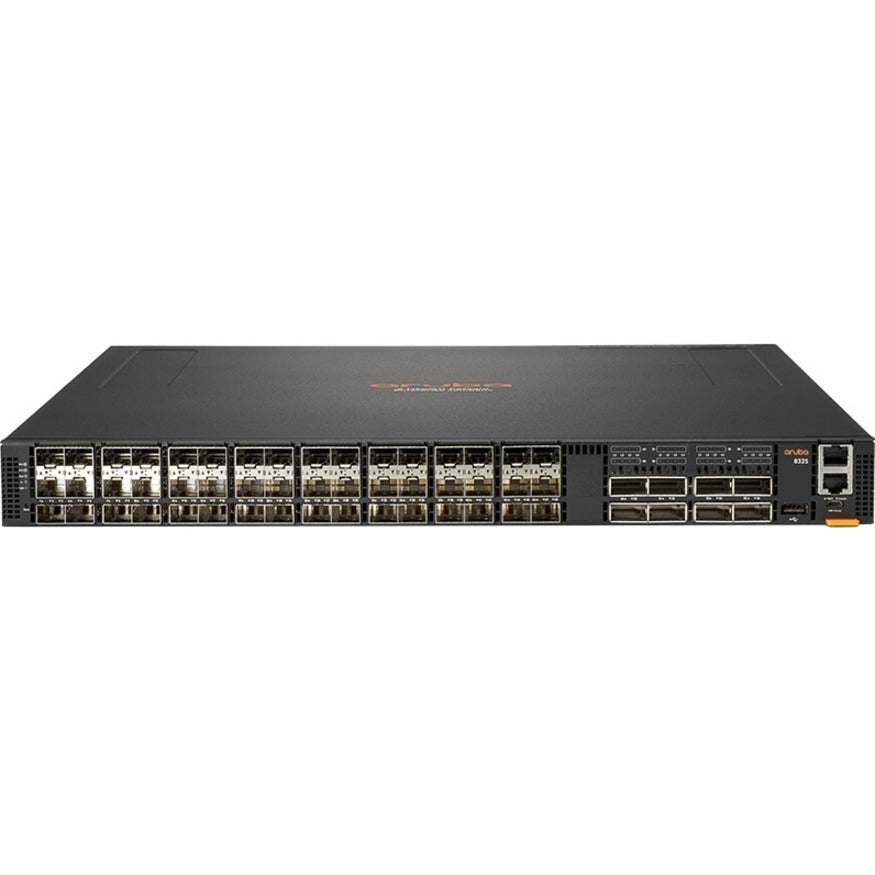

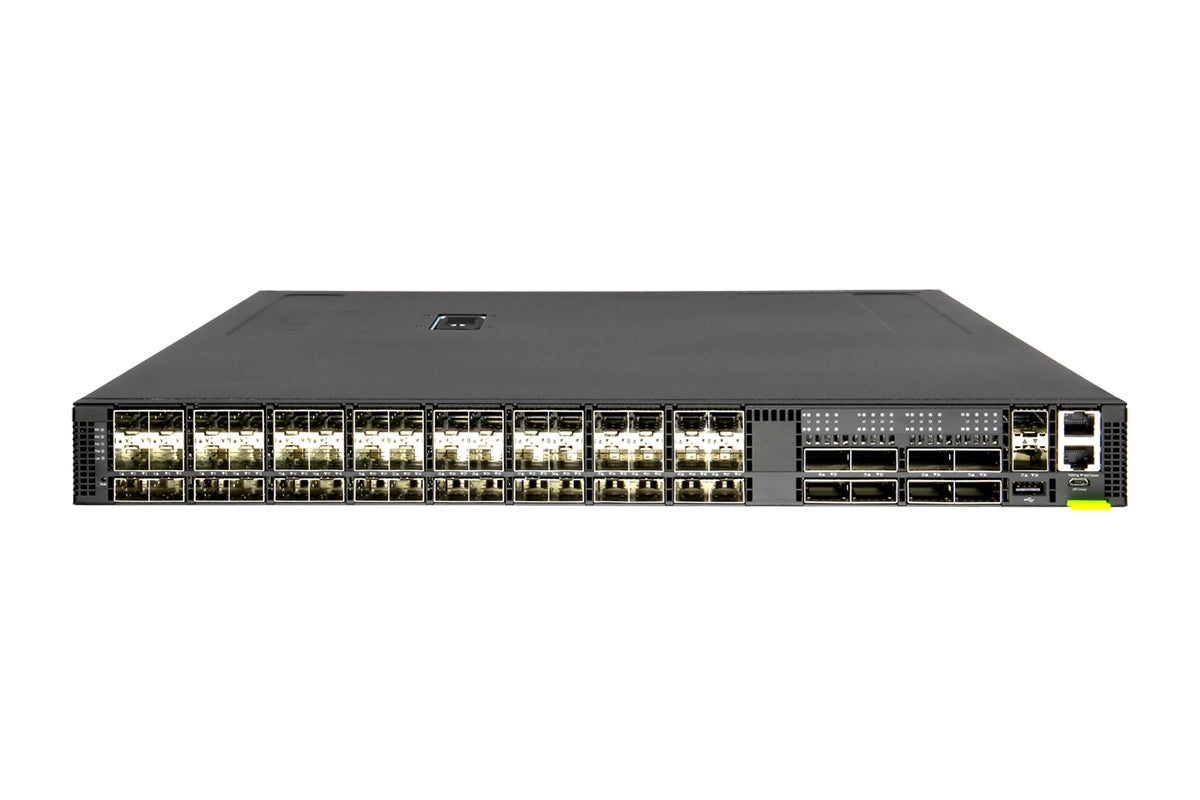

Photo is for illustration purposes only. Actual product may be different.
$50,006.00
$50,006.00
Sale Sold out
MSRP: $63,163.00
Shipping calculated at checkout.
  • - 48 SFP28 25G and 8 QSFP28 100G interfaces for high-speed connectivity
  • - 6.4 Tbps switching capacity supports data-intensive applications
  • - Advanced Layer 3 routing with SNMP v2c/v3, sFlow, and RMON monitoring
  • - Equipped with 2.2GHz CPU, 16GB RAM, 64GB SSD, and 8GB flash
  • - Operates at up to 550W with 100-240VAC input for energy efficiency
  • - TAA compliant and optimized for campus core and data center deployments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Delivers exceptional throughput and flexibility with 48x25G and 8x100G ports, ideal for core and data center applications
  • - Designed with robust processing components and management protocols for scalable, intelligent networking
  • - Meets TAA compliance and integrates efficiently into enterprise environments with compact design and power efficiency

Product Overview

The HP Aruba 8325-48Y8C is part of the Aruba CX 8325 Series, built for enterprise-grade networking performance. It features 48 SFP28 25G ports and 8 QSFP28 100G uplinks, delivering high-speed traffic aggregation and 6.4 Tbps switching capacity. Engineered with a 2.2GHz CPU, 16GB RAM, and 8GB flash, this switch supports advanced Layer 3 routing and comprehensive management via SNMP, sFlow, and RMON. Operating within a 550W power envelope, it's optimized for rack deployments and meets TAA compliance standards—ideal for core campus and data center top-of-rack use cases.

Specifications

Product Overview
Product Type Managed Layer 3 Switch
Model Name Aruba 8325-48Y8C
Series Aruba CX 8325 Series
Form Factor Rack-mountable 1U
Switching Capacity 6.4 Tbps
Forwarding Rate 3,571 Mpps
Processor 2.2 GHz Quad-core x86 CPU
System Memory (RAM) 16 GB
Flash Memory 8 GB
Weight 16.7 lbs.
Power Consumption (Maximum) 550 Watts
Power Input 100-240 VAC, 50/60 Hz
Redundant Power Support Yes, hot swappable power supplies
Hot-Swappable Fans Yes

Cloud Management & Licensing
Cloud Management Platform Aruba Central (optional)
Management Interface Web GUI, CLI, SNMP v2c/v3, REST API, NetEdit
Licensing Requirement No mandatory license; optional cloud features may require licenses
Automation Framework Aruba Network Analytics Engine (NAE)

Physical & Environmental
Dimensions (H x W x D) 1.65 x 17.2 x 22.04 in
Rack Units 1U
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% non-condensing
Acoustic Noise 62.9 dB (maximum)
Cooling Front-to-back airflow with hot-swappable fans

Interfaces
Total Ethernet Ports 56
25G SFP28 Ports 48
100G QSFP28 Ports 8
Port Types (48) 25G SFP28 and (8) 100G QSFP28
Ethernet Standards IEEE 802.3, 802.3u, 802.3z, 802.3ab, 802.3ae
Data Link Protocols Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 100 Gigabit Ethernet
Jumbo Frame Support Yes

Advanced Security Features
Access Control 802.1X, MAC authentication, Web authentication
Policy-Based Routing Supported
Dynamic Segmentation Yes (via Aruba ClearPass)
Control Plane Policing Yes
Secure Management HTTPS, SSH, SNMPv3

Compliance & Origin
TAA Compliant Yes
Country of Origin Taiwan
Certifications UL, CB, FCC Class A, CE, VCCI, BSMI, RCM, RoHS
Environmental Compliance RoHS, WEEE, REACH
Warranty Limited Lifetime Warranty (see Aruba support site for details)
