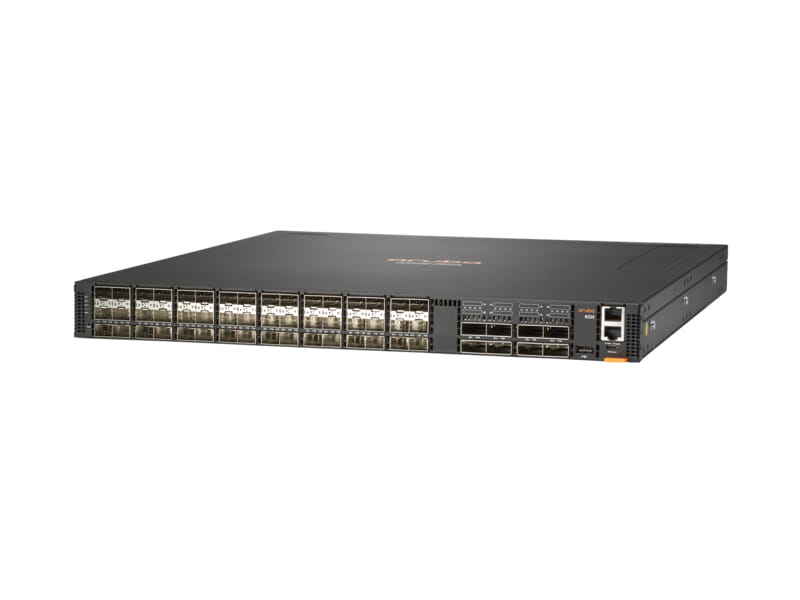

HP Aruba 8360-12C 40Gbps 12-Port Network Switch JL709A#ACE

VENDOR: HP Mfg Part#: JL709A#ACE UPC#: 190017405872
1 3
Photo is for illustration purposes only. Actual product may be different.
$40,070.00
$40,070.00
Sale Sold out
MSRP: $50,612.00
Shipping calculated at checkout.
  • 12 x 40 Gigabit Ethernet ports for high-speed connectivity
  • 40Gbps throughput for data-intensive applications
  • 16GB onboard memory, expandable to 32GB
  • TAA-compliant for government and regulated industries
  • Manufactured in Singapore, ensuring quality standards

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Deliver high-bandwidth performance with 12 ports of 40GbE, suitable for enterprise-grade networking demands.
  • TAA-compliance ensures compatibility with government contracts and regulated sectors.
  • Expandable memory architecture allows for scalability and future-proofing of deployments.

Product Overview

The HP Aruba 8360-12C, part number JL709A#ACE, is a high-performance network switch featuring 12 x 40 Gigabit Ethernet ports and a 40Gbps throughput for core and aggregation networking. Designed with 16GB memory (expandable to 32GB), it supports robust data buffering and network efficiency. The unit is TAA-compliant, making it suitable for government and public sector projects, and is manufactured in Singapore to HP’s rigorous standards. Ideal for enterprise-edge, campus, or hybrid cloud setups, it offers reliable and scalable performance.

Specifications

Product Overview
Product Type Managed Network Switch
Model Aruba 8360-12C
Manufacturer Part Number JL709A#ACE
Form Factor 1U Rack-mountable
Memory 16 GB (expandable to 32 GB)
Packet Buffer Memory 64 MB
Switching Capacity 960 Gbps
Throughput 714 Mpps
Weight 9.92 lbs (4.5 kg)
Power Supply Type Hot-swappable power supplies
Power Consumption (Maximum) 180 W
Redundant Power Supply Supported (2 PSU bays)

Physical & Environmental
Dimensions (W x D x H) 17.4 in x 19.6 in x 1.7 in (44.2 cm x 49.8 cm x 4.4 cm)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% non-condensing
Acoustic Noise (Typical) 63 dB
Cooling Front-to-back airflow, field-replaceable fans

Cloud Management & Licensing
Cloud Management Platform Aruba Central (optional)
Management Interface Web GUI, CLI, REST API, Aruba NetEdit
Licensing Requirements Advanced features may require Aruba software licensing
Included Licenses Base OS license included

Interfaces
Total Number of Ports 12
Ethernet Port Type QSFP+
Port Speed 40 Gbps
Port Configuration 12 x QSFP+ 40 GbE
Out-of-band Management Port 1 x RJ-45 10/100/1000 Mbps
Console Ports 1 x RJ-45, 1 x Micro-USB
USB Ports 1 x USB Type-A
Expansion Module Slots 1 (for fan tray and power modules expansion)

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, ICES, VCCI, EN 55032, FCC Class A
RoHS Compliant Yes
REACH Compliant Yes

Advanced Security Features
Access Control Lists (ACLs) IPv4 and IPv6 ACLs
802.1X Authentication Supported
DHCP Snooping Supported
MACsec Encryption Supported on select ports
Dynamic Segmentation Supported
