Products Network Stuff HP Aruba 8360-12C V2 Switch...

HP Aruba 8360-12C V2 Switch, 12-Port 100GbE, JL721C

VENDOR: HP Mfg Part#: JL721C UPC#: 190017589947
1 3

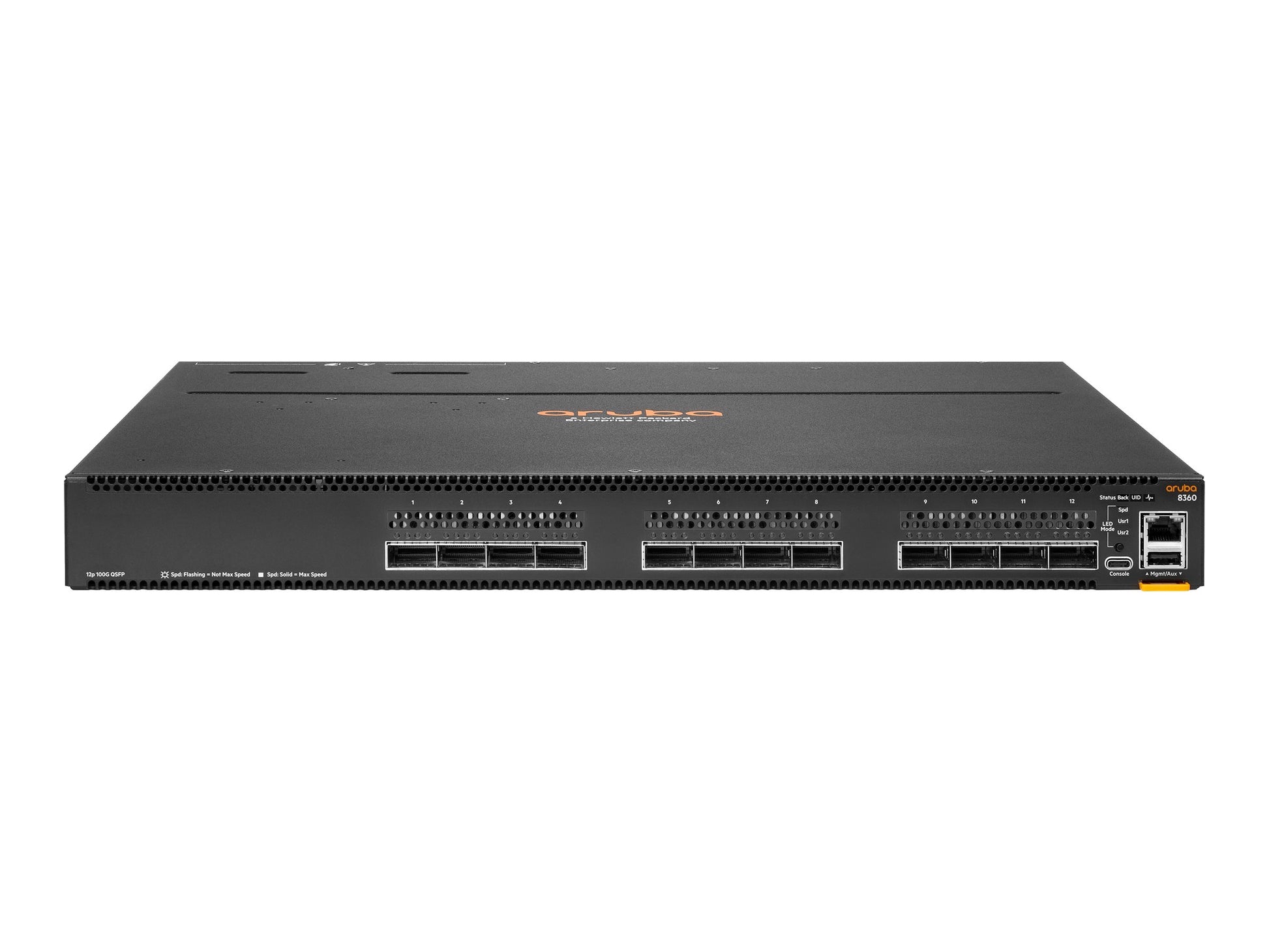

Photo is for illustration purposes only. Actual product may be different.
$33,321.00
$33,321.00
Sale Sold out
MSRP: $42,088.00
Shipping calculated at checkout.
  • 12 QSFP+/QSFP28 ports supporting 100GbE/40GbE connectivity
  • 1.8 GHz 4-core 64-bit CPU with 16 GB RAM and 32 GB flash storage
  • 32 MB packet buffer for high-performance traffic handling
  • Advanced Layer 3 routing protocol support
  • Manageable via RJ-45 serial, USB-C console, and USB Type-A
  • TAA compliant and backed by a limited lifetime warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for high-bandwidth core networks with support for 100GbE/40GbE across 12 QSFP+ ports
  • Flexible deployment thanks to support for optional breakout cables and transceivers
  • Limited lifetime warranty enhances long-term value and investment confidence

Product Overview

The HP Aruba 8360-12C v2 Switch (JL721C) delivers enterprise-grade performance with 12 high-speed ports supporting 40GbE/100GbE using QSFP+/QSFP28 interfaces. It is powered by a 1.8 GHz 4-core CPU, equipped with 16 GB RAM and 32 GB of flash storage, and optimized by a 32MB packet buffer for high-throughput stability. Advanced Layer 3 routing capabilities and support for optional breakout cabling make it adaptable to evolving network designs. The device maintains operational efficiency at just 110 watts, and a limited lifetime warranty ensures long-term investment protection. Its compact rack-mount form factor and TAA compliance further position it as an ideal switch for both commercial and government network infrastructure.

Specifications

Product Overview
Manufacturer HP
Product Name HP Aruba 8360-12C V2 Switch
Model Aruba CX 8360 v2 Switch Series
Manufacturer Part Number JL721C
Type Managed Ethernet Switch
Form Factor Rack-mountable
Rack Units 1U
Weight 23.65 lbs.
Power Consumption (Typical) 110 Watt
Max Power Consumption 110 Watt
CPU 1.8 GHz Quad-Core
System Memory (RAM) 16 GB
Flash Memory 32 GB
Packet Buffer Size 32 MB

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, IEC/EN/CSA 60950, FCC Class A, EN 55032 Class A, RoHS
Warranty Limited Lifetime Warranty

Advanced Security Features
MACsec Encryption Supported on select ports
Access Control Lists (ACLs) IPv4 and IPv6 ACLs supported
DHCP Snooping Yes
ARP Protection Yes
Dynamic ARP Inspection (DAI) Yes
IP Source Guard Yes
Port Security Yes
Secure Management Access SSH, HTTPS, SNMPv3

Interfaces
Total Ethernet Ports 12
Port Type QSFP+/QSFP28
Port Speed 40/100 Gigabit Ethernet
Breakout Cable Support 4x10G/25G breakout supported
Console Ports 1 x RJ-45 serial, 1 x USB-C
Out-of-Band Management Port 1 x RJ-45 Ethernet
USB Port 1 x USB Type-A
Data Link Protocol 100 Gigabit Ethernet
Routing Protocol Layer 3 Advanced

Physical & Environmental
Width 1.73 in (4.4 cm)
Depth 17.4 in (44.2 cm)
Height 22.0 in (55.9 cm)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% non-condensing
Acoustic Noise 65 dB max (at 25°C ambient)
Cooling Front-to-back airflow

Cloud Management & Licensing
Management Interface Aruba Network Analytics Engine, Command Line Interface (CLI), Web UI, REST APIs
Included Cloud Features Aruba Central compatible (license required)
Licensing Model Subscription-based for advanced features
