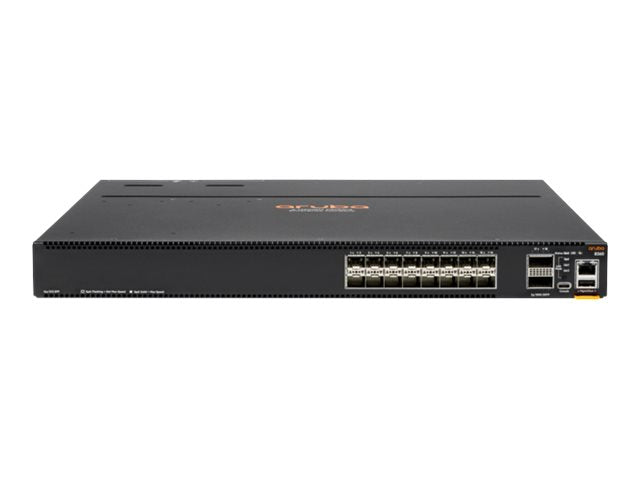

HP Aruba 8360-16Y2C 2Pwr3F2PS Switch Bundle JL702A#AKJ

VENDOR: HP Mfg Part#: JL702A#AKJ UPC#: 190017404301
1 3
Photo is for illustration purposes only. Actual product may be different.
$36,671.00
$36,671.00
Sale Sold out
MSRP: $46,319.00
Shipping calculated at checkout.
  • TAA-compliant enterprise switch suitable for government use
  • Manufactured in Singapore to support quality and compliance standards
  • Part of the HP Aruba 8360 series for data center and enterprise core switching
  • Integrates power supply and fan tray redundancy for high availability
  • Advanced networking capabilities assumed under Aruba family (details not provided)

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for government and federal contracts due to TAA compliance
  • Engineered for high availability with redundant power and cooling components
  • Built on Aruba’s proven switching platform ensuring enterprise-grade reliability

Product Overview

The HP Aruba 8360-16Y2C Prt2Pwr3F2PS Bundle (JL702A#AKJ) is an advanced Layer 3 switch ideal for high-throughput environments like data centers and enterprise cores. With 16-port 25GbE/10GbE and 2-port 100GbE uplinks, it offers robust bandwidth and performance. Redundant power supplies and triple fan trays ensure uptime and resilience. Manufactured in Singapore and TAA compliant, this switch is well-suited for government procurement and mission-critical deployments. Built under the trusted HP Aruba Networking line, it provides scalability and reliable operation in cloud-centric enterprises.

Specifications

Product Overview
Product Type Layer 3 Managed Switch
Model Name Aruba 8360-16Y2C 2Pwr3F2PS Bundle
Manufacturer Part Number JL702A#AKJ
Form Factor 1U Rack-mountable
Weight 8.51 kg (18.76 lbs)
Power Supply Type Field-replaceable redundant power supplies
Number of Power Supplies Included 2
Number of Fan Trays Included 3
Max Power Consumption 153 Watts

Wireless Features
Wireless Capabilities

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, cUL, CB, BSMI, CCC, CE, FCC, VCCI, RCM
RoHS Compliance Yes
WEEE Compliance Yes
EMC Standards FCC Part 15 Class A, EN 55032 Class A

Advanced Security Features
Access Control Lists (ACLs) Yes
802.1X Authentication Yes
MACsec Encryption Supported on select ports
Role-Based Access Control Yes
Dynamic Segmentation Yes
DHCP Snooping Yes
ARP Protection Yes
IP Source Guard Yes

Interfaces
Total Number of Ports 18
25GbE/10GbE SFP28 Ports 16
100GbE QSFP28 Uplink Ports 2
Ethernet Technology 10 Gigabit / 25 Gigabit / 100 Gigabit Ethernet
Expansion Slots 18 SFP/QSFP
Data Transfer Rate Up to 100 Gbps per QSFP28 port
MAC Address Table Size 96,000 entries
Switch Fabric Capacity 2.4 Tbps
Forwarding Rate 1,190 Mpps
Packet Buffer Memory 64 MB

Physical & Environmental
Dimensions (W x D x H) 43.46 x 45.72 x 4.39 cm (17.11 x 18.0 x 1.73 in)
Operating Temperature Range 0°C to 45°C (32°F to 113°F)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
Operating Humidity Range 5% to 95% non-condensing
Acoustic Noise 55.4 dB
Cooling Front-to-rear airflow with redundant fan trays
MTBF 344,173 hours

Cloud Management & Licensing
Network Management Aruba NetEdit, Aruba Fabric Composer, CLI, REST API, Web GUI
Supported OS ArubaOS-CX
Cloud-Based Management Yes (Aruba Central optional)
Licensing Model Subscription-based (for advanced features via Aruba Central)
Included Licensing Base feature set included; advanced features license-based
