HP Aruba 8360-16Y2C Prt2Pwr3F2PS Bdl AR Switch

VENDOR: HP Mfg Part#: JL702A#ARM UPC#: 190017404356
1 3

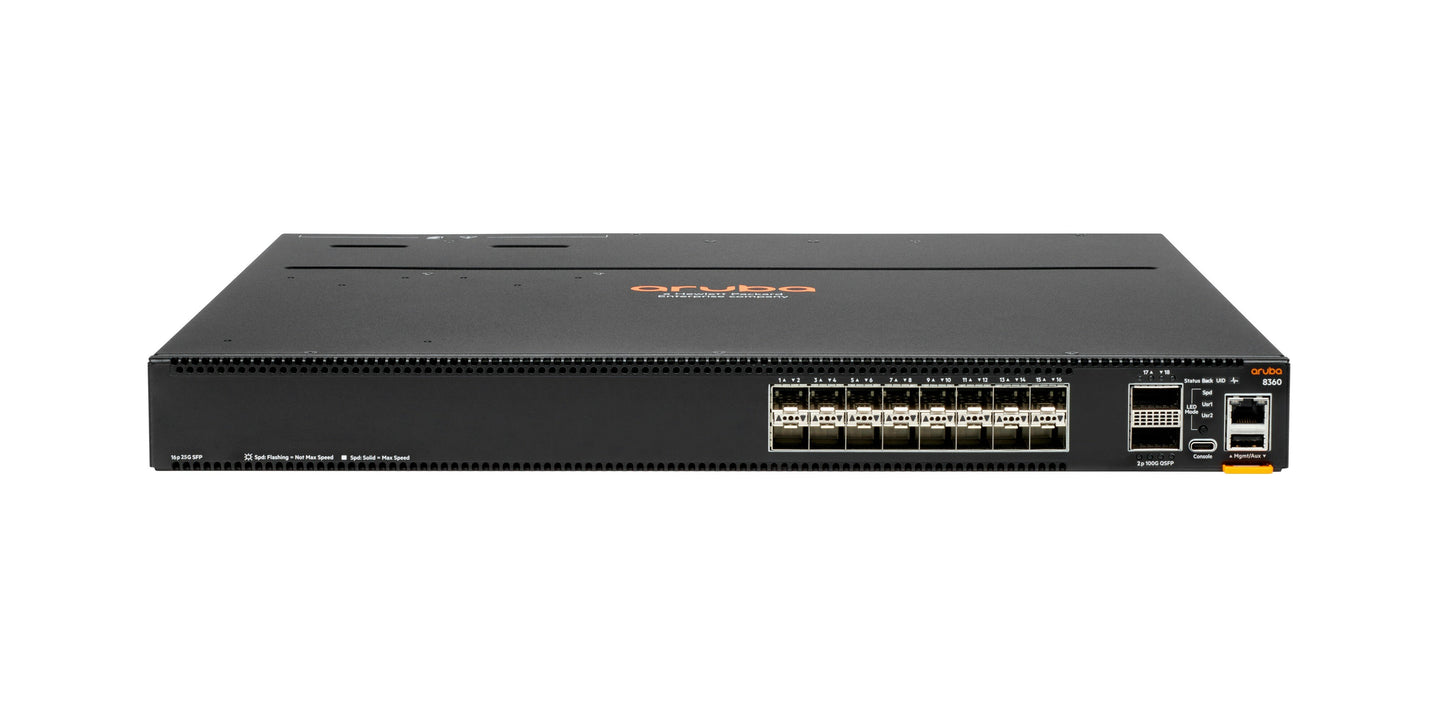

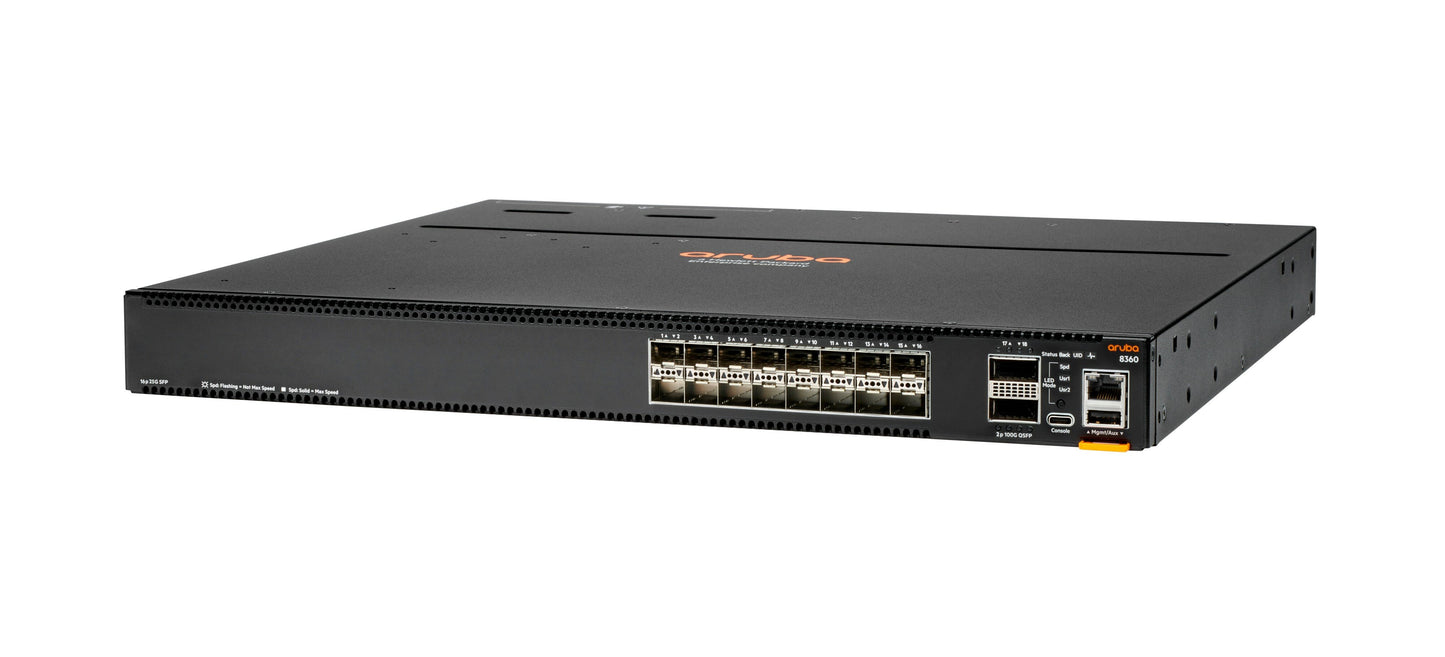

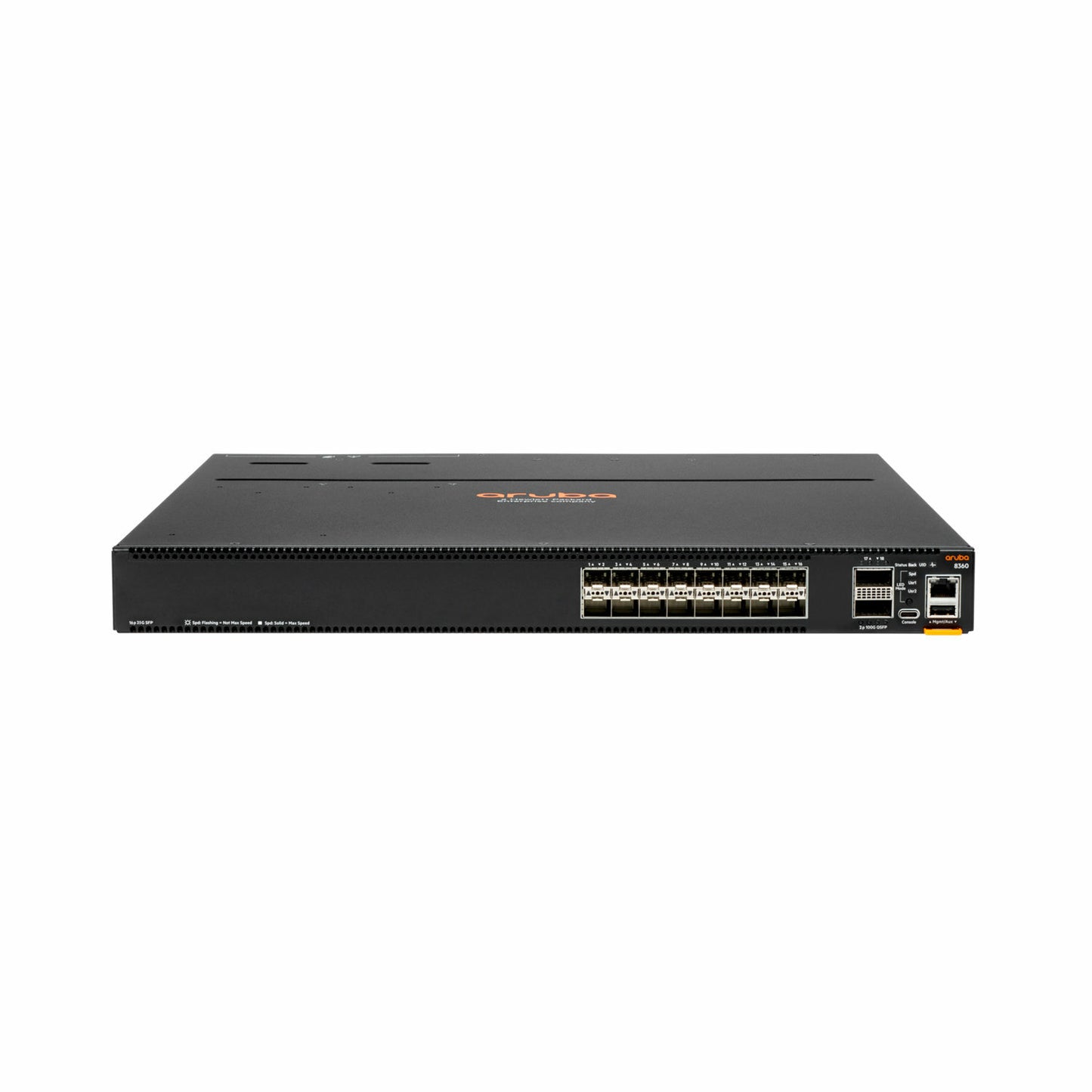

Photo is for illustration purposes only. Actual product may be different.
$36,390.00
$36,390.00
Sale Sold out
MSRP: $45,964.00
Shipping calculated at checkout.
  • Manufactured in Singapore for quality assurance
  • TAA-compliant for deployment in government or sensitive environments
  • Classified under Networking > Switch for high-performance traffic control
  • Bundle model identifier suggests integrated power and port configurations

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • TAA compliance makes it suitable for government and enterprise contracts.
  • Bundle configuration likely reduces setup complexity and ensures hardware compatibility.
  • Part of the Aruba 8360 series, known for high performance and robust enterprise networking features.

Product Overview

The HP Aruba 8360-16Y2C Prt2Pwr3F2PS Bdl AR en switch (part number JL702A#ARM) is a robust networking solution tailored for enterprise-level performance and efficiency. Manufactured in Singapore and TAA-compliant, it supports secure deployment in government and regulated sectors. The bundle configuration suggests a pre-defined assembly that likely combines critical port density and power redundancy features—ideal for core or aggregation switching requirements in campus or data center networks.

While complete technical specifications are not provided, the Aruba 8360 series is typically optimized for cloud-era agility and automation, offering high throughput and flexible interface combinations. This model may include support for features such as advanced Layer 2/3 protocols, telemetry, and network analytics, but these capabilities cannot be confirmed from the current data.

Organizations looking for scalable infrastructure will benefit from Aruba’s proven reliability and the integrated approach this switch offers. Its inclusion in the Networking > Switch category underscores its role in enabling efficient traffic management, network segmentation, and performance optimization across multiple applications and users.

Specifications

Product Overview
Product Type Managed Layer 3 Switch
Series Aruba CX 8360 Series
Model 8360-16Y2C v2 Bundle
Part Number JL702A#ARM
Form Factor 1U Rack-mountable
Power Supplies Included 2x Power Supplies (PSU)
Fans Included 2x Fan Trays
Switching Capacity 2.4 Tbps
Forwarding Rate 1,190 Mpps
Weight 7.9 kg (17.4 lb)
Power Consumption 142 W (typical), 184 W (maximum)

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, CB, CE, FCC, VCCI, BSMI, RCM, RoHS, WEEE
Safety and Emissions Compliance EN 60950, EN 55032 Class A

Advanced Security Features
Access Control 802.1X, MAC authentication, Web authentication
DHCP Snooping Yes
Dynamic Segmentation Yes
MACsec Encryption Yes (on supported ports)
Policy-Based Automation Yes via Aruba ClearPass

Interfaces
10/25G SFP28 Ports 16
40/100G QSFP28 Ports 2
Management Ports 1x RJ-45 serial console, 1x RJ-45 out-of-band management, 1x USB
Stacking Ports Supported via QSFP28 interfaces
Ethernet Speed Support 10/25/40/100 Gbps
MAC Address Table Size 128,000 entries
Buffer Size 32 MB

Physical & Environmental
Dimensions (W x D x H) 43.98 x 50.8 x 4.39 cm (17.32 x 20 x 1.73 in)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% (non-condensing)
Acoustic Noise 58.5 dB at 25°C
Heat Dissipation 627.3 BTU/hr (maximum)

Cloud Management & Licensing
Cloud Management Aruba Central (optional)
On-Prem Management Aruba NetEdit, CLI, Web UI, REST API
Licensing Model Perpetual or subscription-based (features dependent)
Telemetry & Analytics Built-in network analytics and Aruba Network Insights support
