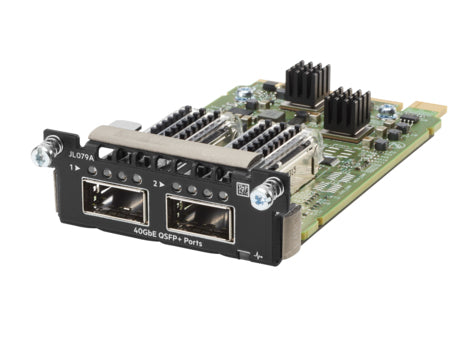

HP Stackable 2-Port 40GbE QSFP+ Module JL079A

VENDOR: HP Mfg Part#: JL079A UPC#: 888793596654
1 2
Photo is for illustration purposes only. Actual product may be different.
$5,742.00
$5,742.00
Sale Sold out
MSRP: $7,253.00
Shipping calculated at checkout.
  • - Two QSFP+ ports supporting 40 Gigabit Ethernet each
  • - Aggregate data rate of up to 80 Gbps
  • - TAA compliant for government and regulated industry use
  • - Compact form factor (2.92" W x 5.09" D x 1.09" H)
  • - Manufactured in Singapore
  • - Designed for HP networking infrastructure

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Delivers ultra-high-speed 40GbE performance to support data-intensive enterprise applications
  • - TAA compliance ensures suitability for federal and regulated industry deployments
  • - Compact and modular design integrates easily with HP switch systems for network scalability

Product Overview

The HP Stackable 2-Port 40GbE QSFP+ Module (JL079A) enables high-performance 40 Gigabit Ethernet connectivity through two QSFP+ ports, delivering up to 80 Gbps total bandwidth. It is TAA-compliant and ideally suited for data-intensive applications like virtualization and large-scale storage networking. With compact dimensions and easy integration into HP network systems, the module supports scalable, high-speed architectures while maintaining seamless compatibility with HP infrastructure components.

Specifications

Product Overview
Product Type Network module
Form Factor QSFP+
Total Bandwidth 80 Gbps
Power Requirements Requires compatible HP switch chassis for power
Weight Approx. 0.3 lb (0.136 kg)

Physical & Environmental
Width 2.92 in (7.42 cm)
Depth 5.09 in (12.93 cm)
Height 1.09 in (2.77 cm)
Operating Temperature Range 0°C to 45°C (32°F to 113°F)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
Operating Humidity Range 15% to 95% (non-condensing)
Storage Humidity Range 15% to 95% (non-condensing)

Cloud Management & Licensing
Supported Management Interface Managed via compatible HP switch software
Licensing Requirements No additional licenses required for module operation
Cloud Integration Compatible with Aruba Central when installed in supported chassis

Interfaces
Interface Type QSFP+
Number of Ports 2
Data Link Protocol 40 Gigabit Ethernet
Data Transfer Rate 40 Gbps per port
Total Throughput 80 Gbps aggregate
Port Connector Type QSFP+

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications RoHS, REACH
EMC Standards EN 55022 Class A, EN 55024
Safety Standards UL 60950-1, IEC 60950-1, EN 60950-1

Advanced Security Features
Module Security Relies on underlying chassis security features
Secure Firmware Firmware validated through switch OS
Access Control Hardware-based port control via parent switch
