| Product Type | Thin Client |
| Model | t540 |
| Form Factor | Thin Client |
| Processor Type | AMD Ryzen Embedded |
| Processor Model | R1305G |
| Processor Manufacturer | AMD |
| Processor Core Count | 2 |
| Processor Clock Speed | 1.5 GHz |
| L3 Cache | 4 MB |
| Installed RAM | 8 GB |
| Max Supported RAM | 16 GB |
| RAM Technology | DDR4 |
| Flash Storage Capacity | 64 GB |
| Max Flash Storage Supported | 512 GB |
| Graphics Processor | AMD Radeon Vega |
| Audio Output | Internal amplified speaker system |
| Input Device Support | Keyboard, Mouse |
| Operating System | Microsoft Windows 10 IoT Enterprise |
| Power Supply Type | External Power Adapter |
| Warranty | 3-year limited warranty |

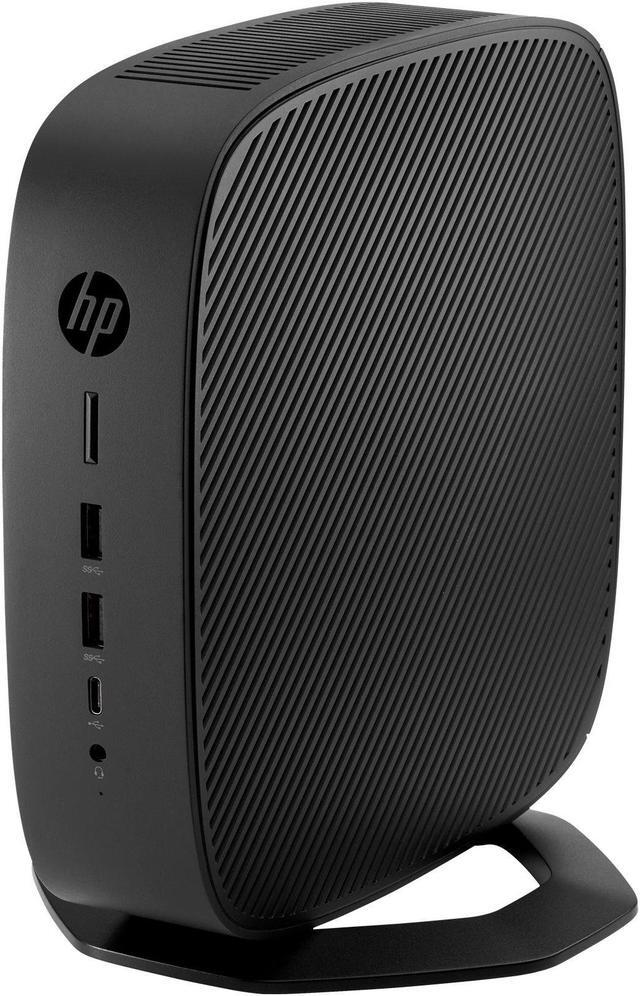

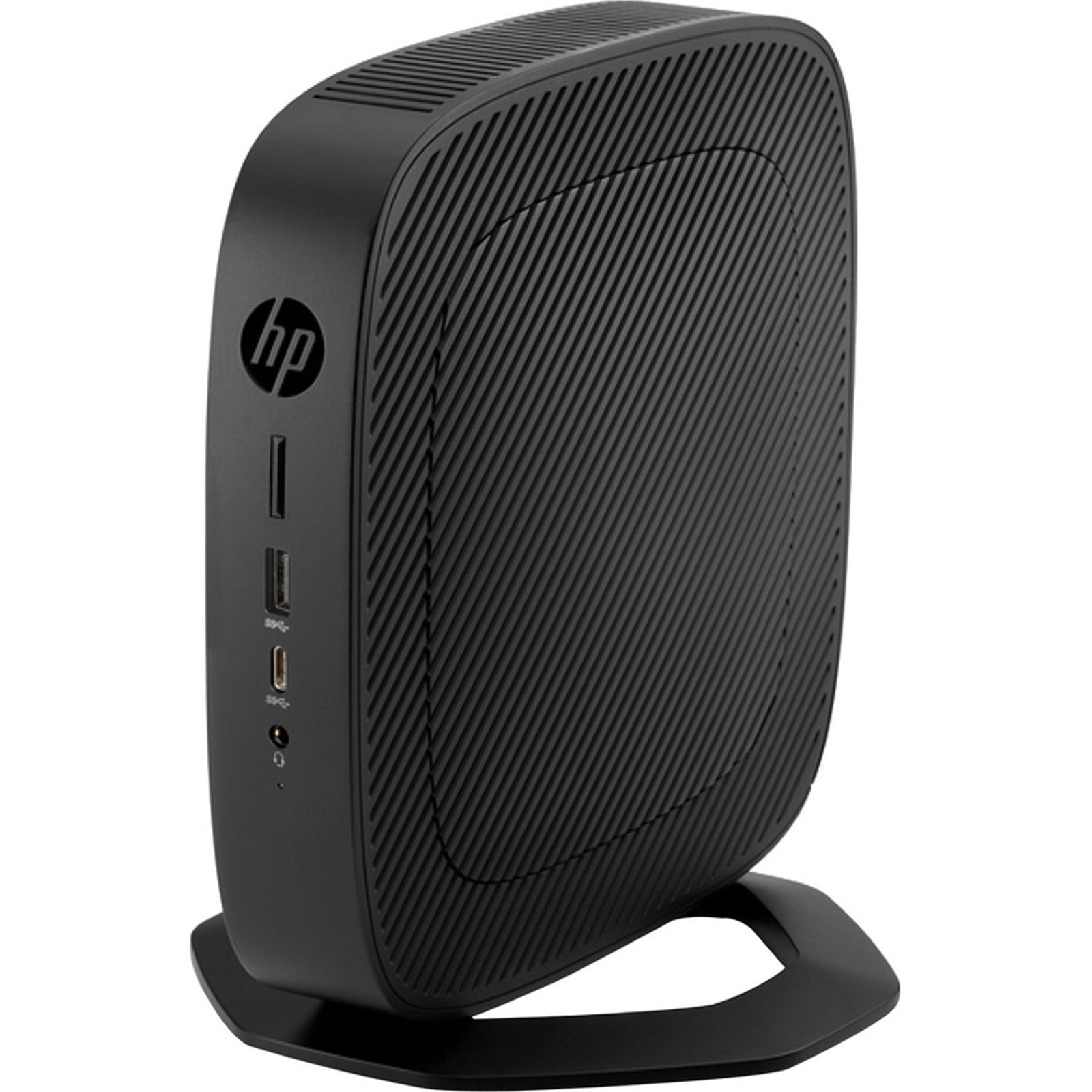

HP t540 Thin Client, AMD R1305G, 8GB RAM, 64GB Flash, Win10 IoT
Photo is for illustration purposes only. Actual product may be different.
Regular price
$656.00
Regular price
Sale price
$656.00
Unit price
per
MSRP: $716.00
Shipping calculated at checkout.
Couldn't load pickup availability
- AMD Ryzen Embedded R1305G dual-core processor at 1.5 GHz
- 8GB DDR4 RAM, expandable up to 16GB
- 64GB internal flash memory with support up to 512GB
- Dual DisplayPort 1.2 outputs and integrated AMD Radeon Vega graphics
- Comprehensive ports: USB-A, USB-C, RJ-45 Ethernet, headphone/mic combo
- Advanced security: AMD Memory Guard, UEFI Secure Boot, TPM, cable lock slot
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Designed for high-reliability enterprise deployments with trusted AMD hardware and advanced system-level security.
- Flexible and scalable memory and storage (up to 16GB RAM and 512GB flash) supports evolving IT infrastructure needs.
- Environmentally conscious with Energy Star certification and EPEAT Silver registration, providing energy and compliance benefits.
Product Overview
The HP t540 Thin Client is a versatile and secure endpoint computing solution, purpose-built for enterprise environments that demand performance, manageability, and reliability. Powered by the AMD Ryzen Embedded R1305G dual-core processor running at 1.5 GHz, and complemented with 8GB DDR4 RAM and 64GB of flash memory, the t540 is ideal for VDI and cloud-based applications. The integrated AMD Radeon Vega graphics engine supports up to two displays via dual DisplayPort 1.2 outputs, enabling immersive and efficient multitasking workflows.
From a connectivity perspective, the t540 is equipped with a wealth of I/O ports including USB-A, USB-C, and RJ-45 Ethernet, ensuring seamless peripheral integration and high-speed data transfer. Enhanced system security is embedded from the ground up, incorporating AMD Memory Guard, UEFI Secure Boot, and a dedicated Trusted Platform Module (TPM), offering enterprise-grade protection for sensitive data and preventing unauthorized access. The device is Energy Star certified and EPEAT Silver registered, reflecting its energy efficiency and environmental compliance.
HP’s thoughtful configuration in the t540 includes a pre-installed Windows 10 IoT Enterprise OS, ensuring compatibility with modern IT infrastructure while maintaining hardened security protocols. The included 3-year limited warranty and support further strengthen the t540's promise of long-term reliability and ROI for businesses seeking centralized control with reduced exposure to endpoint threats.
Specifications
Product Overview
Wireless Features
| Wireless Capability |
Compliance & Origin
| Country of Origin | Mexico |
| TAA Compliant | Yes |
| ENERGY STAR Certified | Yes |
| EPEAT Level | Silver |
| EPEAT Registration | EPEAT registered |
| RoHS Compliance | Yes |
| Certifications | CE, FCC, UL, VCCI, KCC |
Advanced Security Features
| TPM | Trusted Platform Module (TPM) 2.0 |
| Secure Boot | UEFI Secure Boot |
| Memory Encryption | AMD Memory Guard |
| Physical Security | Cable lock slot |
Interfaces
| Front Interfaces | 1 headphone/microphone combo; 1 SuperSpeed USB Type-A (5Gbps); 1 SuperSpeed USB Type-C (5Gbps) |
| Rear Interfaces | 1 RJ-45; 2 DisplayPort 1.2; 2 SuperSpeed USB Type-A (5Gbps); 1 AC power; 2 USB 2.0 Type-A |
| USB Ports Total | 7 |
| USB Type-C Ports | 1 |
| USB Type-A SuperSpeed Ports | 3 |
| USB 2.0 Ports | 2 |
| Display Outputs | 2 x DisplayPort 1.2 |
| Audio Jack | 1 x Combo headphone/microphone 3.5mm jack |
| Ethernet Port | 1 x RJ-45 |
Physical & Environmental
| Width | 1.38 in |
| Height | 7.87 in |
| Depth | 7.87 in |
| Mount Options | VESA mount supported (mounting hardware sold separately) |
| Operating Temperature Range | 10 to 40°C (50 to 104°F) |
| Non-Operating Temperature | -30 to 60°C (-22 to 140°F) |
| Operating Humidity Range | 10% to 90% (non-condensing) |
| Non-Operating Humidity | 5% to 95% (non-condensing) |
| Cooling Method | Fanless (passive cooling) |
Cloud Management & Licensing
| Preinstalled OS | Windows 10 IoT Enterprise |
| HP Management Tools | HP Management Console, HP Device Manager (optional download) |
| VDI Compatibility | VMware, Citrix, Microsoft RDP compatible |
